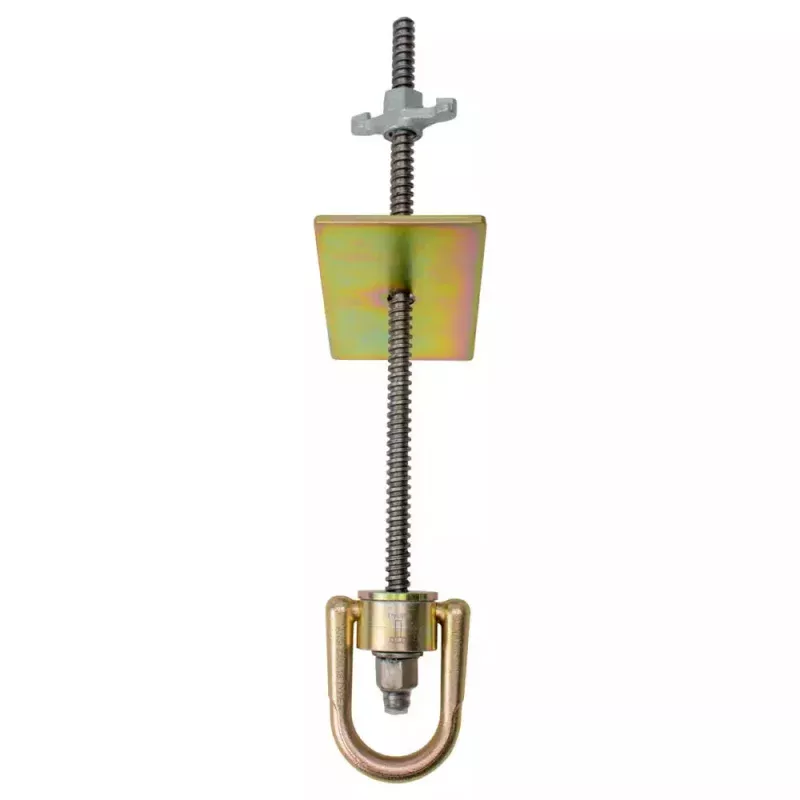

10K Swivel Anchor & Back Plate

The Back Plate Anchor is designed for use on reinforced cinder block, chillers, metal structures or AC unit walls from 4 to 12.

This plate assembly includes the 10K Swivel anchor and fastener.

Features:

• Versatile use
• 5/8″ bolt and wingnut
• Maximum span up to 12″
• Use with 10K Swivel Anchor

Specifications:

Materials: Zinc-plated steel Weight: 1.9 lbs. (839 g) Plate Dimensions: 6″ x 4″ x 1/4″ Minimum Breaking Strength: 10,000 lbs. ANSI Weight Capacity: 130-310 lbs. (59-141 kg) OSHA Weight Capacity: Up to 420 lbs. (191 kg) ANSI Standards: Z359.18-2017 Type A OSHA Standards: 1926.502, 1910.140, 1910.66
