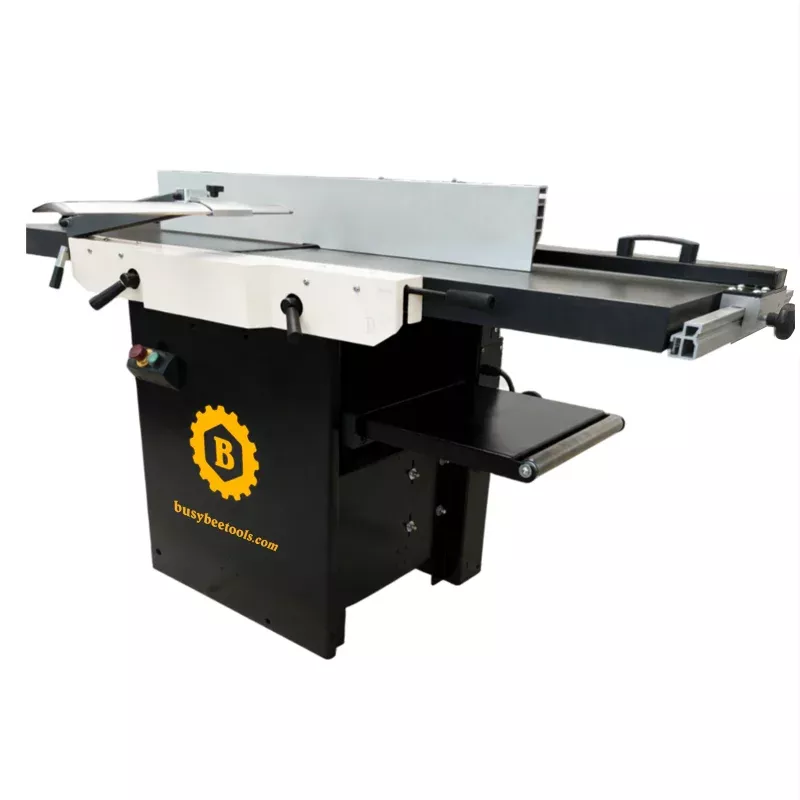

16 JOINTER PLANER HELICAL COMBO

The BBJP16 16″ Premium Jointer Planer Combo is built to serve as a central machine in serious woodworking environments where capacity, precision, and reliability are critical. Designed to handle wider and thicker stock with ease, this machine combines jointing and planing functions into a single, heavy-duty platform without compromising performance. The 16″ cutting width significantly expands your capability, allowing you to process larger boards and panels in fewer passes, while the helical cutterhead with 72 x 4-sided carbide inserts ensures a consistently smooth finish across a range of materials. Powered by a 4 HP motor and supported by extended tables and a substantial overall weight, the BBJP16 delivers stable, accurate results even under demanding workloads. This machine is purpose-built for users who require dependable performance, efficient material processing, and precision outcomes on every pass.

Key Features

16″ Cutting Width CapacityProcesses wider boards in a single pass for improved efficiency

Helical Cutterhead with 72 Carbide InsertsFour-sided carbide inserts deliver consistent cutting performance and extended tool life

4 HP Motor (220V)Provides stable power for jointing and planing operations

Maximum Depth of Cut: 1/8″ Controlled material removal for precision work

Extended Jointer Table (70-5/8″)Supports longer stock for improved straightness and accuracy

Planer Feed Rate: 23 ft/min (7 m/min)Consistent material throughput

Maximum Planing Height: 8-7/8″ Handles thicker stock

Adjustable Fence (045)Precise angle jointing

4-1/2″ Dust PortSupports efficient chip extraction with 750 CFM minimum requirement

Heavy-Duty Build (859.8 lbs / 390 kg)Reduces vibration for stable operation

Specifications

Motor: 4 HP, 220V

Motor Speed (No Load): 3400 RPM

Current / Frequency: 20 A, 60 Hz

Cutterhead Diameter: 2-4/5″

Cutterhead Speed: 6000 RPM

Cutterhead Type: Helical with 72 four sided carbide inserts

Maximum Cutting Width: 16″

Maximum Depth of Cut: 1/8″

Maximum Planing Height: 8-7/8″

Planer Table Size: 16″ x 23-1/2″

Feed Speed: 23 ft/min (7 m/min)

Jointer Table Size: 16-1/2″ x 70-5/8″

Jointer Table Height: 33-1/2″

Fence Tilt Range: 045

Dust Port Diameter: 4-1/2″

Dust Collection Requirement: Minimum 750 CFM

Noise Level (No Load):98 dB

Noise Level (With Load):107 dB

Overall Dimensions (L x W x H): 36″ x 70-5/8″ x 39-1/2″

Base Size: 24-3/4″ x 23-1/2″

Net Weight: 859.8 lbs (390 kg)

Comes With:

• Helical Cutterhead with 72 four-sided carbide inserts
• 4 1/2″ dust port
• User Manual
• 2 Year Warranty

Built for Serious Work & Designed for Precision. Step up to true shop capability with the BBJP16. This 16 jointer planer combo delivers the power, capacity, and precision demanded by serious woodworkers and small production environments. With a heavy-duty build, helical cutterhead, and expanded working surface, this machine is designed to handle larger stock with ease without compromising accuracy.

16 Wide Capacity: Handle Bigger Material with Confidence
With a full 16 cutting width, the BBJP16 allows you to joint and plane wider boards in a single pass. Perfect for slab work, wide panels, and larger projects, it eliminates the need for multiple setups and saves valuable time in the shop.

Helical Cutterhead with Carbide Inserts Superior Finish. Quieter Operation. Easier Maintenance.
The helical cutterhead features 72 four-sided carbide inserts, delivering a smoother finish with reduced tear-out even on difficult grain. When an insert dulls, simply rotate it. No knife setting, no downtime, no hassle.

Power You Can Rely On
Equipped with a 4 HP motor, the BBJP16 delivers consistent cutting performance across hardwoods and larger stock. Whether you’re jointing rough lumber or planing to final thickness, this machine maintains power and stability under load.

Extended Jointer Bed Accuracy Over Length
The extra-long jointer table over 70 in length provides superior support for longer boards, ensuring straight, flat results from end to end. This added surface area translates directly into better accuracy and more control, especially on larger workpieces.

Precision Fence System Reliable Angle Control
The adjustable fence tilts from 0 to 45, allowing for accurate bevel jointing and edge work. Solid, repeatable positioning ensures consistency across every cut.

Heavy-Duty Construction Built to Stay Stable
Weighing in at nearly 860 lbs, the BBJP16 is designed to minimize vibration and maximize stability. The solid construction keeps the machine planted during operation, giving you the confidence to take precise, repeatable cuts. This is not a light-duty comboits built for real work.

Built for Growing Shops
Whether you’re upgrading your current setup or building out a more capable workspace, the BBJP16 delivers the performance, reliability, and capacity needed to take on larger, more demanding projects with confidence.
