343, Junior No. 343 Pow-R-Arm

Details

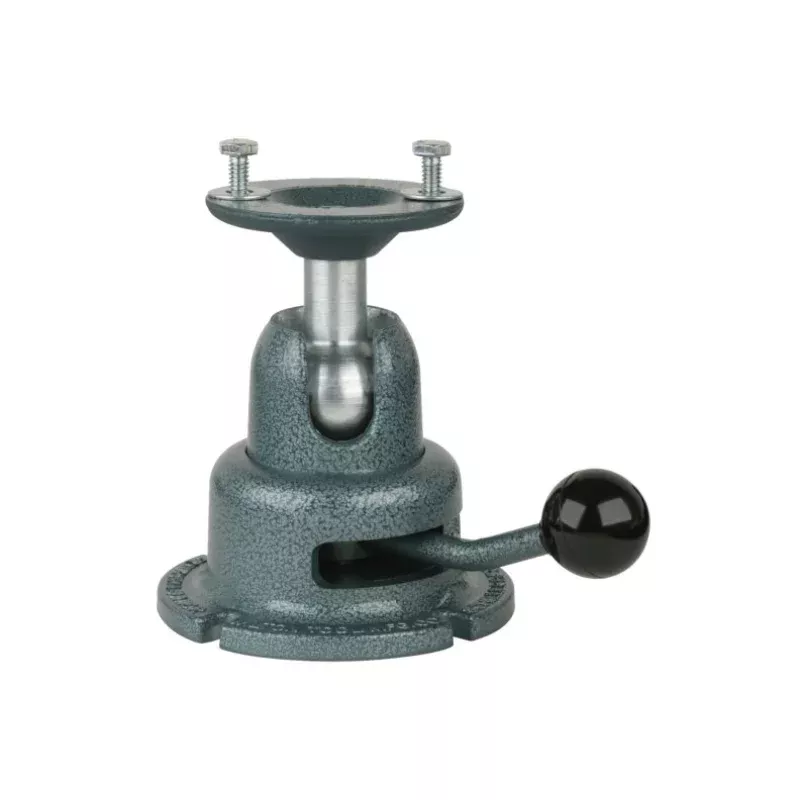

The 343 Pow-R-Arm Junior provides fast on-off action with horizontal moving lock handle.

Features

• 3″ diameter mounting pad with two 1/4 – 20 holes 180apart. Four slotted equally spaced 9/32″ diameter mounting holes
• Available in a wide range of models for every job size, Pow-R-Arms are perfect for any application-at a permanent workstation, assembly line or workbench
• Body is cast aluminum with steel parts
• Fast on-off action with horizontal-moving lock handle
• Pow-R-Arms increase productivity by bringing the work to the worker-which helps reduce fatigue, back injury and other health problems
• Reposition the work piece quickly and accurately with the flexibility of Pow-R-Arms wrist action, eliminating time-consuming clamping and unclamping
• Wilton Pow-R-Arms: The full swiveling, 360 dead-lock work positioners put the workpiece where you want it and holds it tight for hands-free production

Specifications

Stock Number 16180 Base Diameter (In.) 4-1/4 Diameter Bolt Circle (In.) 2.25 Extended Height (In.) 5 Prop 65 Cancer Workholding Capacity 30
