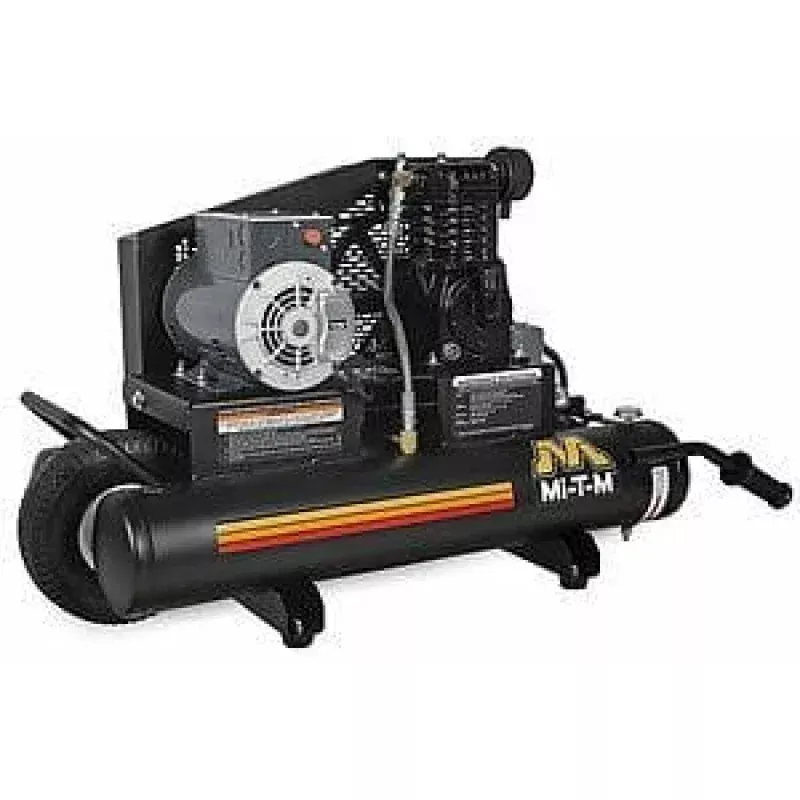

8-Gallon Single Stage Electric Air Compressor – AM1-PE02-08M

The popular 8-gallon electric air compressor features advanced technology and performance so you can power up everything from drills to grinders and paint guns

Its portability makes it a great choice on many jobsites.

Compressor Pump:Splash lubricatedStainless-steel braided discharge hoseLarge canister intake filterOil level sight indicator

Motor:Auto start/stop – continuous run optionalThermal overload motor protection

Frame:Powder coated 8-gallon twin tank receivers3/16-inch base plate to reduce vibration16-gauge powder coated two-piece belt guard10-inch flat-free tire

Components:Regulator and two gauges for tank and outlet pressureManual drain valves for proper maintenanceIndustrial grade pressure switch10-inch fly wheelStart/stop control set at 95 to 125-PSI (Not on continuous run models)

Specifications

• CFM @ 90 PSI

  9.2

• Horsepower/Motor

  2.0 HP, 120V, 18.8A

• Compressor

  Single Stage, Cast Iron

• Tank Size

  8 gallon

• Plug Type

  NEMA 5-20P

Weights & Dimensions

• Net Weight

  183.00 lbs.

• Shipping Weight

  203.00 lbs.

• Length

  44.50 in.

• Width

  18.50 in.

• Height

  25.00 in.
