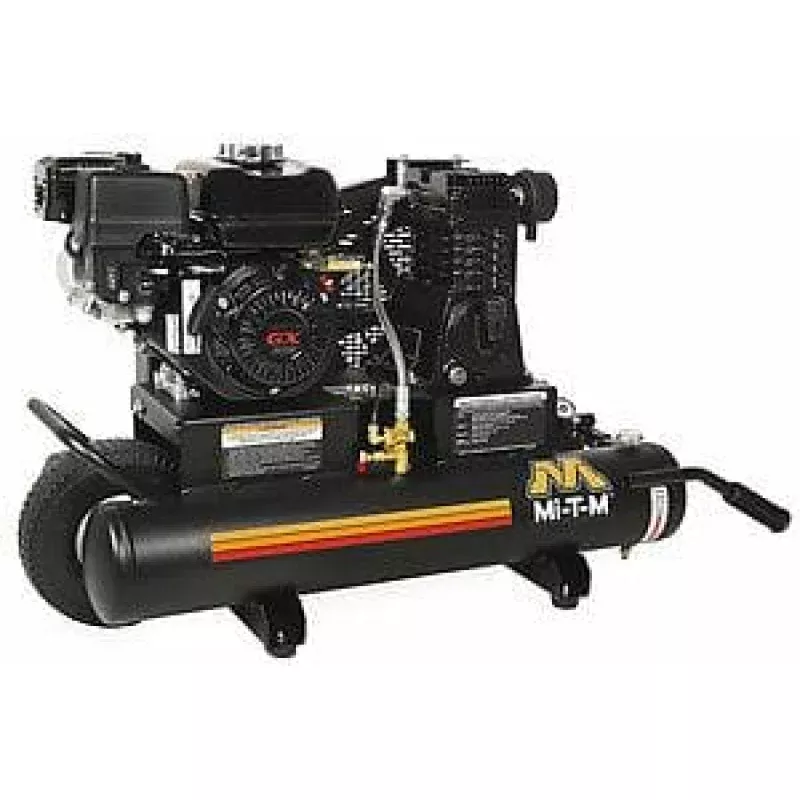

8-Gallon Single Stage Gasoline Air Compressor – AM1-PH65-08M

8-Gallon Single Stage Gasoline Air Compressor for portable and effective air compression designed to power hand tools

Contractors love the portability of this wheelbarrow style 8-gallon air compressor. It is designed for maximum efficiency to provide essential air power for multiple tools around most construction sites.

Compressor Pump:Splash lubricatedStainless-steel braided discharge hoseLarge canister intake filterOil level sight indicator

Frame:Powder coated 8-gallon twin tank receivers3/16-inch base plate to reduce vibration16-gauge powder coated two-piece belt guard10-inch flat-free tire

Components:Regulator and two gauges for tank and outlet pressureManual drain valves for proper maintenance12-inch fly wheelQuality pilot valve unloader

Specifications

• CFM @ 90 PSI

  13.1

• Displacement/ Engine

  196cc Honda GX200 OHV

• Compressor

  Single Stage, Cast Iron

• Tank Size

  8 gallon

• Engine Idle Control

  Pneumatic

Weights & Dimensions

• Net Weight

  175.00 lbs.

• Shipping Weight

  200.00 lbs.

• Length

  44.50 in.

• Width

  18.50 in.

• Height

  27.00 in.

Options

• AX-0003 Manual Drain/Regulator/Metal Bowl

  Drains moisture from air system

• AX-0078 Stationary Option

  Converts the portable model to a stationary model, removes the wheel
