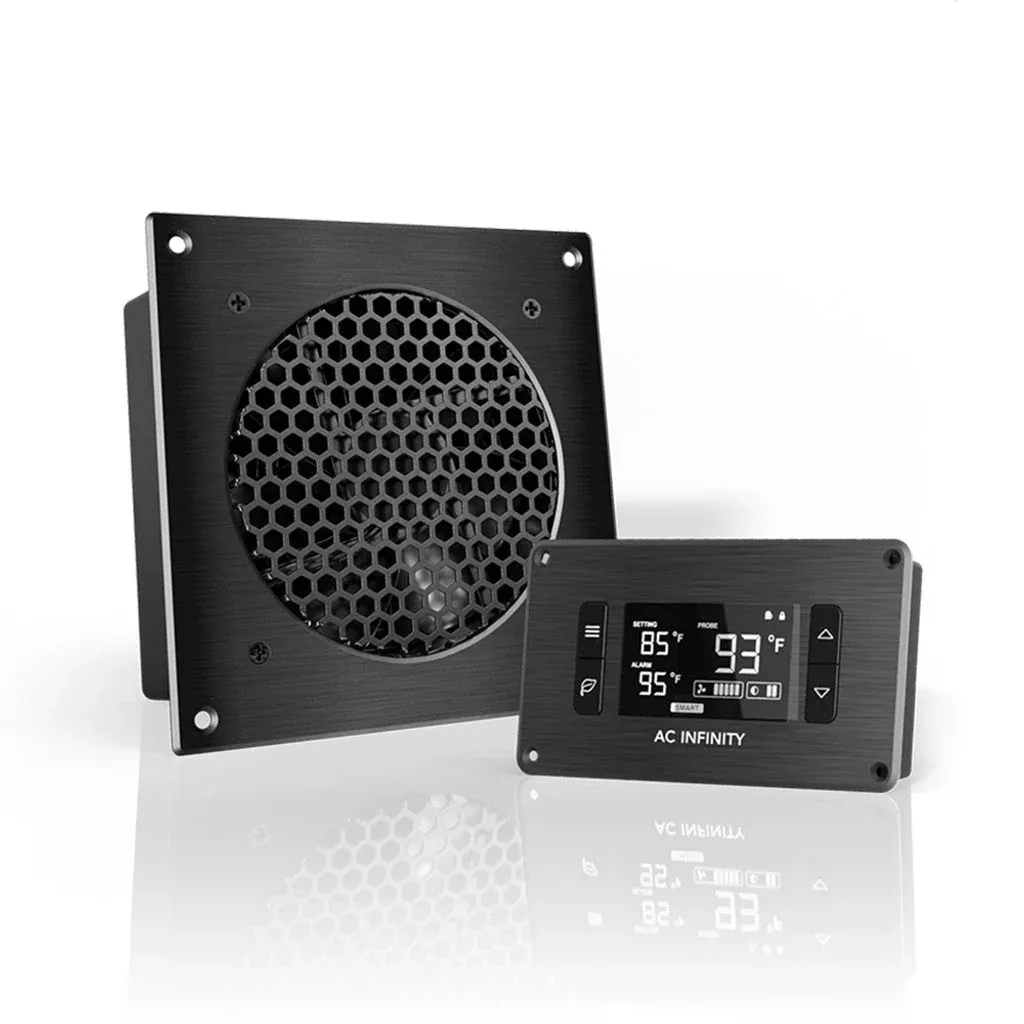

AIRPLATE T3, Quiet Cabinet Cooling Fan 6″ with Temperature Controller

About This Product

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

Key Features

• An ultra-quiet UL-certified fan system designed for cooling cabinets that requires minimal noise.
• Automated programming that self-adjusts cooling power in response to changing temperatures.
• Features a LCD display with an alarm system, display lock, six fan speeds, two buffer options, and memory.
• Fan and controller contain CNC machined aluminum frames with a modern brushed black finish.

Technical Specification

Total Dimensions6.30 x 6.30 x 1.30 in (16.0 x 16.0 x 3.3 cm)Backside Enclosure Dimensions4.88 X 4.88 in (12.4 x 12.4 cm)Required Mounting Hole5.04 x 5.04 in (12.8 x 12.8 cm)Hole to Hole Distance5.55 x 5.55 in (14.1 x 14.1 cm)Screw Hole SizeØ 0.197 in (Ø 0.5 cm)Cord Length72 in (6 feet)Total Airflow52 CFMTotal Noise18 dBAStatic Pressure1 mm-H2OOperating Voltage3 to 7V DCPower2.2 WCurrent0.44 AWall Adapter Input100 to 240V ACOperating Humidity35 to 85% RHOperating Temperature0 to 158°FFan BearingsDual BallFan Quality ApprovalsUL, CE, RoHS

Manuals

Airplate T3 Fan Cut out Template

Airplate Controller Cut out Template

Airplate T3 Manual
