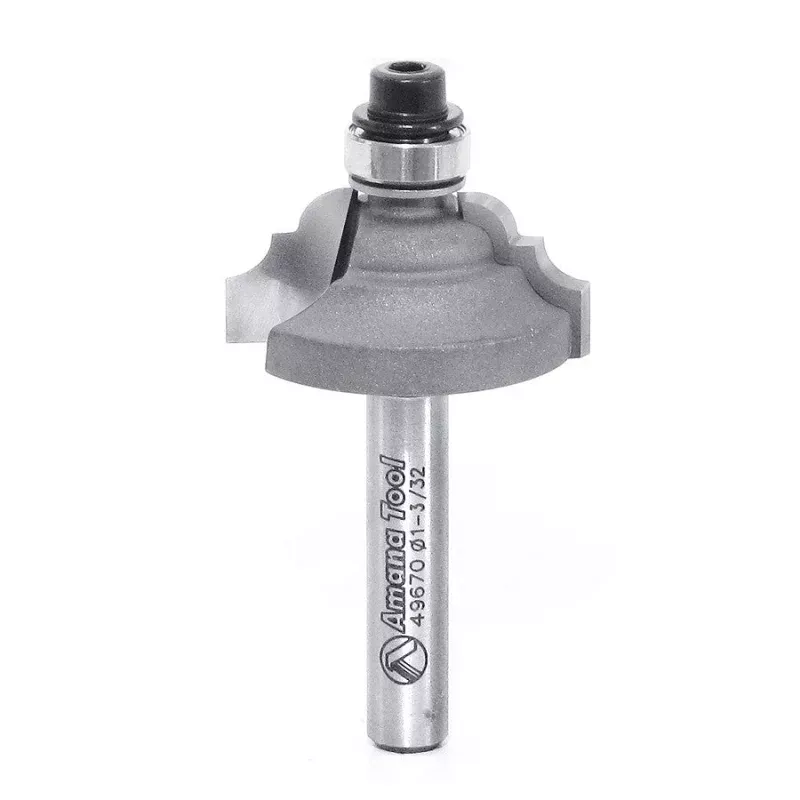

Amana Tool Classical Stile Bit 1/4 in Shank 49670

49670, Amana Carbide Tipped Classical Stile 1-3/32 Dia x 1/2 x 9/64 Radius x 1/4 Inch Shank

Our Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching “regular” bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4″ shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.

Specifications:

• Tool No. 49670
• Diameter (D) 1-3/32
• Radius (R) 9/64
• Cutting Height (B) 1/2
• B1 3/16
• Shank (d) 1/4
• Overall Length (L) 2
• Type Classical Stile
• Replacement Bearing 47702
• Flutes 2
