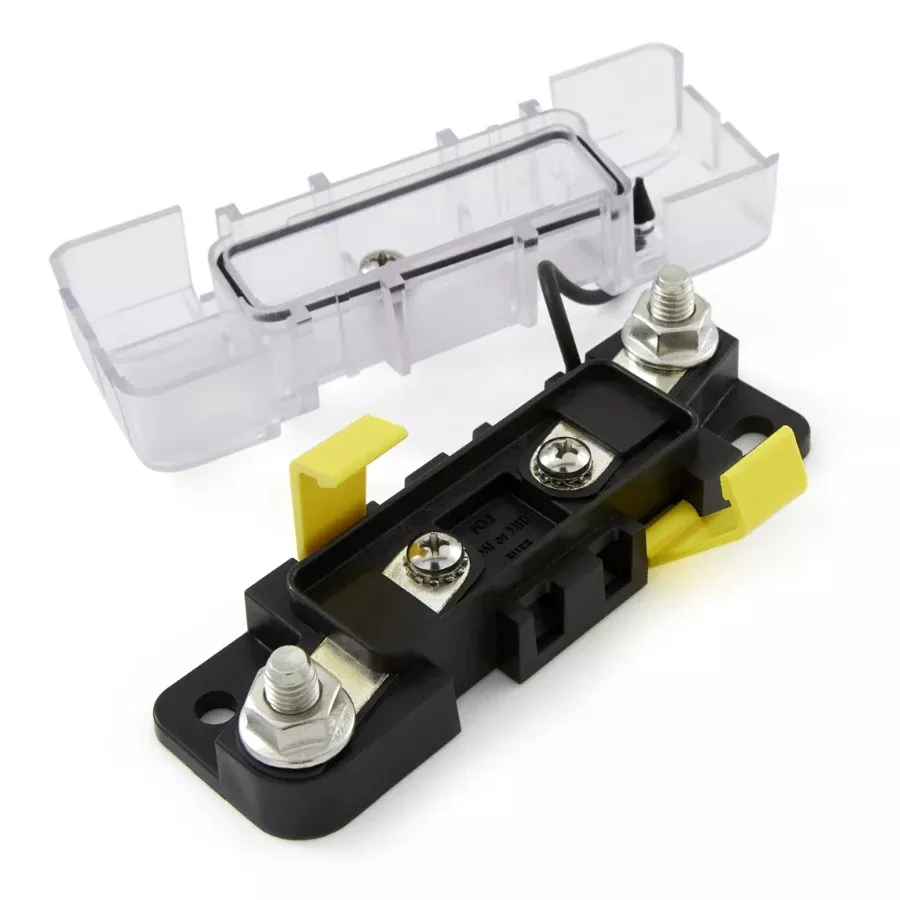

About This Product
Ignition protected for installation on gasoline or diesel vehicles/boats. 200A maximum rating using up to 4/0 size cable. Requires optional AMI / MIDI fuses which are sold separately.
Key Features
- Accepts 5/16″ (M8) ring terminals
- Insulating cover satisfies ABYC/USCG insulation requirements
- Insulating cover breakouts allow wire access in three directions
- Insert molded studs ensure secure fuse mounting
- Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
- UL 94-V0 base resists high heat
- Fuse sold seperately
Technical Specification
Maximum Voltage32V DCAmperage40A – 200A (AMI / MIDI fuses sold separately)Terminal Stud Size5/16″ (M8)Size5.05″ x 1.50″ x 1.65″ (with clear cover on)
No Documentation available.
