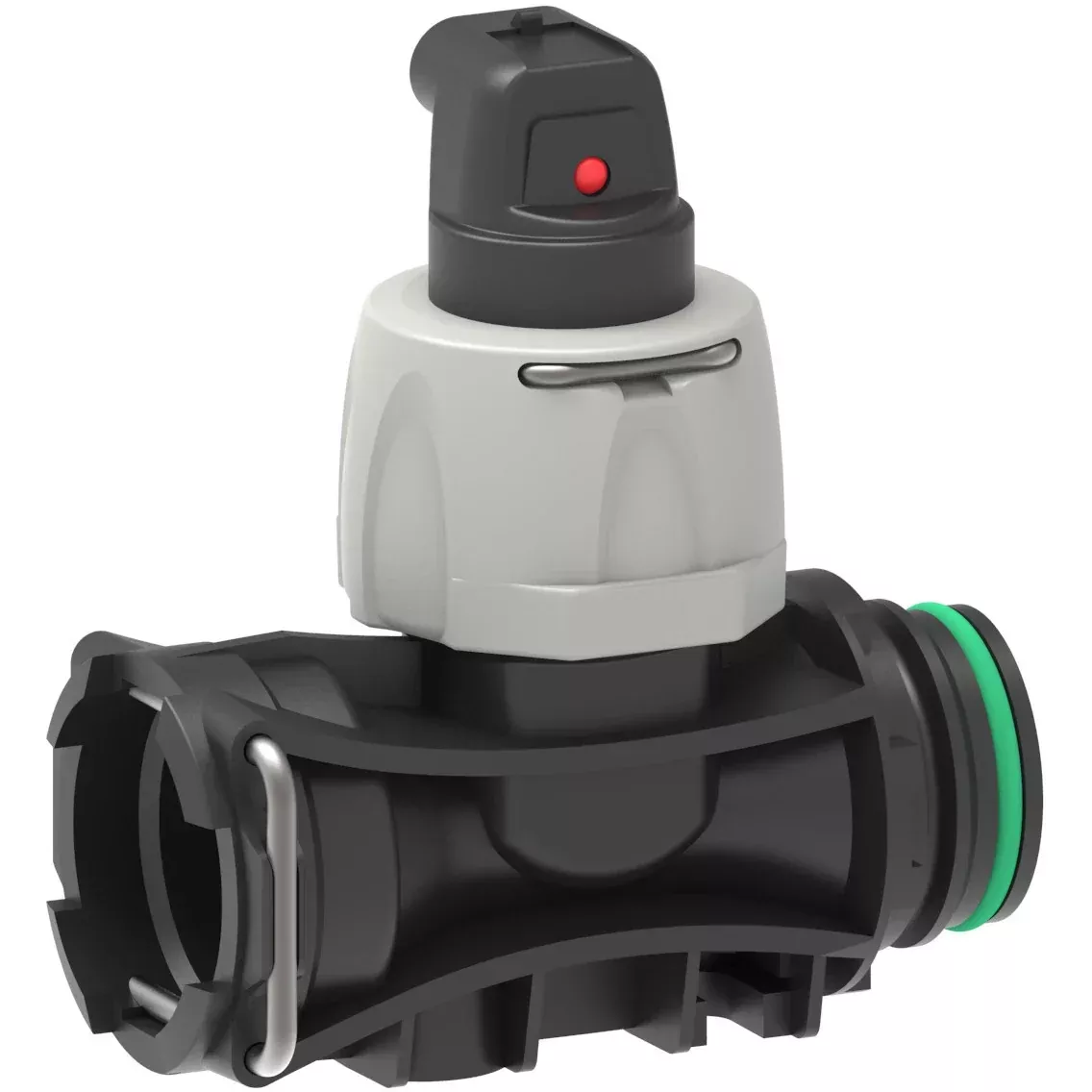

Arag Wolf Paddle Flowmeters are known for their “Twist” System – a Quick Release Design to Clean the Paddle easily. These are one of the Most Common Flowmeters used in Agricultural Spraying Applications. This Model has T5 Female x Male Ports and Measures Flow Rates from 5 – 100Lpm.
Benefits:
– No Mechanical Moving Parts inside the Pipe.
– Performances Independent from Fluid Density and Viscosity.
– Low Sensitivity to Turbulence.
– High Precision.
– Low Maintenance.
Features:
– Flow Rates: 5 – 100Lpm.- Working Pressure: up to 20 Bar.
– T5 Fork Connector for Control Units.
– Max Consumption: 300 mA.
– Flanged Fittings.
– Parts in contact with Fluid made of Polypropylene and Stainless Steel 316.
– Plug for Pulsed Output.
