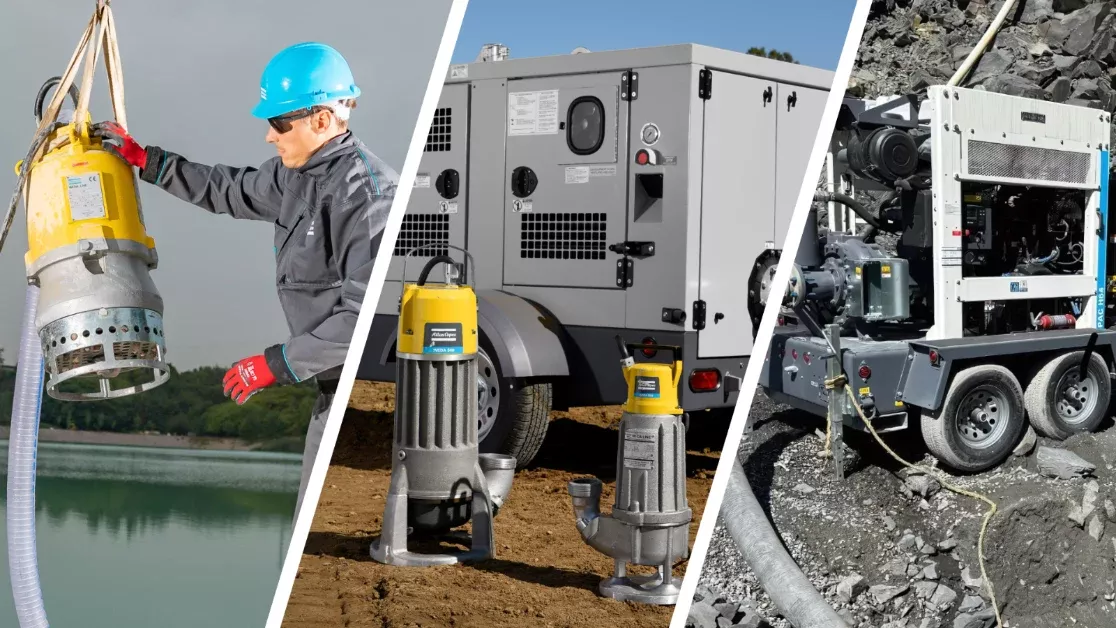

The Atlas Copco WEDA D10N is a 1.5 HP heavy-duty submersible drainage pump with a 2″ NPT discharge. CSA-certified for professional dewatering: utility excavations, slurry pits, and general construction site water removal.
Key Features
- 1.5 HP submersible motor — oil-filled, IP68
- 134 GPM max flow / 53 ft max head
- 2″ NPT discharge connection
- 0.16″ max solid pass-through — handles trash water
- Hardened impeller and stainless-steel wear plate
- Stainless-steel handle, double mechanical seal
- CSA / UL listed for North American use
- Multiple voltage options — see variants below
Ideal Applications
- Construction site dewatering
- Mining and tunneling water removal
- Flood and basement pump-out
- Wellpoint and pond transfer
- Industrial sump and process water
Specifications
| Model | WEDA D10N |
|---|---|
| Impeller / Head Class | standard |
| Horsepower | 1.5 HP |
| Max Flow | 134 gpm |
| Max Head | 53 ft |
| Shaft Speed | 3500 rpm |
| Rated Output | 1.1 kW |
| Max Power Input | 1.8 kW |
| Discharge | 2″ NPT |
| Max Solids | 0.16″ |
| Weight | 29 lb |
| Height | 15.6 in |
| Diameter | 7.3 in |
| Warranty | 12 months from start-up / 18 months from receipt (whichever comes first) |
| Country of Origin | Sweden / China assembly |
