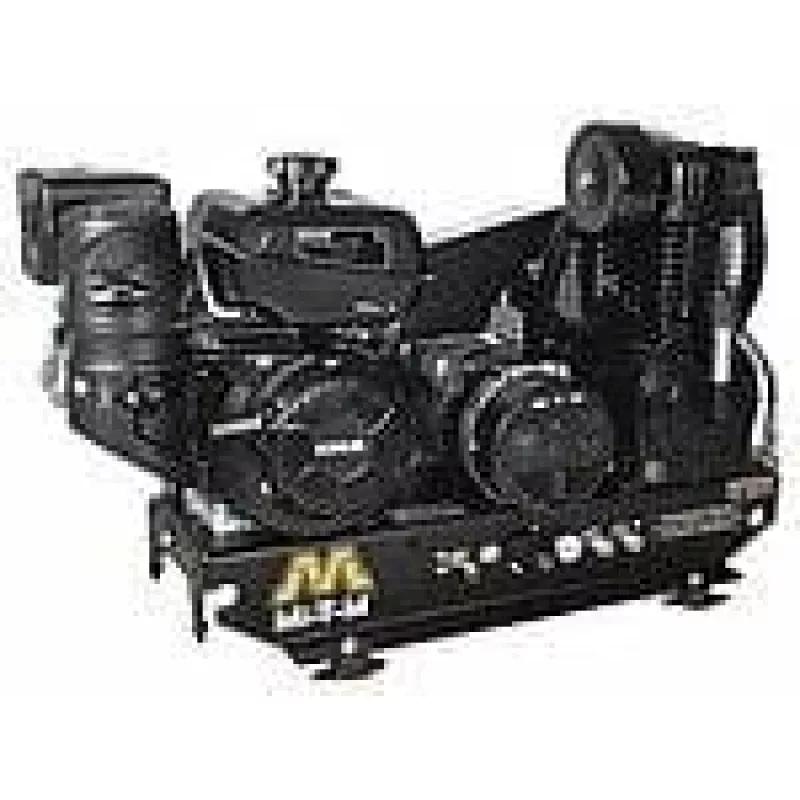

Base-Mount Two Stage Gasoline Combination – AG2-SK14-B

Base-Mount Two Stage Gasoline Combination – AG2-SK14-B

Increase your productivity by merging two vital pieces of equipment into one versatile machine. Ideal for every industrial application requiring both air and electrical power, you’ll save space and save money with one machine. Available in stationary, base-mount or portable. Choose the model that best fits your needs.

Compressor Pump:Cast iron compressor pumpSplash lubricatedStainless-steel braided discharge hoseLarge canister intake filterOil level sight indicator

Generator:Brushless alternatorTotal harmonic distortion (THD) less than 5%100% copper windingsComes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Frame:3/16-inch base plate to reduce vibration16-gauge powder coated two-piece belt guard

Components:Regulator and two gauges for tank and outlet pressureManual drain valves for proper maintenance12 or 16 -inch fly wheelQuality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator

Specifications

• CFM @ 90 PSI

  16.4

• CFM @ 175 PSI*

  15.7

• Alternator Wattage: Max. Output

  4000 watts

• Alternator Wattage: Cont. with Comp. On-Load

  2300 watts

• Alternator Wattage: Cont. with Comp. Off-Load

  3500 watts

• Receptacles

  (2) NEMA 5-20R; (1) NEMA L6-20R

• Displacement/ Engine

  429cc Kohler CH440 OHV

• Compressor

  Two Stage

Weights & Dimensions

• Net Weight

  325.00 lbs.

• Shipping Weight

  390.00 lbs.

• Length

  47.00 in.

• Width

  22.00 in.

• Height

  28.00 in.

Options

• AX-0063 Lifting Hook

  For easier portability

• AX-0071 Electric Start – Battery, Box and Cables Not Included

  For easy starting

• AX-0072 Electric Start – Battery Box and Cables Included, Battery Not Included

  For easy starting. **Note: Battery box cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information**
