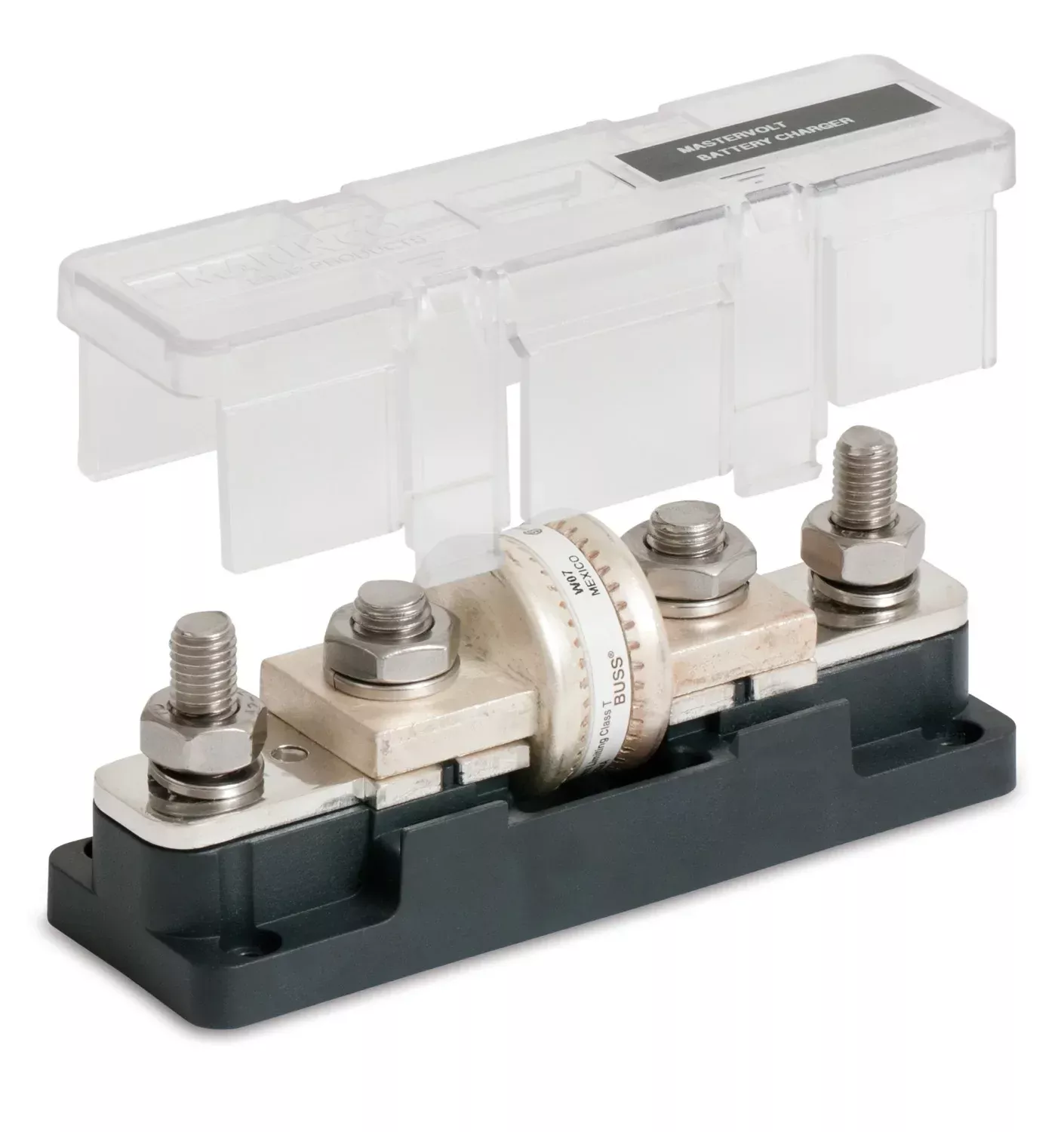

About this product
Providing high-capacity fusing, fast response and very high interrupt ratings (ANL up to 6,000 Amps, Class-T up to 20,000 Amps), these fuse holders are ideal for protecting today’s demanding onboard power electronics technology including inverters and battery chargers. They also protect wiring from short circuits. Pro Installer fuse holders’ durable construction allow fuses to run at maximum load.
Important Note
The fuse mounting stud measurements are different, depending on the variant
Key Features
- 225-400A = 10mm (3/8″)
- 400-600A = 12mm (1/2″)
- Radiused ends improve cable routing options
- Class-T: 225-400 Amp, 450-600 Amp models available
- Cable connection studs: 10mm (3/8″) studs
- Fuse mounting studs: 10mm (3/8″) 225-400A holder, 12mm (1/2″) 450-600A holder
- Fuse type: Class-T (JLLN / TJN / A3T)
- Maximum amperage: Determined by fuse sizing, either 400A or 600A 50V DC
- High temperature, fibre reinforced plastic base provides strength and chemical resistance
- Clear polycarbonate cover
- Tinned CDA102 Copper conductors
- Stainless steel studs, washers and nuts for longevity in the marine environment
- Metric threads
Technical Specification
Amperage225-400 / 450-600L x W x H6.1″ x 5.6″ x 1.8″Fuse Mounting Studs for 225-400A3/8″ (10mm)Fuse Mounting Studs for 400-600A12mm (1/2″)
