BuildPro Alpha 28 Cast Iron Clamping Squares, for 28mm Holes
Non Stock Item – Please allow a 2 week lead time on this product

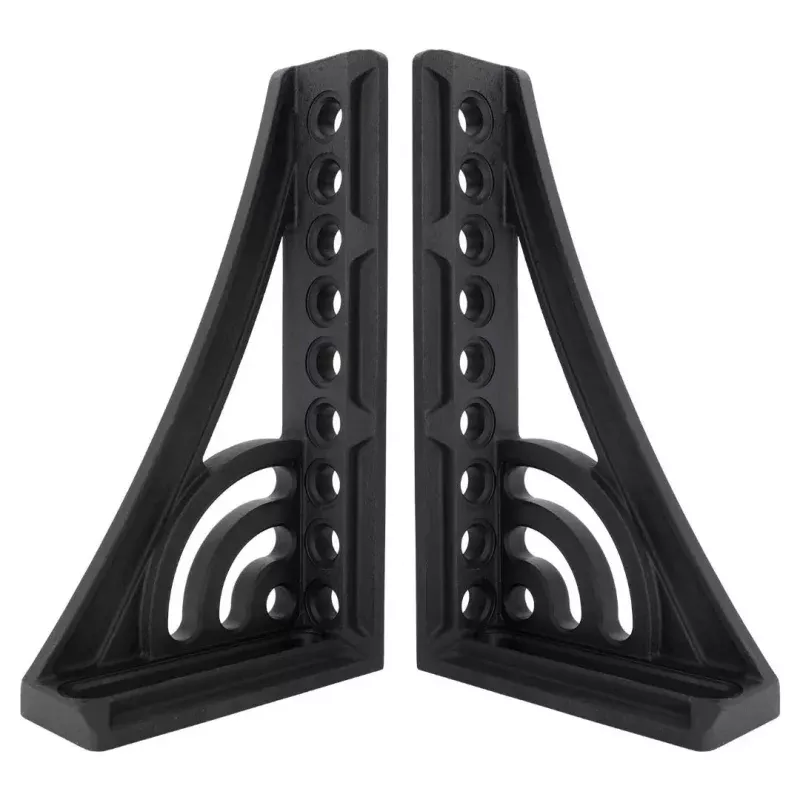

Cast Angle Squares are manufactured from high-quality ductile cast iron. Their larger size and more robust construction allow them to stop larger parts and bear heavier loads when used as a table extension.
Available Options and Part Numbers
| Part No. |
Name |
Length (mm) |
Width (mm) |
Height (mm) |
Thickness (mm) |
Weight (kg) |
| T28-23283 |
Cast Angle Square 275 – L |
175 |
50 |
275 |
25 |
6.0 |
| T28-23506L |
HD Square 500, L |
276 |
95 |
500 |
approx. 27 |
13.8 |
| T28-23506R |
HD Square 500, R |
276 |
95 |
500 |
approx. 27 |
13.8 |
| T28-23756L |
HD Square 750, L |
276 |
85 |
750 |
approx. 27 |
12.7 |
| T28-23756R |
HD Square 750, R |
276 |
85 |
750 |
approx. 27 |
12.7 |
