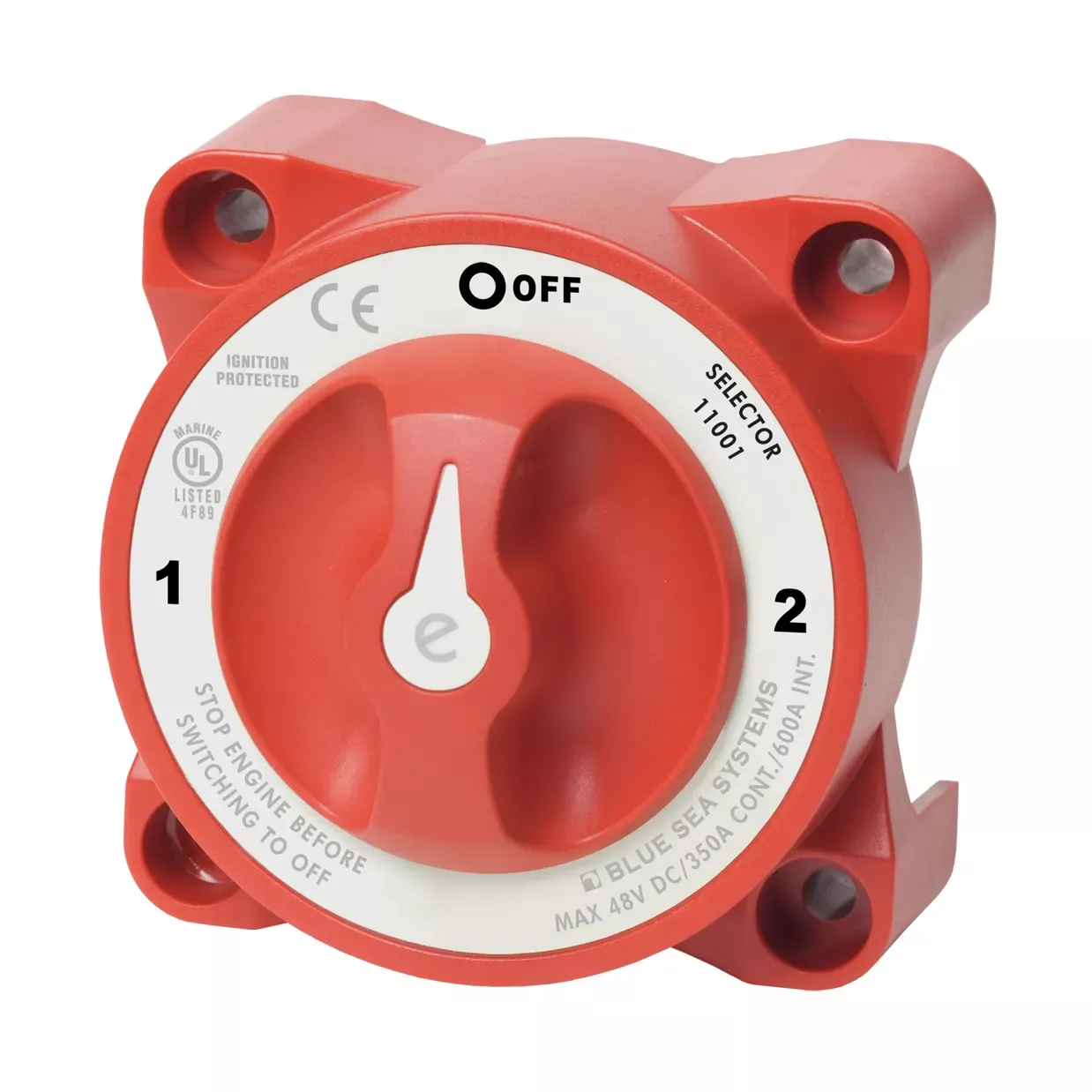

About this product
Alternator Field Disconnect (AFD) protects the diodes in the alternator in the event of the switch being switched to the OFF position while the engine is running.
350 Ampere Continuous Rating for inboard gasoline and diesel engines.
Key Features
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8″ (M10) ring terminals
• 7/8″ stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Case design allows surface or rear panel mounting options
• Rated at IP66 – withstands heavy seas, jets of water
• Fits most Perko and Guest low amperage battery swich hole patterns
• Label with international legends
• Tactile indicator conveys knob position by feel
Technical Specification
Cranking Rating (1 min)1000ABattery Inputs2Dimensions3.85″W x 3.85″H x 3.097″DMaximum Voltage32V DCTerminal Stud Length7/8″Battery CombineNoContinuous Rating350ACranking Rating (10 sec)2000AIntermittent Rating 600A(5 min)Switch Positions3Terminal Studs3/8″-16 (M10)
