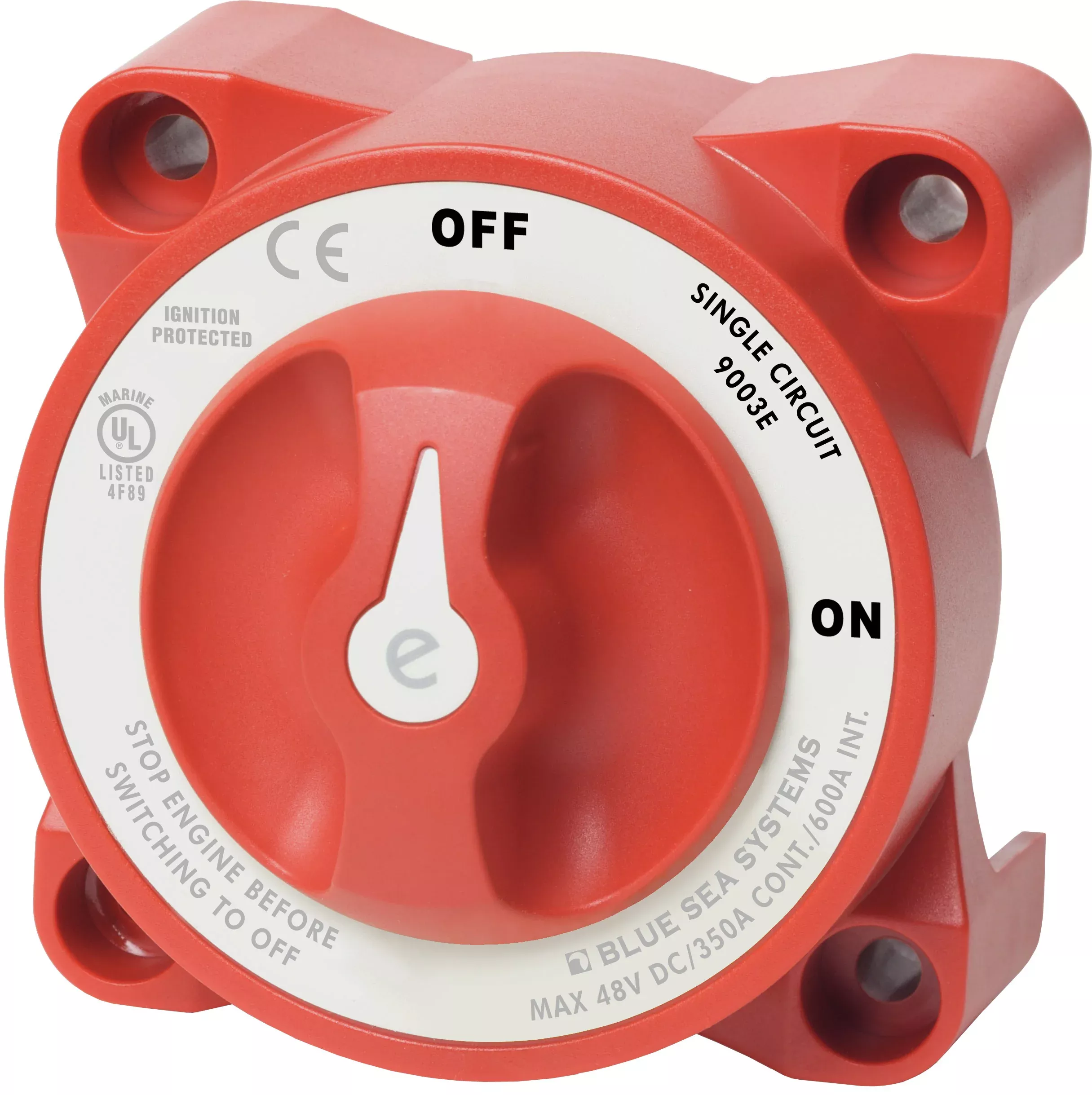

About this product
Rated for 350 amp continuous duty for applications requiring high power output and reliability.
That’s 45% higher than standard switches.
Higher than most, these switches have a maximum operating voltage of 48V DC.
Key Features
• Ignition protected – safe for use on gasoline powered boats
• 3/8″ tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts multiple cable terminals up to 4/0
• Rated at IP66 – withstands heavy seas, jets of water
• Case design allows surface or flush mounting
• Fits Perko and Guest low amperage battery switch hole patterns
Technical Specification
10 SecCranking 2000AAFDNoCont. Amp350AInt. Amp600AStud3/8″Volts48VDC Max.60 Sec Cranking1000ABattery Inputs1Dimensions3.85″W x 3.85″H x 3.10″D
