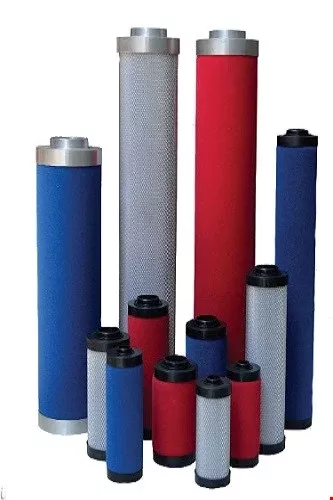

Genuine EL-AV replacement filter element for the EF Series compressed-airfilter housing. Replace every 6,000 operating hours or annually —whichever comes first — to keep pressure drop low and downstream air qualitycompliant with ISO 8573-1.
Element Grade Options
Each EF housing accepts three interchangeable element grades. Specify thegrade you need at checkout in the order notes (price is identical acrossgrades for a given housing size):
| Grade | Particulate Filtration | Oil Vapor / Residual Oil | Nominal Pressure Drop | Typical Use |
|---|---|---|---|---|
| SF | 0.1 micron | 0.1 mg/m³ | 0.05 bar | General-purpose coalescing, prefilter before dryer |
| PF | 0.01 micron | 0.01 mg/m³ | 0.08 bar | High-efficiency coalescing, after-filter |
| CF | — | 0.003 mg/m³ | 0.1 bar | Activated carbon, oil-vapor & odor removal |
Fits
EL-AV EF20000 compressed air line filter housing (706 CFM, 2″ NPT). Not interchangeable with other EF housing sizes.
