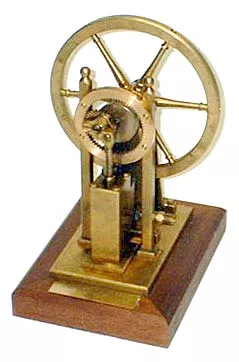

Epicyclic Steam Engine Plans

Complete plans to build an epicyclic steam engine.

These plans were created by Bill Reichart.

This engine uses a unique set of epicyclic gears where one gear revolves around another gear. There are 33 pages of plans that detail every part and describe methods of production. The engine is made from bar stock. No castings are required. You get the gears from Boston Gear.
