Festool Carvex Circle Cutter & Guide Rail Adapter Set (Metric) 497443KIT

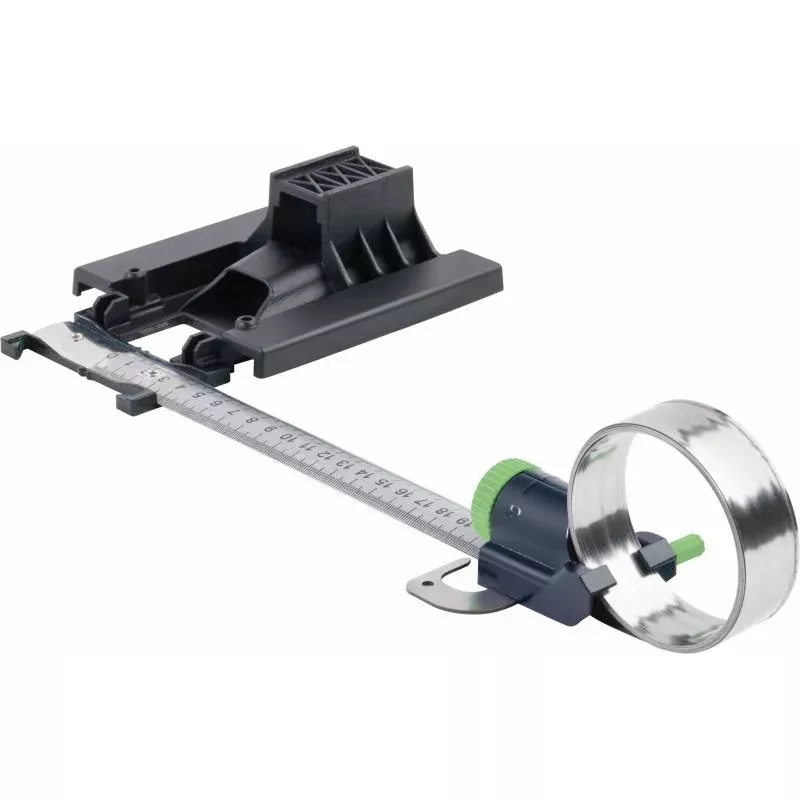

The Festool Carvex Circle Cutter and Guide Rail Adapter Set (Metric) expands the capabilities of your PS 420 or PSC 420 jigsaw, allowing for laboratory-grade precision in both straight and circular cutting applications. The set includes the tool-free Base Adapter (497303), which adapts the jigsaw to ride seamlessly on Festool FS Guide Rails, and the Metric Circle Cutter (497304), which attaches to the adapter to create a beam compass system.
With this kit, you can execute perfectly straight cuts in wood or composite materials without blade drift. By attaching the Circle Cutter, you can cut precise circles ranging from 120mm to an impressive 3000mm (3 meters) in diameter. The circle cutter features a flexible steel tape design that provides rigidity during the cut but rolls up compactly for storage in a Systainer. This set is essential for cutting round tabletops, sink cutouts, and curved millwork.
Features & Benefits
- Dual Functionality: Works as a Guide Rail base for straight cuts and a trammel arm for circular cuts.
- Massive Capacity: Cuts circles from 120mm to 3000mm (approx. 4.7″ to 9′ 10″) in diameter.
- Metric Calibration: Features a high-contrast metric scale for quick radius setting.
- Compact Storage: Roll-up tape design takes up minimal space compared to rigid beam compasses.
- Tool-Free Mounting: Snaps instantly onto any Carvex PS 400/420 series jigsaw.
Applications
- Cutting circular tables and furniture components.
- Sink cutouts and radius work.
- Straight line ripping with FS Guide Rails.
Compatible Accessories/Consumables
- Festool Carvex Jigsaws (PS 420, PSC 420, PSB 420, PSBC 420)
- Festool FS Guide Rails
Specifications
- Min. Circle Diameter: 120 mm
- Max. Circle Diameter: 3000 mm
- Scale System: Metric (mm)
- Kit Components:
- 1x Guide Rail Base Adapter (497303)
- 1x Circle Cutter Metric (497304)
