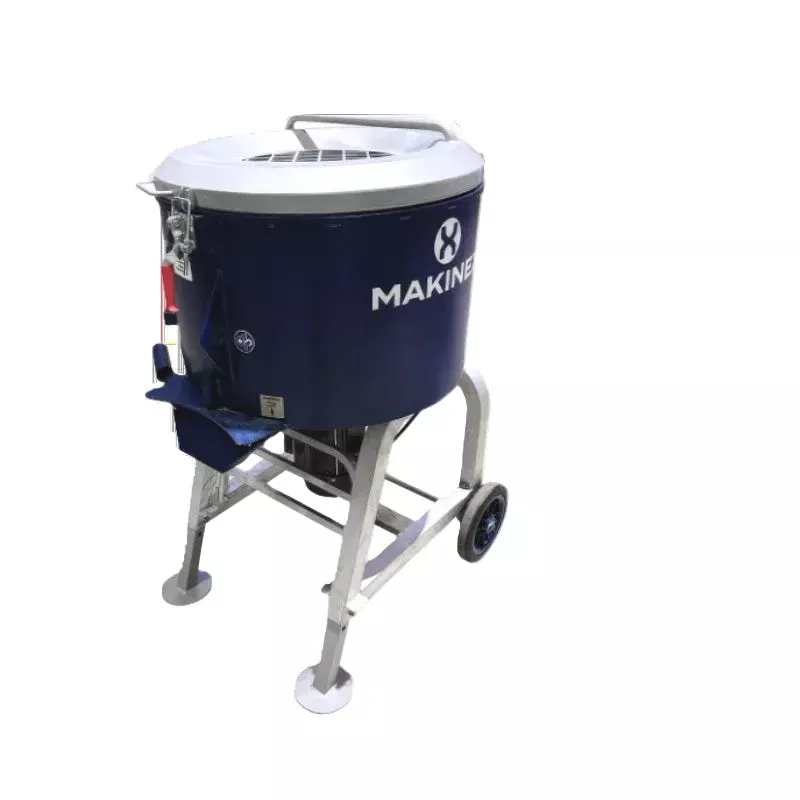

Forced Action Mixer FAM-120

Built for high-viscosity, heavy surface-prep materials, the FAM-120 delivers consistent, reliable mixing for screed, mortar, epoxy-bound aggregate and GFRC.

Designed for demanding job sites, it features a sealed AC geared motor, high-strength aluminum frame and an epoxy-coated drum for durability and reduced downtime. The optional replaceable liner cuts cleaning time by up to 40%, making the FAM-120 a cleaner, faster and more efficient choice for trade professionals.

Features and Benefits

Challenges on the Job

Replaceable Drum Liner

Extends drum life and reduces wear
Minimizes cleaning time between batches
Supports cleaner operation and consistent mix quality

Concave, Inverted Anti-Spill Lid

Reduces spillage, throw-off and dust
Improves site cleanliness and operator visibility
Helps maintain accurate mix ratios

Integrated Vacuum Port for Dust Extraction

Enables low-dust operation for safer sites
Protects workers from hazardous silica and epoxy dust
Supports compliance with modern safety standards

Adjustable Stabilizing Legs

Stable on uneven terrain
Reduces operator strain through improved ergonomics
Enhances control when discharging into wheelbarrows or containers

Specs

Forced Action Mixer Value Forced Action Mixer Product Code FAM-120-US Forced Action Mixer Line Product Code FAM-027 Rated Continuous Output 1100W Max Output 30RPM Input Voltage 240V Input Current 9A Frequency 60Hz Weight 265lbs Dimensions (min) 29.8 x 38.6 x 47.6 (W x D x H) in Dimensions (max) 29.8 x 38.6 x 54.1 (W x D x H) in Output RPM 30 Mixing Capacity 31.7gal Motor Ingress Protection 44 Terminal Box Ingress Protection 54

Safety compliance:

• Compliant with relevant CE and IEC electrical safety standards
• Designed with dust-control capability to support compliance on modern construction sites
• Integrated safety cut-out and thermal overload protection
• UKCA and CE compliance markings (confirm based on final market release)
