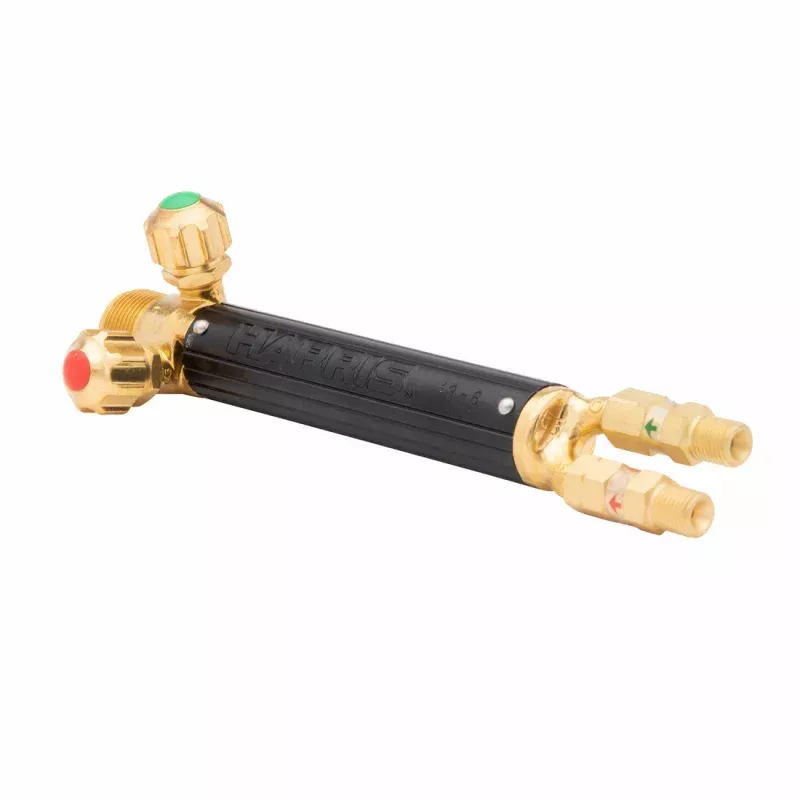

Model 19-6 Combination Torch Handle with Front Valves and Check Valves
The Models 19-6 and 19-6A are combination handles for medium-duty welding, brazing, heating and cutting. They can be used with oxy-acetylene or any of the alternate fuel gases. The Model 19 features silver brazed twin-tube construction. Both Models 19-6 and 19-6A have front valves for easier adjustment while welding and brazing. The 19-6A features 38“-24 class “A” hose fi ttings.
Features
- Medium duty combination torch handle with front valves for use with all fuel gases
- Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
- Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
- Front valves for easier adjustments during operation
- Features 9/16 in. – 18 B-hose fittings
- Embossed with model number for ease in selecting compatible parts
- Handle is 7 1/2 in. (190.53mm) in length
- UL listed
- Equipped with FlashGuard replaceable check valves
- Cuts up to 2 in. (50.6mm) plate and Welds up to 5/16 in. (7.9mm) plate.
- Part No.1401156
Technical Specifications
- Capacity: Welds to 516″ (7.9 mm); cuts to 2″ (50.8 mm)
- Length: 7 12″ (190.5 mm)
- Weight: 0.7 lbs. (0.32 kg)
- Certification: UL listed
- Equipped with: FlashGuard check valves
- Inlet Connections:
- Model 19-6: 916″ – 18 (Part Number: 1401156)
- Model 19-6A: 38″ – 24 (Part Number: 1401143)
