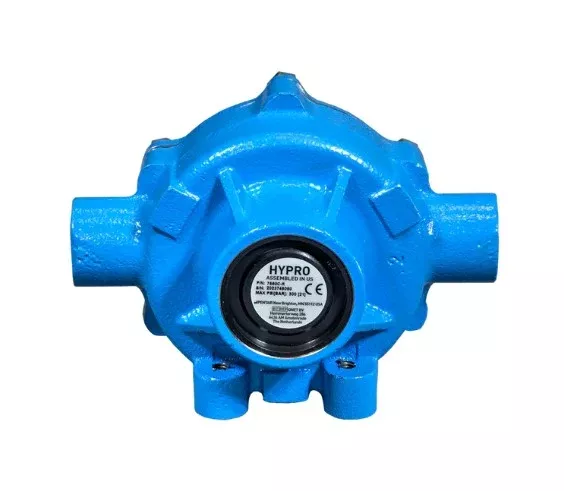

The 7560C-R by Hypro is a Cast Iron 8-Roller pump with Super Rollers and Super Rotor. Maximal flow of 22.5 gpm is achieved @ 300 psi and 1000 rpm. This model comes standard with Viton seals. Ports are 3/4″ NPT, and shaft is 15/16″ (solid). REVERSE ROTATION.
• Cast iron, Ni-Resist or Silver Series housing
• Max. flow: 12 gpm/45.4 L/min at 540 rpm;
• Max. flow: 22.5 gpm/85.2 L/min at 1000 rpm
• Max. pressure: 300 psi/20.7 BAR
• Max. rated speed: 1000 rpm
• Max. fluid temperature: 140°F/60°C
• Shaft: 15/16″ solid
• Port sizes: 3/4″ NPT
• 1″ hose barb inlet fitting for 1000 rpm operation
