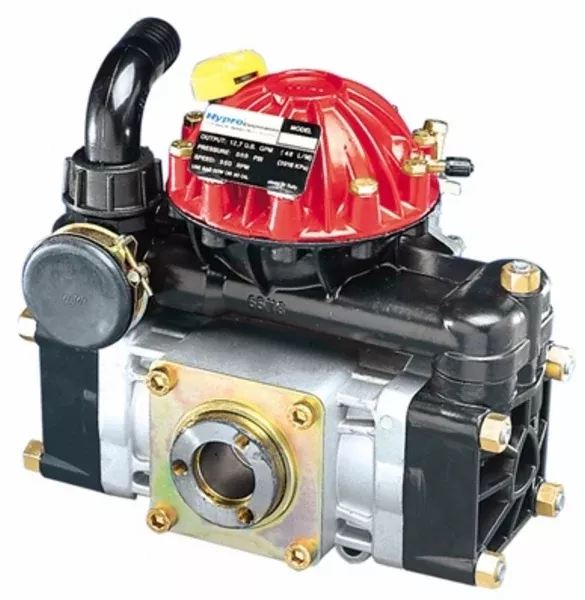

Hypro D50 also known as AR50 Medium Pressure Diaphragm Pump
- Maximum flow: 14 gpm
- Maximum pressure: 580 psi
- Maximum rated speed: 550 rpm
- Maximum fluid temperature: 140 F
- Port sizes: 1-1/4″ inlet, 1/2″ outlet hose barb
- Shaft: flanged for shaft kit
- Diaphragms: 2, full-hydraulic
- Housing: components for liquid handling: epoxy coated
- Pump shaft rotation: CW and CCW
