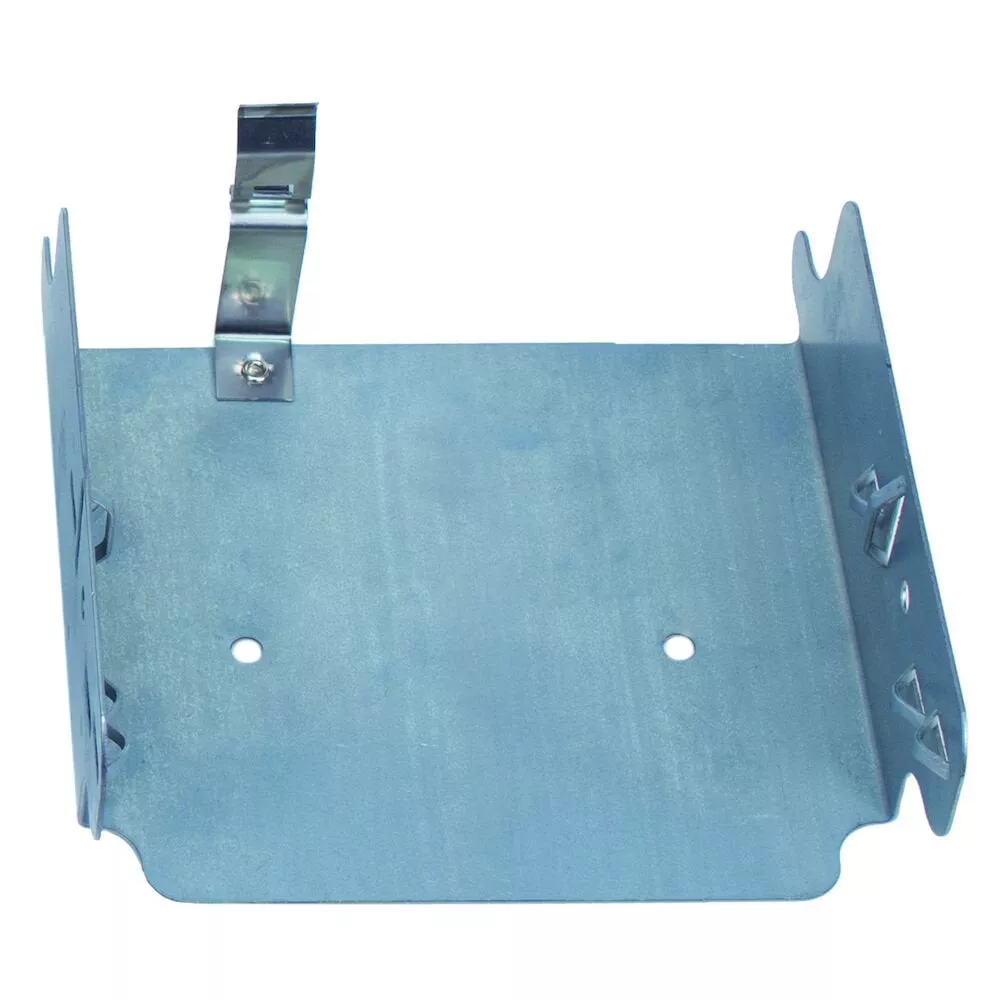

Intermatic 22T338GR Mounting Bracket for Intermatic Standardized Timer Mechanisms
This bracket has been designed to be used when mounting the controls into areas where an enclosure will not be needed or when mounting the control into another form of enclosure. The bracket also accepts a wide range of Intermatic controls.
Features:
- Ideal for panel mounting mechanical or electronic time switch controls
Applications:
- Indoor Lighting Control
- Timing/Scheduling ON/OFF
Specifications:
| Warranty Period | 1-Year limited | Product Depth (in) | 2 |
| Product Depth (mm) | 50.8 | Product Height (in) | 6 |
| Product Height (mm) | 152.4 | Product Width (in) | 5 |
| Product Width (mm) | 127 | Unit Carton Height (in) | 4.001 |
| Unit Carton Length (in) | 6.751 | Unit Carton Weight (lb) | 0.499 |
| Unit Carton Width (in) | 5.501 |
Specs
Warranty Period1-Year limitedProduct Depth (in)2
Product Depth (mm)50.8Product Height (in)6
Product Height (mm)152.4Product Width (in)5
Product Width (mm)127Unit Carton Height (in)4.001
Unit Carton Length (in)6.751Unit Carton Weight (lb)0.499
Unit Carton Width (in)5.501
