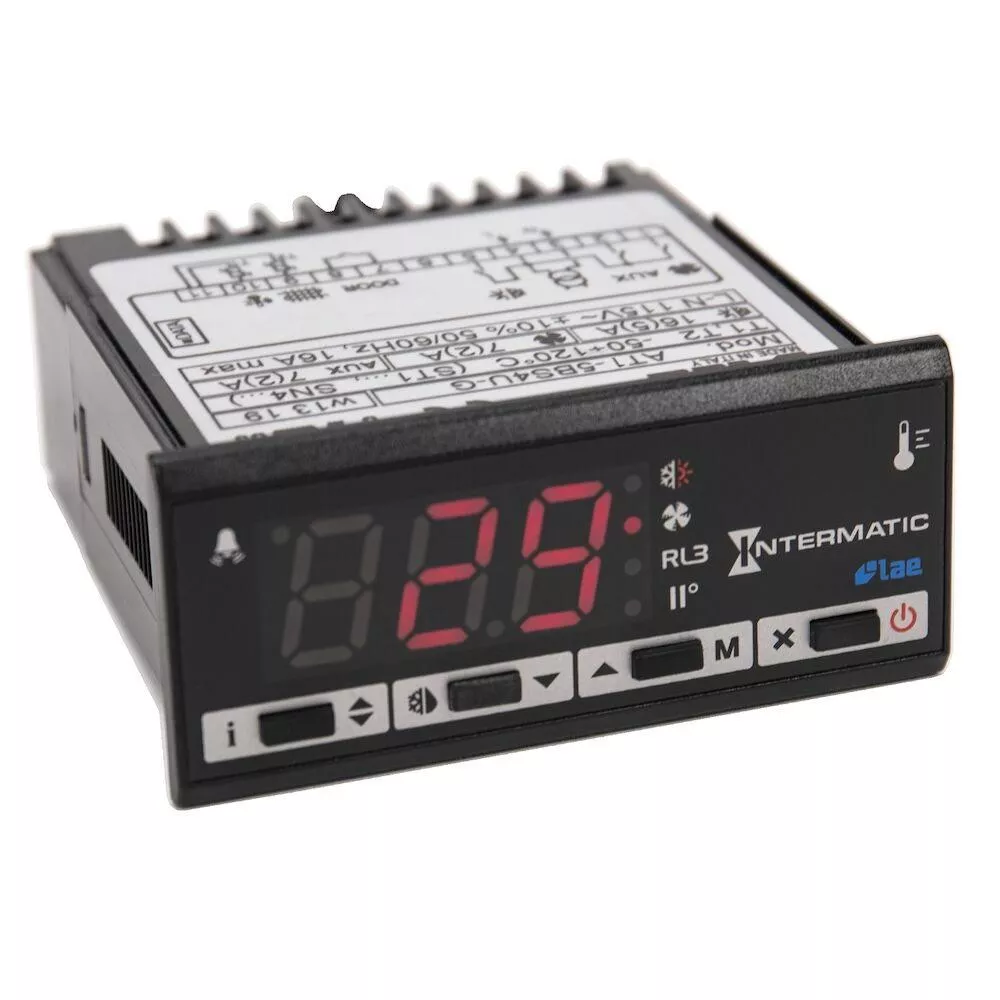

Intermatic AT2-5BS4E-GI Refrigeration Controller, 2 NTC/PTC Sensors, 1 Digital Input, 230 VAC, Screw Terminals
Panel-Mount Controllers are compact and capable and provide excellent control options in a small package. These models are economical solutions for medium-temperature and low-temperature refrigerated cases, as well as standalone refrigerated display cases.
Features:
- Compact
- Manage multiple alarms
- Heating or cooling
Applications:
- Ice Refrigeration Machine
- Reach-In Refrigeration Cooler
Specifications:
| Input Voltage Range(s) | 230 VAC ±10%, 50/60 Hz | Mounting Options | Panel |
| Enclosure Type | IP55 Front | Has Real-time Clock Face | No |
| Mechanism Type | Electrical | Number Of Circuits Controlled | 3 |
| Warranty Period | 5-Year limited | Wiring Option | Screw terminal block |
| Application Compatibilities | Commercial Refrigeration, Walk-in Cooler, Walk-in Freezer | Category | LAE Refrigeration Controls Web |
| Clock Display Types | LED | Defrost LED Indicator | Red |
| Electrical Life | 100,000 operations at full load | Minimum Cycle Time | 1 min |
| Operating Humidity | 0-80% RH, Non-condensing | Resistive Load Ratings Ranges AUX1 | 7 (2) A @ 240 VAC |
| Resistive Load Ratings Ranges Compressor | 16 (5) A @ 240 VAC | Resistive Load Ratings Ranges Fan | 7 (2) A @ 240 VAC |
| RoHS Certification | Yes | Switch Type AUX1 | SPST |
| Switch Type Compressor | SPST | Switch Type Fan | SPST |
| Wire Size Max | 10 AWG | Operating Temperature Max (°C) | 50 |
| Operating Temperature Max (°F) | 122 | Operating Temperature Min (°C) | -10 |
| Operating Temperature Min (°F) | 14 | Product Depth (in) | 2.76 |
| Product Depth (mm) | 70 | Product Height (in) | 1.34 |
| Product Height (mm) | 34 | Product Width (in) | 2.76 |
| Product Width (mm) | 70 | Unit Carton Height (in) | 2.5 |
| Unit Carton Length (in) | 3.6 | Unit Carton Weight (lb) | 0.48 |
| Unit Carton Width (in) | 3.2 |
Specs
Input Voltage Range(s)230 VAC ±10%, 50/60 HzMounting OptionsPanel
Enclosure TypeIP55 FrontHas Real-time Clock FaceNo
Mechanism TypeElectricalNumber Of Circuits Controlled3
Warranty Period5-Year limitedWiring OptionScrew terminal block
Application CompatibilitiesCommercial Refrigeration, Walk-in Cooler, Walk-in FreezerCategoryLAE Refrigeration Controls Web
Clock Display TypesLEDDefrost LED IndicatorRed
Electrical Life100,000 operations at full loadMinimum Cycle Time1 min
Operating Humidity0-80% RH, Non-condensingResistive Load Ratings Ranges AUX17 (2) A @ 240 VAC
Resistive Load Ratings Ranges Compressor16 (5) A @ 240 VACResistive Load Ratings Ranges Fan7 (2) A @ 240 VAC
RoHS CertificationYesSwitch Type AUX1SPST
Switch Type CompressorSPSTSwitch Type FanSPST
Wire Size Max10 AWGOperating Temperature Max (°C)50
Operating Temperature Max (°F)122Operating Temperature Min (°C)-10
Operating Temperature Min (°F)14Product Depth (in)2.76
Product Depth (mm)70Product Height (in)1.34
Product Height (mm)34Product Width (in)2.76
Product Width (mm)70Unit Carton Height (in)2.5
Unit Carton Length (in)3.6Unit Carton Weight (lb)0.48
Unit Carton Width (in)3.2
Dimension
Product Depth (in)2.76
Product Height (in)1.34
Product Width (in)2.76
