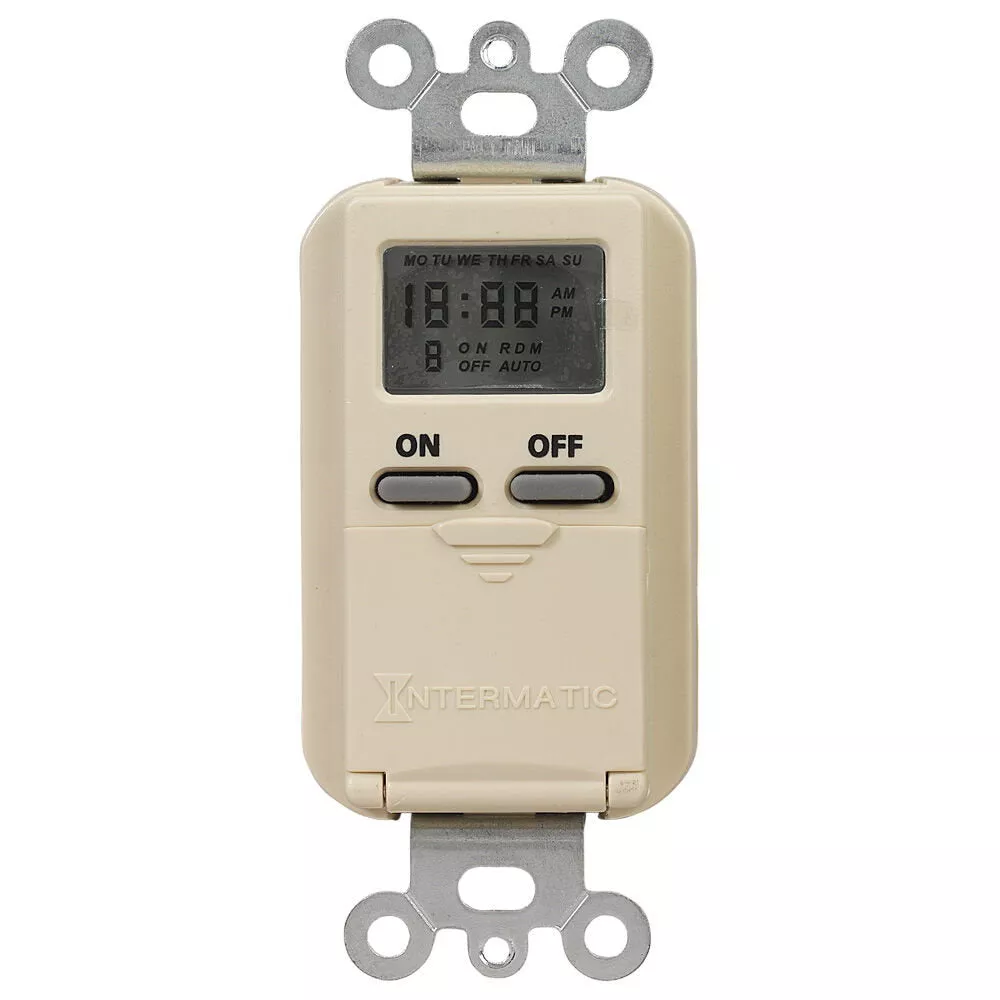

Intermatic EI500C 7-Day Standard Programmable Timer, 125 VAC, 15A, Ivory
For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features:
- 7-day programmable schedules with 14 ON/OFF events
- Automatic Daylight Saving Time (DST) adjustment
- Random mode varies ON/OFF schedule to provide a “lived-in” appearance
- Single-pole circuit
- Incandescent/fluorescent/CFL/LED compatible
- Built-in rechargeable, non-serviceable battery backup
- Requires neutral connection
- Backlit LCD display
- Decorator switch plate not included
Applications:
- Air Movement & Ventilation
- Indoor Lighting Control
- Outdoor Lighting Control
Specifications:
| Backup Type | Battery | Color | Ivory |
| Input Voltage Range(s) | 125 VAC, 60 Hz | Maximum ON/OFF Operations | 14 |
| Mechanism Type | Digital/Electrical | Operation Mode | 24 hour |
| Wiring Configurations | Single | Minimum ON/OFF Times | 1 min |
| Wall Plate Configurations | Single-Gang | Neutral Connection Required | Yes |
| Warranty Period | 1-Year limited | Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Ballast Fluorescent | 8 A, 1000 VA | Battery Service Type | Non-Serviceable |
| Battery Type | Rechargeable | Electronic Ballast LED | 4 A, 500 VA |
| General Purpose | 15 A, 125 VAC, 60 Hz | Includes Wall Plate | Yes |
| Inductive | 1000 VA, 125 VAC, 60 Hz | Inductive Load Ratings Ranges | 1000 VA, 125 VAC, 60 Hz |
| Motor (Three-Phase) | 1/4 HP, 125 VAC, 60 Hz | Motor Three Phase Ranges | 1/4 HP, 125 VAC, 60 Hz |
| Resistive Heater | 15 A, 1875 W | Tungsten (Incandescent) Range(s) | 1000 W |
| Tungsten Incandescent | 1000 W | Operating Temperature Max (°C) | 40 |
| Operating Temperature Max (°F) | 104 | Operating Temperature Min (°C) | 0 |
| Operating Temperature Min (°F) | 32 | Product Depth (in) | 1.4375 |
| Product Depth (mm) | 36.5 | Product Height (in) | 4.125 |
| Product Height (mm) | 104.8 | Product Width (in) | 1.75 |
| Product Width (mm) | 44.5 | Unit Carton Height (in) | 4.88 |
| Unit Carton Length (in) | 2.13 | Unit Carton Weight (lb) | 0.351 |
| Unit Carton Width (in) | 3 |
Specs
Backup TypeBatteryColorIvory
Input Voltage Range(s)125 VAC, 60 HzMaximum ON/OFF Operations14
Mechanism TypeDigital/ElectricalOperation Mode24 hour
Wiring ConfigurationsSingleMinimum ON/OFF Times1 min
Wall Plate ConfigurationsSingle-GangNeutral Connection RequiredYes
Warranty Period1-Year limitedApplication CompatibilitiesCFL, Fluorescent, Incandescent, LED
Ballast Fluorescent8 A, 1000 VABattery Service TypeNon-Serviceable
Battery TypeRechargeableElectronic Ballast LED4 A, 500 VA
General Purpose15 A, 125 VAC, 60 HzIncludes Wall PlateYes
Inductive1000 VA, 125 VAC, 60 HzInductive Load Ratings Ranges1000 VA, 125 VAC, 60 Hz
Motor (Three-Phase)1/4 HP, 125 VAC, 60 HzMotor Three Phase Ranges1/4 HP, 125 VAC, 60 Hz
Resistive Heater15 A, 1875 WTungsten (Incandescent) Range(s)1000 W
Tungsten Incandescent1000 WOperating Temperature Max (°C)40
Operating Temperature Max (°F)104Operating Temperature Min (°C)0
Operating Temperature Min (°F)32Product Depth (in)1.4375
Product Depth (mm)36.5Product Height (in)4.125
Product Height (mm)104.8Product Width (in)1.75
Product Width (mm)44.5Unit Carton Height (in)4.88
Unit Carton Length (in)2.13Unit Carton Weight (lb)0.351
Unit Carton Width (in)3
Dimension
Product Depth (in)1.4375
Product Height (in)4.125
Product Width (in)1.75
