Home » Shop » hot sale » Intermatic – EI500WC – 7-Day Standard Programmable Timer, White

Intermatic – EI500WC – 7-Day Standard Programmable Timer, White

Original price was: $11.87.Current price is: $8.29.

Sale!
SKU: EI500WC Category:
Share

Spec Sheet  Install Manual

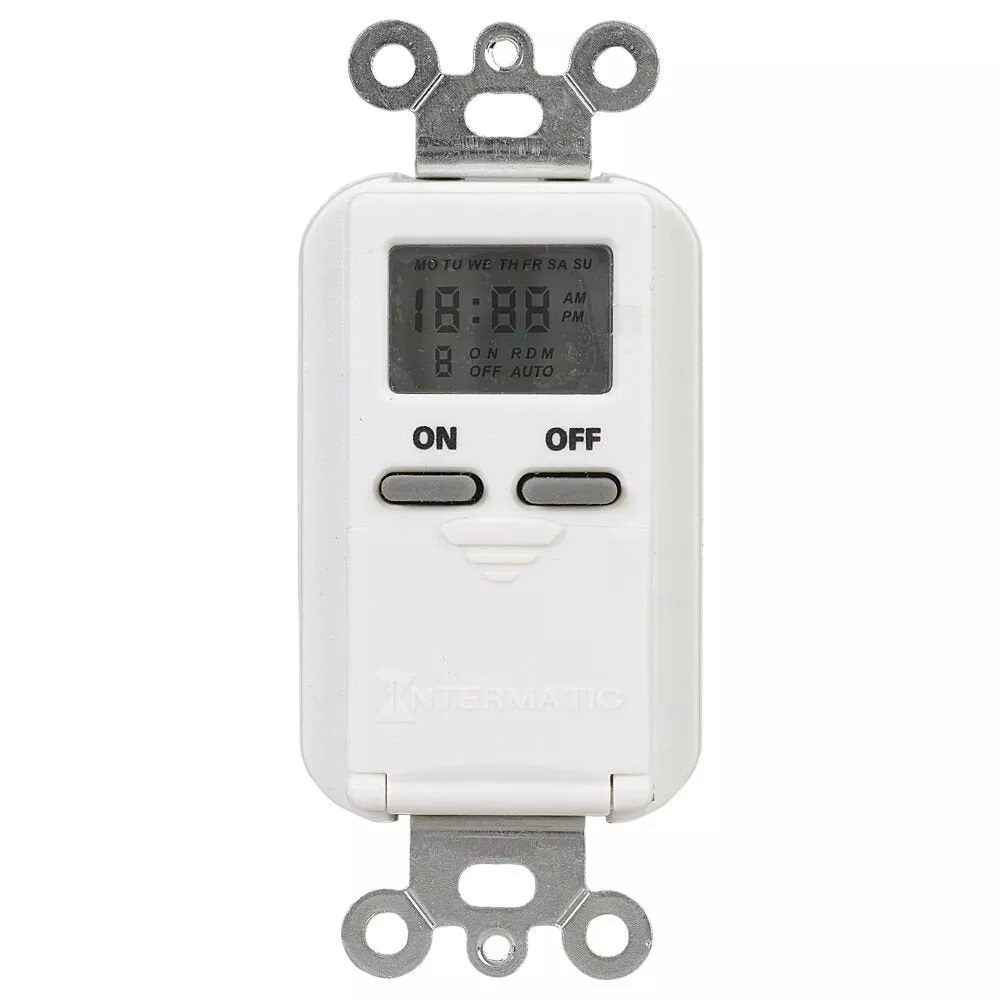

Intermatic EI500WC 7-Day Standard Programmable Timer, 125 VAC, 15A, White

For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

  • 7-day programmable schedules with 14 ON/OFF events
  • Automatic Daylight Saving Time (DST) adjustment
  • Random mode varies ON/OFF schedule to provide a “lived-in” appearance
  • Single-pole circuit
  • Incandescent/fluorescent/CFL/LED compatible
  • Built-in rechargeable, non-serviceable battery backup
  • Requires neutral connection
  • Backlit LCD display
  • Decorator switch plate not included

Applications:

  • Air Movement & Ventilation
  • Indoor Lighting Control
  • Outdoor Lighting Control

Specifications:

Backup Type Battery Color White
Input Voltage Range(s) 125 VAC, 60 Hz Maximum ON/OFF Operations 14
Mechanism Type Digital/Electrical Operation Mode 24 hour
Wiring Configurations Single Minimum ON/OFF Times 1 min
Wall Plate Configurations Single-Gang Neutral Connection Required Yes
Warranty Period 1-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
Battery Service Type Non-Serviceable Battery Type Rechargeable
Electronic Ballast LED 4 A, 500 VA General Purpose 15 A, 125 VAC, 60 Hz
Inductive 1000 VA, 125 VAC, 60 Hz Inductive Load Ratings Ranges 1000 VA, 125 VAC, 60 Hz
Motor (Three-Phase) 1/4 HP, 125 VAC, 60 Hz Motor Three Phase Ranges 1/4 HP, 125 VAC, 60 Hz
Rating General Purpose Resistive Heater 15 A, 1875 W
Timer Type Digital Tungsten (Incandescent) Range(s) 1000 W
Tungsten Incandescent 1000 W Operating Temperature Max (°C) 40
Operating Temperature Max (°F) 104 Operating Temperature Min (°C) 0
Operating Temperature Min (°F) 32 Product Depth (in) 1.4375
Product Depth (mm) 36.5 Product Height (in) 4.125
Product Height (mm) 104.8 Product Width (in) 1.75
Product Width (mm) 44.5 Unit Carton Height (in) 4.88
Unit Carton Length (in) 2.13 Unit Carton Weight (lb) 0.472
Unit Carton Width (in) 3

Specs

Backup TypeBatteryColorWhite
Input Voltage Range(s)125 VAC, 60 HzMaximum ON/OFF Operations14
Mechanism TypeDigital/ElectricalOperation Mode24 hour
Wiring ConfigurationsSingleMinimum ON/OFF Times1 min
Wall Plate ConfigurationsSingle-GangNeutral Connection RequiredYes
Warranty Period1-Year limitedApplication CompatibilitiesCFL, Fluorescent, Incandescent, LED
Battery Service TypeNon-ServiceableBattery TypeRechargeable
Electronic Ballast LED4 A, 500 VAGeneral Purpose15 A, 125 VAC, 60 Hz
Inductive1000 VA, 125 VAC, 60 HzInductive Load Ratings Ranges1000 VA, 125 VAC, 60 Hz
Motor (Three-Phase)1/4 HP, 125 VAC, 60 HzMotor Three Phase Ranges1/4 HP, 125 VAC, 60 Hz
RatingGeneral PurposeResistive Heater15 A, 1875 W
Timer TypeDigitalTungsten (Incandescent) Range(s)1000 W
Tungsten Incandescent1000 WOperating Temperature Max (°C)40
Operating Temperature Max (°F)104Operating Temperature Min (°C)0
Operating Temperature Min (°F)32Product Depth (in)1.4375
Product Depth (mm)36.5Product Height (in)4.125
Product Height (mm)104.8Product Width (in)1.75
Product Width (mm)44.5Unit Carton Height (in)4.88
Unit Carton Length (in)2.13Unit Carton Weight (lb)0.472
Unit Carton Width (in)3

Dimension

Product Depth (in)1.4375
Product Height (in)4.125
Product Width (in)1.75
