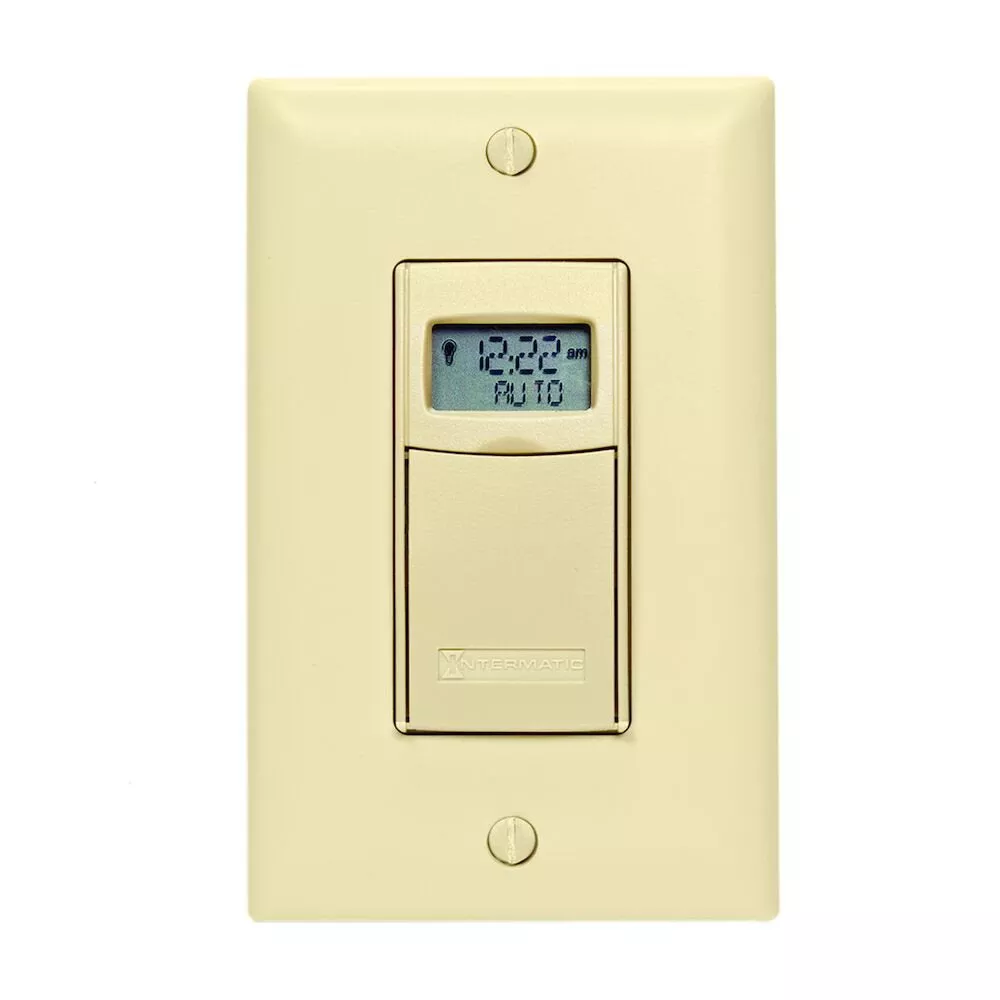

Intermatic EI600C 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 20A, Ivory
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features:
- Versatile 7-day programmable schedules with up to 40 ON/OFF events
- Astronomic clock feature determines dawn and dusk times
- Automatic Daylight Saving Time (DST) adjustment
- Random mode varies ON/OFF schedule to provide a “lived-in” appearance
- Single or 3-way switch compatible installation
- Incandescent/fluorescent/CFL/LED compatible
- Isolated switch allows timer to be used with any load type, including AC and DC loads
- Replaceable CR2 lithium battery provides up to three years of operation
- No neutral wire connection enables easy retrofitting and quicker installation
- Decorator switch plate not included
Applications:
- Air Movement & Ventilation
- Indoor Lighting Control
- Outdoor Lighting Control
Specifications:
| Backup Type | Battery | Color | Ivory |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz | Maximum ON/OFF Operations | 40 |
| Mechanism Type | Digital/Electrical | Operation Mode | 24 hour |
| Wiring Configurations | 3-Way, Single | Minimum ON/OFF Times | 1 min |
| Operation Features | Astronomic, Daylight Saving Time | Wall Plate Configurations | Single-Gang |
| Neutral Connection Required | No | Backup Protection Time | 3 years |
| Warranty Period | 5-Year limited | Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Ballast Fluorescent | 16 A, 1920-4432 VA, 120-277 VAC | Battery Service Type | Replaceable |
| Battery Type | CR2 Lithium | DC loads | 4 A, 12 VDC; 2 A, 28 VDC |
| Includes Wall Plate | No | Inductive | 16 A, 120 VAC, 50 Hz, 16 A, 120 VAC, 60 Hz, 16 A, 208 VAC, 50 Hz, 16 A, 208 VAC, 60 Hz, 16 A, 240 VAC, 50 Hz, 16 A, 240 VAC, 60 Hz, 16 A, 277 VAC, 50 Hz, 16 A, 277 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 16 A, 120-277 VAC, 50/60 Hz | Max Load Handling Capability | 20 A |
| Motor (Three-Phase) | 1 HP, 120 VAC, 50 Hz, 1 HP, 120 VAC, 60 Hz, 2 HP, 240 VAC, 50 Hz, 2 HP, 240 VAC, 60 Hz | Motor Three Phase Ranges | 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz |
| Resistive Heater | 20 A, 2400-5540 W, 120-277 VAC | Tungsten (Incandescent) Range(s) | 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC |
| Tungsten Incandescent | 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC | Operating Temperature Max (°C) | 40 |
| Operating Temperature Max (°F) | 104 | Operating Temperature Min (°C) | 0 |
| Operating Temperature Min (°F) | 32 | Product Depth (in) | 1.8125 |
| Product Depth (mm) | 46 | Product Height (in) | 4.125 |
| Product Height (mm) | 104.8 | Product Width (in) | 1.75 |
| Product Width (mm) | 44.5 | Unit Carton Height (in) | 4.88 |
| Unit Carton Length (in) | 2.13 | Unit Carton Weight (lb) | 0.472 |
| Unit Carton Width (in) | 3 |
Specs
Backup TypeBatteryColorIvory
Input Voltage Range(s)120-277 VAC, 50/60 HzMaximum ON/OFF Operations40
Mechanism TypeDigital/ElectricalOperation Mode24 hour
Wiring Configurations3-Way, SingleMinimum ON/OFF Times1 min
Operation FeaturesAstronomic, Daylight Saving TimeWall Plate ConfigurationsSingle-Gang
Neutral Connection RequiredNoBackup Protection Time3 years
Warranty Period5-Year limitedApplication CompatibilitiesCFL, Fluorescent, Incandescent, LED
Ballast Fluorescent16 A, 1920-4432 VA, 120-277 VACBattery Service TypeReplaceable
Battery TypeCR2 LithiumDC loads4 A, 12 VDC; 2 A, 28 VDC
Includes Wall PlateNoInductive16 A, 120 VAC, 50 Hz, 16 A, 120 VAC, 60 Hz, 16 A, 208 VAC, 50 Hz, 16 A, 208 VAC, 60 Hz, 16 A, 240 VAC, 50 Hz, 16 A, 240 VAC, 60 Hz, 16 A, 277 VAC, 50 Hz, 16 A, 277 VAC, 60 Hz
Inductive Load Ratings Ranges16 A, 120-277 VAC, 50/60 HzMax Load Handling Capability20 A
Motor (Three-Phase)1 HP, 120 VAC, 50 Hz, 1 HP, 120 VAC, 60 Hz, 2 HP, 240 VAC, 50 Hz, 2 HP, 240 VAC, 60 HzMotor Three Phase Ranges1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
Resistive Heater20 A, 2400-5540 W, 120-277 VACTungsten (Incandescent) Range(s)1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
Tungsten Incandescent1800 W, 120 VAC; 1248-1662 W, 208-277 VACOperating Temperature Max (°C)40
Operating Temperature Max (°F)104Operating Temperature Min (°C)0
Operating Temperature Min (°F)32Product Depth (in)1.8125
Product Depth (mm)46Product Height (in)4.125
Product Height (mm)104.8Product Width (in)1.75
Product Width (mm)44.5Unit Carton Height (in)4.88
Unit Carton Length (in)2.13Unit Carton Weight (lb)0.472
Unit Carton Width (in)3
Dimension
Product Depth (in)1.8125
Product Height (in)4.125
Product Width (in)1.75
