Home » Shop » hot sale » Intermatic – EJ600 – 7-Day Standard Programmable Timer, 12A, White

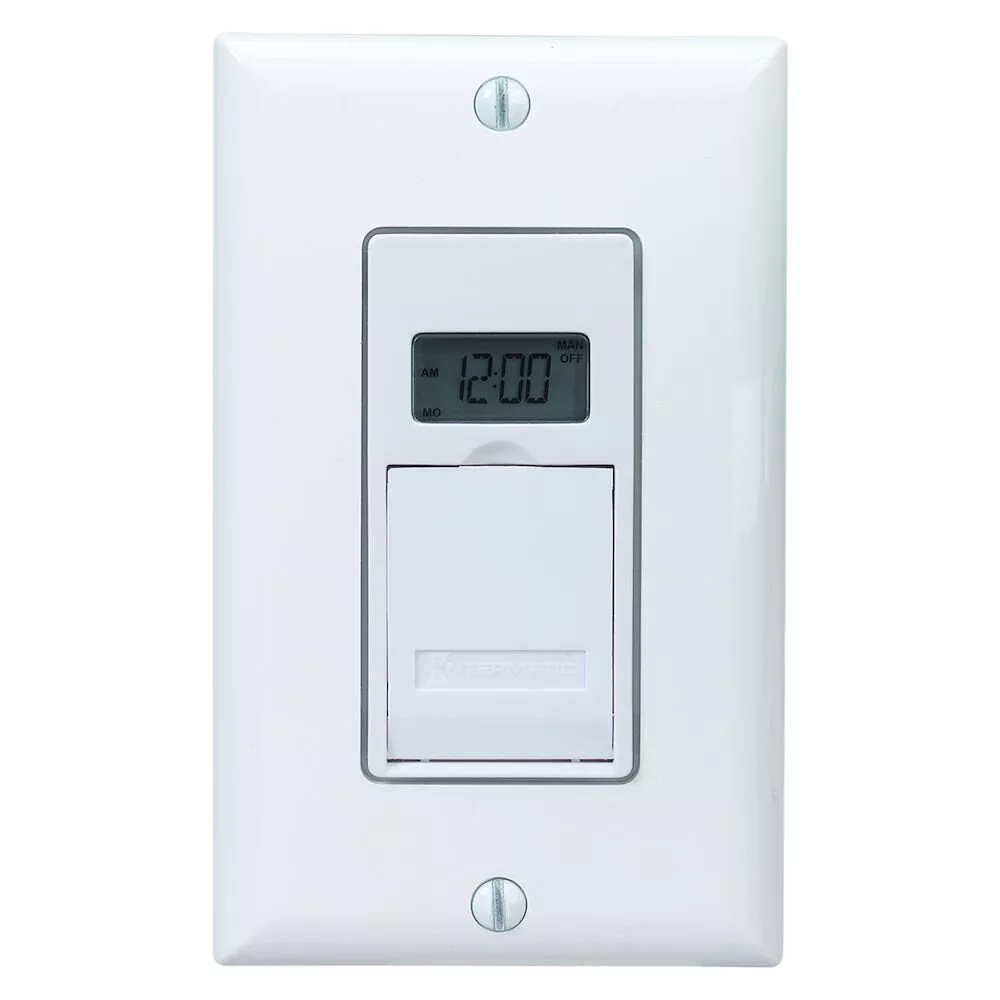

Intermatic – EJ600 – 7-Day Standard Programmable Timer, 12A, White

Original price was: $15.21.Current price is: $8.13.

Sale!
SKU: EJ600 Category:
Share

Spec Sheet  Install Manual

Intermatic EJ600 7-Day Standard Programmable Timer, 120 VAC, 12A, White

A 12 A rated timer that provides full 7-day programming capabilities with dusk-to-dawn functionality, ideal for use with medium to low power loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

  • 7-day programmable schedules with 14 ON/OFF events
  • Astronomic clock feature determines dawn and dusk times
  • Automatic Daylight Saving Time (DST) adjustment
  • Random mode varies ON/OFF schedule to provide a “lived-in” appearance
  • Single or 3-way switch compatible installation
  • Incandescent/fluorescent compatible
  • Built-in rechargeable, non-serviceable battery backup
  • Requires neutral connection
  • Decorator switch plate not included

Applications:

  • Air Movement & Ventilation
  • Indoor Lighting Control
  • Outdoor Lighting Control

Specifications:

Backup Type Battery Color White
Input Voltage Range(s) 120 VAC, 60 Hz Maximum ON/OFF Operations 14
Mechanism Type Digital/Electrical Operation Mode 24 hour
Wiring Configurations 3-Way, Single Minimum ON/OFF Times 1 min
Operation Features Astronomic, Daylight Saving Time Wall Plate Configurations Single-Gang
Neutral Connection Required Yes Backup Protection Time 100 Hours
Warranty Period 1-Year limited Application Compatibilities Fluorescent, Incandescent
Ballast Fluorescent 4 A, 500 VA Battery Service Type Non-Serviceable
Battery Type Rechargeable Includes Wall Plate No
Inductive 500 VA, 120 VAC, 60 Hz Inductive Load Ratings Ranges 500 VA, 120 VAC, 60 Hz
Motor (Three-Phase) 1/2 HP Motor Three Phase Ranges 1/2 HP
Resistive Heater 12 A, 1440 W Tungsten (Incandescent) Range(s) 1440 W, multi-gang, 1800 W, single-gang
Tungsten Incandescent 1440 W, multi-gang, 1800 W, single-gang Operating Temperature Max (°C) 40
Operating Temperature Max (°F) 104 Operating Temperature Min (°C) 0
Operating Temperature Min (°F) 32 Product Depth (in) 1.4375
Product Depth (mm) 36.5 Product Height (in) 4.125
Product Height (mm) 104.8 Product Width (in) 1.75
Product Width (mm) 44.5 Unit Carton Height (in) 6.13
Unit Carton Length (in) 3 Unit Carton Weight (lb) 0.293
Unit Carton Width (in) 2.13

Specs

Backup TypeBatteryColorWhite
Input Voltage Range(s)120 VAC, 60 HzMaximum ON/OFF Operations14
Mechanism TypeDigital/ElectricalOperation Mode24 hour
Wiring Configurations3-Way, SingleMinimum ON/OFF Times1 min
Operation FeaturesAstronomic, Daylight Saving TimeWall Plate ConfigurationsSingle-Gang
Neutral Connection RequiredYesBackup Protection Time100 Hours
Warranty Period1-Year limitedApplication CompatibilitiesFluorescent, Incandescent
Ballast Fluorescent4 A, 500 VABattery Service TypeNon-Serviceable
Battery TypeRechargeableIncludes Wall PlateNo
Inductive500 VA, 120 VAC, 60 HzInductive Load Ratings Ranges500 VA, 120 VAC, 60 Hz
Motor (Three-Phase)1/2 HPMotor Three Phase Ranges1/2 HP
Resistive Heater12 A, 1440 WTungsten (Incandescent) Range(s)1440 W, multi-gang, 1800 W, single-gang
Tungsten Incandescent1440 W, multi-gang, 1800 W, single-gangOperating Temperature Max (°C)40
Operating Temperature Max (°F)104Operating Temperature Min (°C)0
Operating Temperature Min (°F)32Product Depth (in)1.4375
Product Depth (mm)36.5Product Height (in)4.125
Product Height (mm)104.8Product Width (in)1.75
Product Width (mm)44.5Unit Carton Height (in)6.13
Unit Carton Length (in)3Unit Carton Weight (lb)0.293
Unit Carton Width (in)2.13

Dimension

Product Depth (in)1.4375
Product Height (in)4.125
Product Width (in)1.75
