Home » Shop » hot sale » Intermatic – FD60MH – Spring Wound Countdown Timer, Decorator Style, Ivory

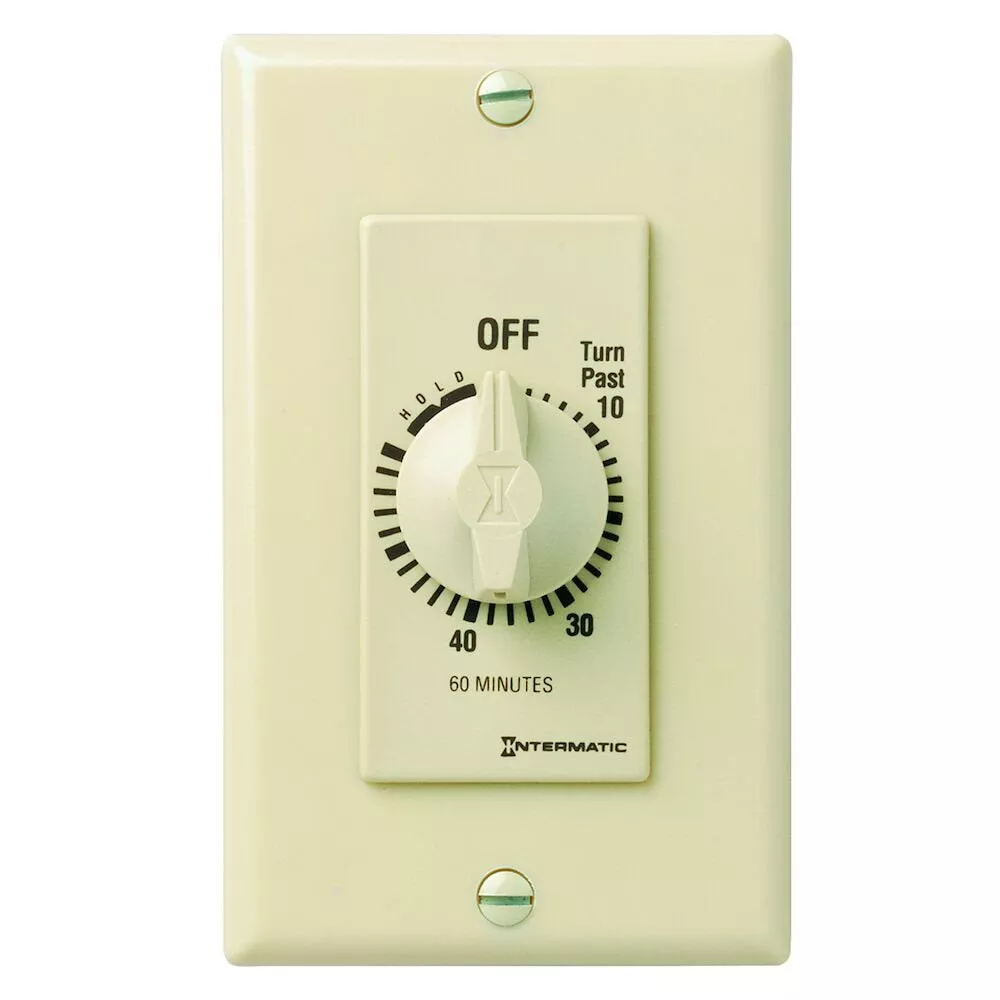

Intermatic – FD60MH – Spring Wound Countdown Timer, Decorator Style, Ivory

Original price was: $7.90.Current price is: $4.93.

Sale!
SKU: FD60MH Category:
Share

Spec Sheet  Install Manual

Intermatic FD60MH Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 60 Minute Max, With Hold, Ivory

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

  • 60-Minute timer with hold
  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required

Applications:

  • Air Movement & Ventilation
  • Indoor Lighting Control
  • Motor Control
  • Outdoor Lighting Control

Specifications:

Color Ivory Input Voltage Range(s) 125-277 VAC, 50/60 Hz
Operation Mode Countdown Switch Type SPST
Wiring Configurations Single Hold Mode Included Yes
Wall Plate Configurations Single-Gang, Multi-Gang Countdown Time 60 min
Mechanism Type Analog/Mechanical Neutral Connection Required No
Warranty Period 1-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
Category Spring Wound Countdown Timers Web Motor Three Phase Ranges 1 HP, 125 VAC; 2 HP, 250 VAC
Resistive Heater 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC Tungsten (Incandescent) Range(s) 7 A, 125 VAC, 50/60 Hz, 875 W
Tungsten Incandescent 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W Operating Temperature Max (°C) 49
Operating Temperature Max (°F) 120 Operating Temperature Min (°C) 4
Operating Temperature Min (°F) 40 Product Depth (in) 1.25
Product Depth (mm) 31.8 Product Height (in) 4.125
Product Height (mm) 104.8 Product Width (in) 1.75
Product Width (mm) 44.5 Unit Carton Height (in) 4.63
Unit Carton Length (in) 2.88 Unit Carton Weight (lb) 0.249
Unit Carton Width (in) 2.13

Specs

Model Number FD60MH
Description Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 60 Minute
Max, With Hold, Ivory
UPC Code 078275185623
Brand Intermatic
Country of Origin (Intermatic) TUNISIA
Warranty Period 1-Year limited
Application Compatibilities Incandescent; Fluorescent; CFL; LED
Harmonized Code 9107.00.8000
Control Specifications
Operation Mode Countdown
Countdown Time 60 min
Hold Mode Included Yes
Mechanism Type Analog/Mechanical
Mechanical Specifications
Wall Plate Configurations Single-Gang; Multi-Gang
