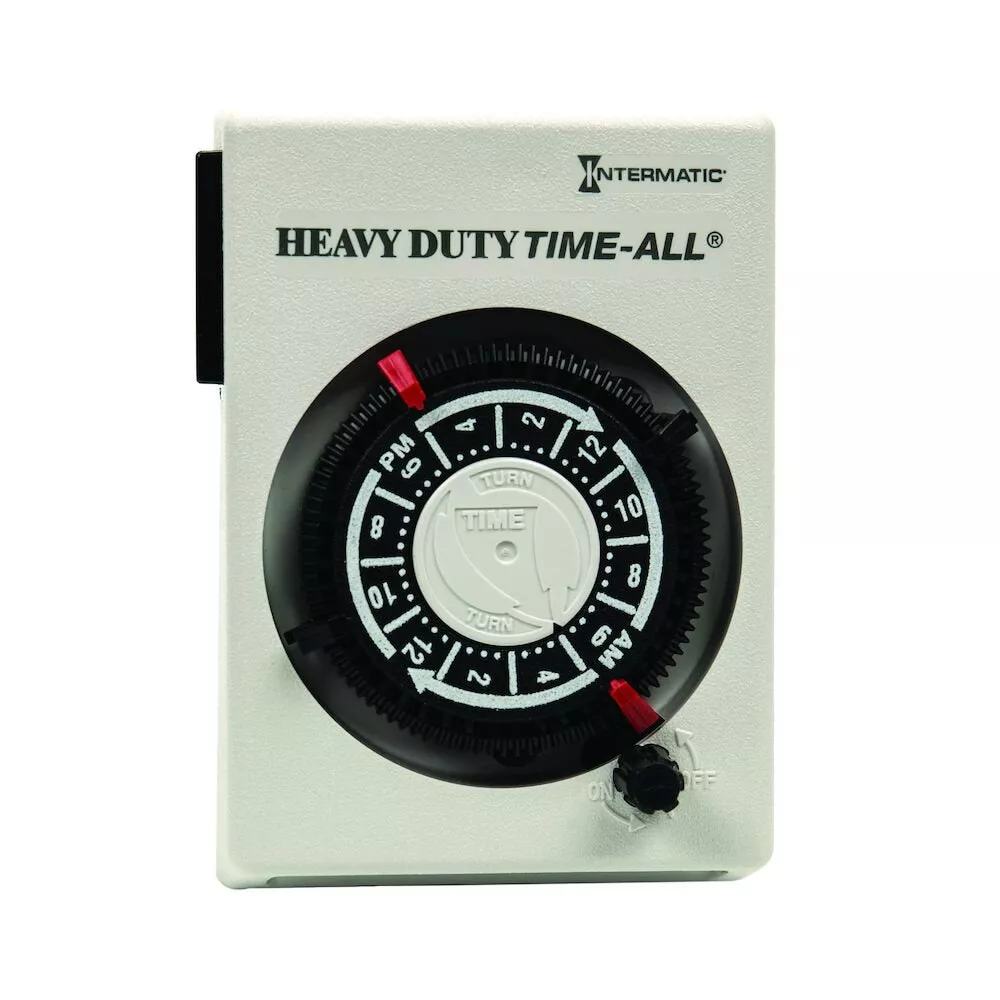

Plug-in timers provide 24-hour ON/OFF scheduling for high power appliances, such as window mounted air conditioners, by accepting their specialized NEMA plugs.
Features:
- 2 ON/2 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers
- Minimum 30-min ON/OFF time
- Manual ON/OFF Override
- Grounded 125 and 240 V NEMA receptacle and plug
- Plugs directly into wall outlet
Applications:
- Air Movement & Ventilation
- Indoor Lighting Control
Specifications:
| Color | White | Input Voltage Range(s) | 240 VAC, 60 Hz |
| Mechanism Type | Analog/Mechanical | Operation Mode | 24 hour |
| Resistive | 15 A, 240 VAC, 60 Hz | Usage Environments | Indoor |
| Minimum ON/OFF Times | 30 min | Plug Configurations | 6-15 |
| Number of Plugs | 1 | ON/OFF Operations | 2 |
| Warranty Period | 1-Year limited | Airconditioner Load Ratings | 8 A, 240 VAC, 60 Hz |
| Inductive | 8 A, 240 VAC, 60 Hz | Motor (Three-Phase) | 2 HP, 240 VAC, 60 Hz |
| Pilot Duty (NO) | 768 VA, 240 VAC, 60 Hz | Rating | General Purpose |
| Watts | 3600 | Product Depth (in) | 2 1/8 |
| Product Depth (mm) | 54 | Product Height (in) | 4 1/4 |
| Product Height (mm) | 108 | Product Width (in) | 3 |
| Product Width (mm) | 76 | Unit Carton Height (in) | 4.375 |
| Unit Carton Length (in) | 3 | Unit Carton Weight (lb) | 0.549 |
| Unit Carton Width (in) | 3 |
Specs
ColorWhiteInput Voltage Range(s)240 VAC, 60 Hz
Mechanism TypeAnalog/MechanicalOperation Mode24 hour
Resistive15 A, 240 VAC, 60 HzUsage EnvironmentsIndoor
Minimum ON/OFF Times30 minPlug Configurations6-15
Number of Plugs1ON/OFF Operations2
Warranty Period1-Year limitedAirconditioner Load Ratings8 A, 240 VAC, 60 Hz
Inductive8 A, 240 VAC, 60 HzMotor (Three-Phase)2 HP, 240 VAC, 60 Hz
Pilot Duty (NO)768 VA, 240 VAC, 60 HzRatingGeneral Purpose
Watts3600Product Depth (in)2 1/8
Product Depth (mm)54Product Height (in)4 1/4
Product Height (mm)108Product Width (in)3
Product Width (mm)76Unit Carton Height (in)4.375
Unit Carton Length (in)3Unit Carton Weight (lb)0.549
Unit Carton Width (in)3
Dimension
Product Depth (in)2 1/8
Product Height (in)4 1/4
Product Width (in)3
