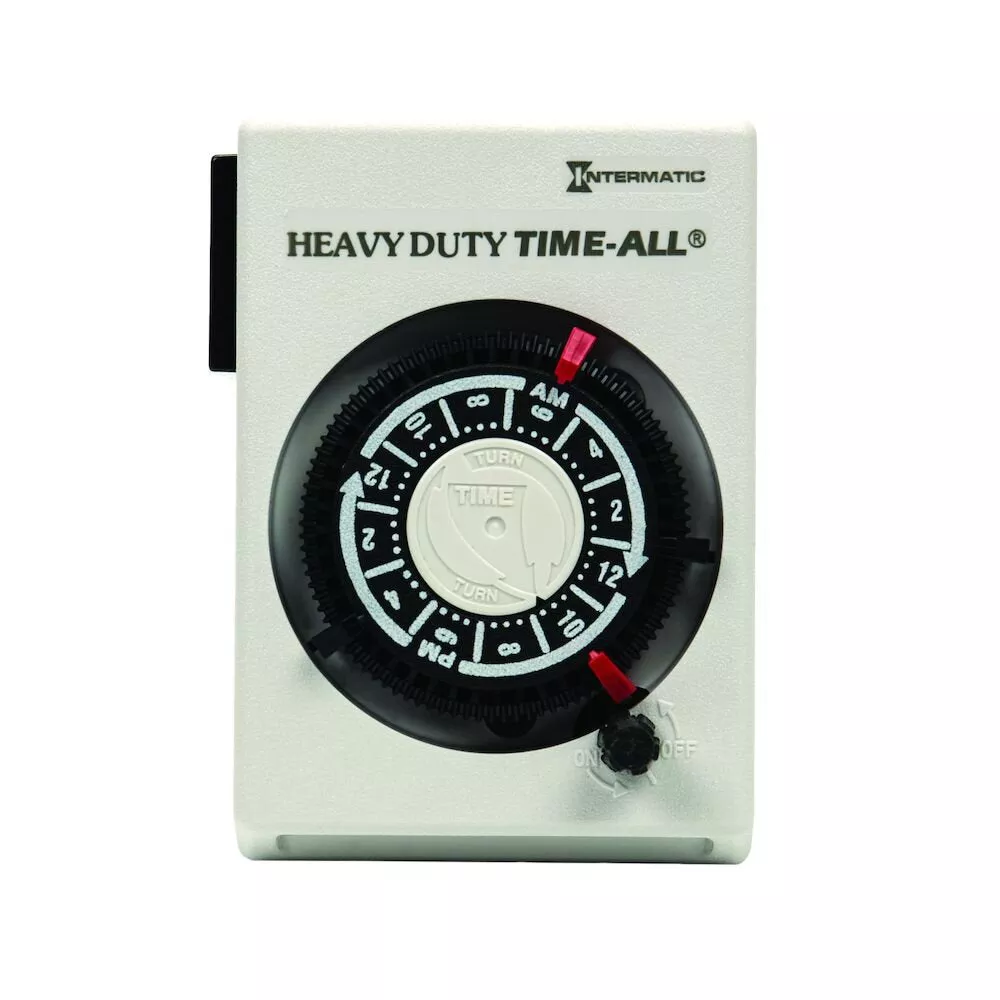

Intermatic – HB113 – Heavy-Duty Appliance Plug-In Timer

Original price was: $5.90.Current price is: $3.22.

Sale!
SKU: HB113 Category:
Share

Install Manual

Plug-in timers provide 24-hour ON/OFF scheduling for high power appliances, such as window mounted air conditioners, by accepting their specialized NEMA plugs.

Features:

  • 2 ON/2 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers
  • Minimum 30-min ON/OFF time
  • Manual ON/OFF Override
  • Grounded 125 and 240 V NEMA receptacle and plug
  • Plugs directly into wall outlet

Applications:

  • Air Movement & Ventilation
  • Indoor Lighting Control

Specifications:

Color White Input Voltage Range(s) 120 VAC, 60 Hz
Mechanism Type Analog/Mechanical Operation Mode 24 hour
Resistive 20 A, 125 VAC, 60 Hz Usage Environments Indoor
Minimum ON/OFF Times 30 min Plug Configurations 5-20
Number of Plugs 1 ON/OFF Operations 2
Warranty Period 1-Year limited Airconditioner Load Ratings 12 A, 125 VAC, 60 Hz
Inductive 8 A, 125 VAC, 60 Hz Motor (Three-Phase) 1 HP, 125 VAC, 60 Hz
Pilot Duty (NO) 576 VA, 125 VAC, 60 Hz Rating General Purpose
Tungsten (NO) 1250 W, 125 VAC, 60 Hz Watts 2500
Product Depth (in) 2 1/8 Product Depth (mm) 54
Product Height (in) 4 1/4 Product Height (mm) 108
Product Width (in) 3 Product Width (mm) 76
Unit Carton Height (in) 4.375 Unit Carton Length (in) 3
Unit Carton Weight (lb) 0.549 Unit Carton Width (in) 3

Specs

ColorWhiteInput Voltage Range(s)120 VAC, 60 Hz
Mechanism TypeAnalog/MechanicalOperation Mode24 hour
Resistive20 A, 125 VAC, 60 HzUsage EnvironmentsIndoor
Minimum ON/OFF Times30 minPlug Configurations5-20
Number of Plugs1ON/OFF Operations2
Warranty Period1-Year limitedAirconditioner Load Ratings12 A, 125 VAC, 60 Hz
Inductive8 A, 125 VAC, 60 HzMotor (Three-Phase)1 HP, 125 VAC, 60 Hz
Pilot Duty (NO)576 VA, 125 VAC, 60 HzRatingGeneral Purpose
Tungsten (NO)1250 W, 125 VAC, 60 HzWatts2500
Product Depth (in)2 1/8Product Depth (mm)54
Product Height (in)4 1/4Product Height (mm)108
Product Width (in)3Product Width (mm)76
Unit Carton Height (in)4.375Unit Carton Length (in)3
Unit Carton Weight (lb)0.549Unit Carton Width (in)3

Dimension

Product Depth (in)2 1/8
Product Height (in)4 1/4
Product Width (in)3
