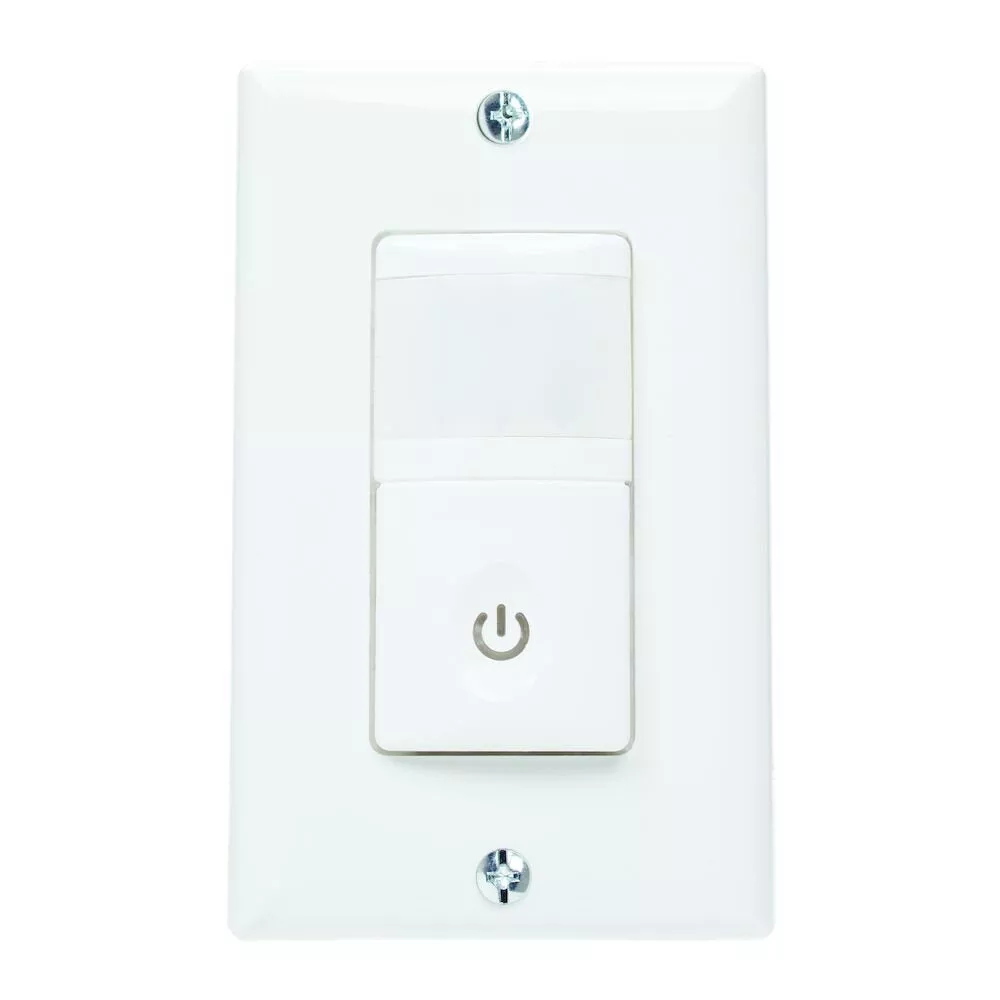

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.
Features:
- Passive Infrared (PIR) sensing for presence detection
- Adjustable PIR sensitivity
- Adjustable time delay 15 sec to 30 min
- Adjustable ambient light sensor override
- Coverage: 150º, 980 ft2 with non-obstructed views
- IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
- ‘No neutral’ models offered for retrofit applications
- Fits standard decorator wall plate (included)
Applications:
- Indoor Sensing Control
Specifications:
| Color | White | Input Voltage Range(s) | 120 VAC, 50/60 Hz |
| Mount Type | In-Wall | Neutral Connection Required | No |
| Occupancy Sensor Power Type | Line Voltage | Warranty Period | 2-Year limited |
| Application Compatibilities | CFL, Fluorescent, Incandescent | Sensor Switch Type | Occupancy |
| Sensor Technology | PIR (Passive Infrared) | Adjustable Light Level Max | Daylight |
| Adjustable Light Level Min | 30 lux | Adjustable Time Delay Max | 30 min |
| Adjustable Time Delay Min | 15 sec | Ballast Fluorescent | 800 VA |
| Ballast Fluorescent Ranges | 800 VA | Category | Occupancy/Vacancy Sensors Web |
| Fluorescent Lamps | 800 VA | Includes Wall Plate | Yes |
| Inductive | 800 VA | Inductive Load Ratings Ranges | 800 VA |
| Maximum Mounting Height (ft) | 4 ft | Motor (Three-Phase) | 1/4 HP |
| Motor Three Phase Ranges | 1/4 HP | PIR Coverage Area (sq ft) | 980 |
| PIR Lens 2 Coverage Pattern (degrees) | 150 | Rating | General Purpose |
| Resistive Heater | 800 W | Tungsten (Incandescent) Range(s) | 800 W |
| Tungsten Incandescent | 800 W | Operating Temperature Max (°C) | 55 |
| Operating Temperature Max (°F) | 131 | Operating Temperature Min (°C) | 0 |
| Operating Temperature Min (°F) | 32 | Product Depth (in) | 1.625 |
| Product Depth (mm) | 41 | Product Height (in) | 2.75 |
| Product Height (mm) | 70 | Product Width (in) | 1 7/16 |
| Product Width (mm) | 37 | Unit Carton Height (in) | 5 |
| Unit Carton Length (in) | 3 | Unit Carton Weight (lb) | 0.399 |
| Unit Carton Width (in) | 2.25 |
