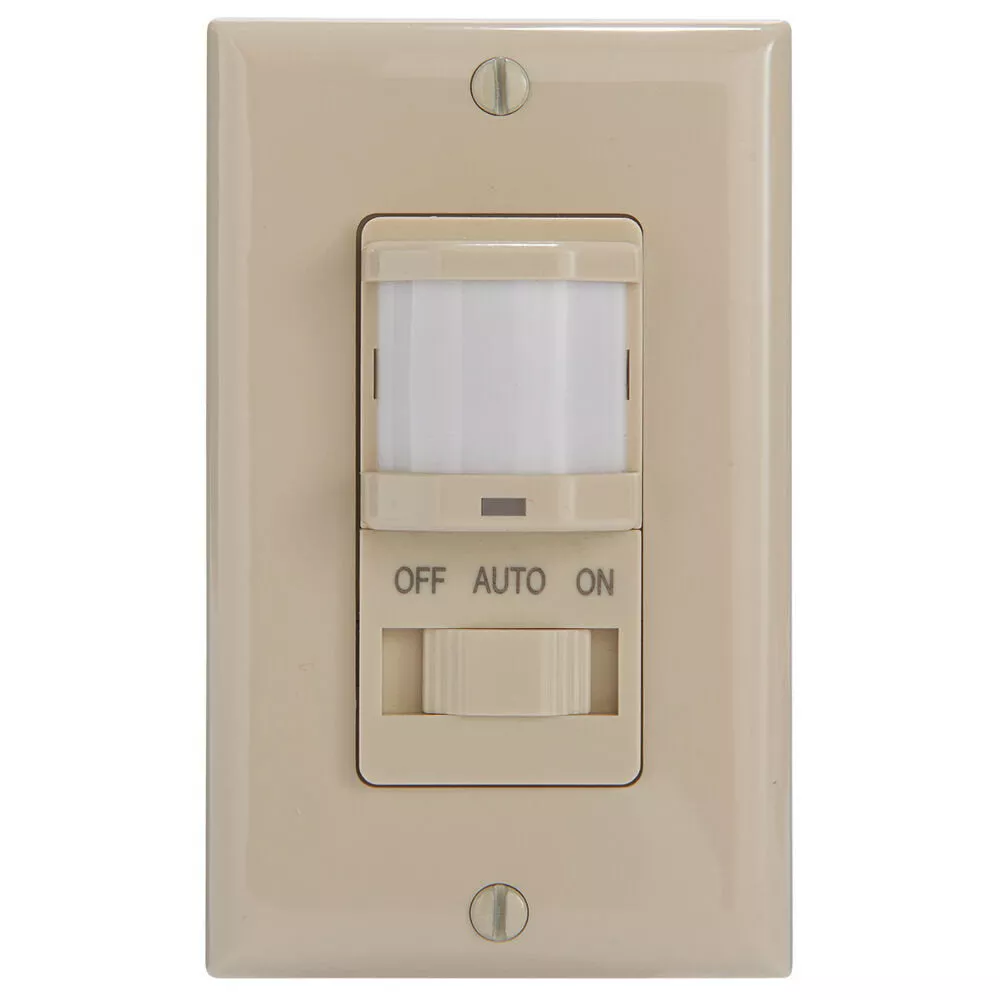

Intermatic – IOS-DSIF-IV – Residential In-Wall PIR Occupancy Sensor, Ivory

Original price was: $6.40.Current price is: $3.44.

Sale!
SKU: IOS-DSIF-IV Category:
Share

Spec Sheet  Install Manual

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.

Features:

  • Passive Infrared (PIR) sensing for presence detection
  • Adjustable PIR sensitivity
  • Adjustable time delay 15 sec to 30 min
  • Adjustable ambient light sensor override
  • Coverage: 150º, 980 ft2 with non-obstructed views
  • IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
  • ‘No neutral’ models offered for retrofit applications
  • Fits standard decorator wall plate (included)

Applications:

  • Indoor Sensing Control

Specifications:

Color Ivory Input Voltage Range(s) 120 VAC, 60 Hz
Mount Type In-Wall Neutral Connection Required Yes
Warranty Period 2-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
Sensor Switch Type Occupancy Sensor Technology PIR (Passive Infrared)
Adjustable Light Level Max Daylight Adjustable Light Level Min 30 lux
Adjustable Time Delay Max 30 min Adjustable Time Delay Min 15 sec
Ballast Fluorescent 500 VA Ballast Fluorescent Ranges 500 VA
Category Occupancy/Vacancy Sensors Web Electronic Ballast LED 500 VA
Includes Wall Plate Yes Inductive 500 VA
Inductive Load Ratings Ranges 500 VA Maximum Mounting Height (ft) 4 ft
Motor (Three-Phase) 1/8 HP Motor Three Phase Ranges 1/8 HP
PIR Coverage Area (sq ft) 980 PIR Lens 2 Coverage Pattern (degrees) 150
Rating General Purpose Tungsten (Incandescent) Range(s) 500 W
Tungsten Incandescent 500 W Operating Temperature Max (°C) 55
Operating Temperature Max (°F) 131 Operating Temperature Min (°C) 0
Operating Temperature Min (°F) 32 Product Depth (in) 1.625
Product Depth (mm) 41 Product Height (in) 2.75
Product Height (mm) 70 Product Width (in) 1 7/16
Product Width (mm) 37 Unit Carton Height (in) 5
Unit Carton Length (in) 3 Unit Carton Weight (lb) 0.4
Unit Carton Width (in) 2.25

Specs

ColorIvoryInput Voltage Range(s)120 VAC, 60 Hz
Mount TypeIn-WallNeutral Connection RequiredYes
Warranty Period2-Year limitedApplication CompatibilitiesCFL, Fluorescent, Incandescent, LED
Sensor Switch TypeOccupancySensor TechnologyPIR (Passive Infrared)
Adjustable Light Level MaxDaylightAdjustable Light Level Min30 lux
Adjustable Time Delay Max30 minAdjustable Time Delay Min15 sec
Ballast Fluorescent500 VABallast Fluorescent Ranges500 VA
CategoryOccupancy/Vacancy Sensors WebElectronic Ballast LED500 VA
Includes Wall PlateYesInductive500 VA
Inductive Load Ratings Ranges500 VAMaximum Mounting Height (ft)4 ft
Motor (Three-Phase)1/8 HPMotor Three Phase Ranges1/8 HP
PIR Coverage Area (sq ft)980PIR Lens 2 Coverage Pattern (degrees)150
RatingGeneral PurposeTungsten (Incandescent) Range(s)500 W
Tungsten Incandescent500 WOperating Temperature Max (°C)55
Operating Temperature Max (°F)131Operating Temperature Min (°C)0
Operating Temperature Min (°F)32Product Depth (in)1.625
Product Depth (mm)41Product Height (in)2.75
Product Height (mm)70Product Width (in)1 7/16
Product Width (mm)37Unit Carton Height (in)5
Unit Carton Length (in)3Unit Carton Weight (lb)0.4
Unit Carton Width (in)2.25

Dimension

Product Depth (in)1.625
Product Height (in)2.75
Product Width (in)1 7/16
