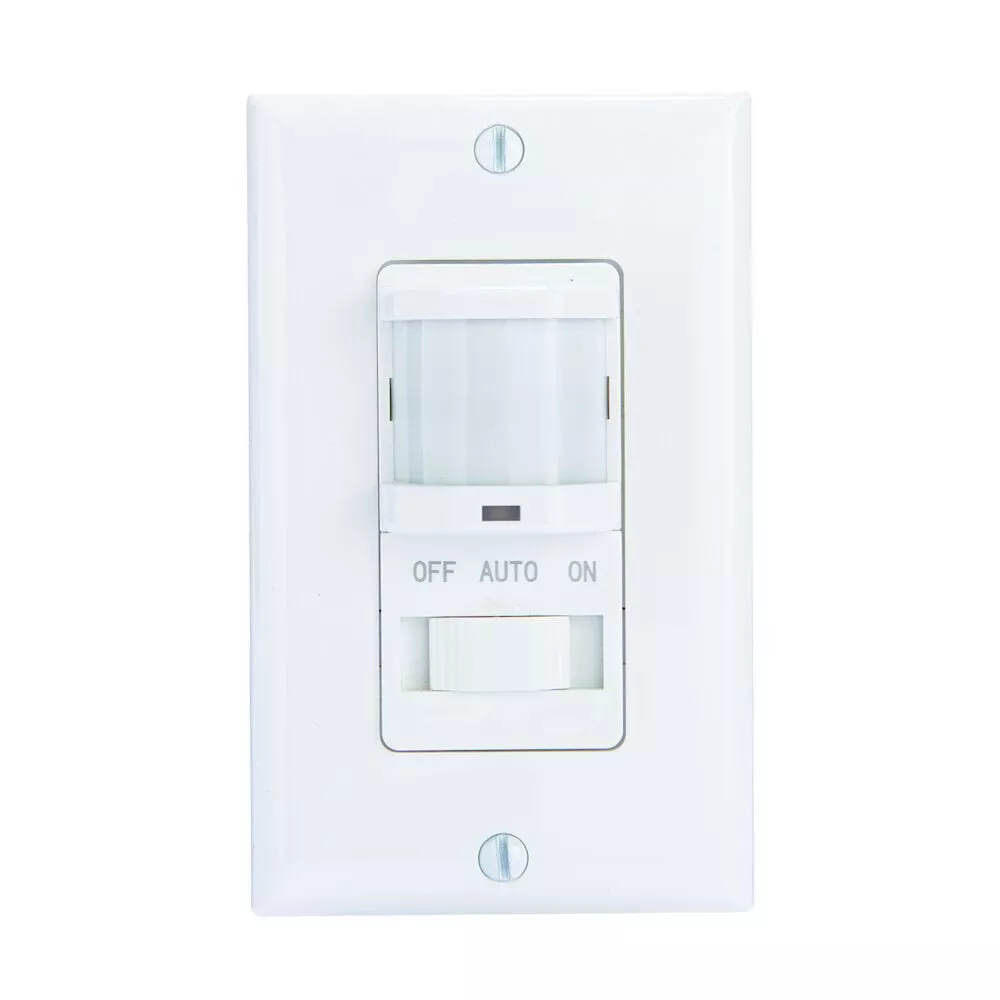

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.
Features:
- Passive Infrared (PIR) sensing for presence detection
- Adjustable PIR sensitivity
- Adjustable time delay 15 sec to 30 min
- Adjustable ambient light sensor override
- Coverage: 150º, 980 ft2 with non-obstructed views
- IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
- ‘No neutral’ models offered for retrofit applications
- Fits standard decorator wall plate (included)
Applications:
- Indoor Sensing Control
Specifications:
| Color | White | Input Voltage Range(s) | 120 VAC, 60 Hz |
| Mount Type | In-Wall | Neutral Connection Required | Yes |
| Occupancy Sensor Power Type | Line Voltage | Warranty Period | 2-Year limited |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED | Sensor Switch Type | Occupancy |
| Sensor Technology | PIR (Passive Infrared) | Adjustable Light Level Max | Daylight |
| Adjustable Light Level Min | 30 lux | Adjustable Time Delay Max | 30 min |
| Adjustable Time Delay Min | 15 sec | Ballast Fluorescent | 500 VA |
| Ballast Fluorescent Ranges | 500 VA | Category | Occupancy/Vacancy Sensors Web |
| Electronic Ballast LED | 500 VA | Includes Wall Plate | Yes |
| Inductive | 500 VA | Inductive Load Ratings Ranges | 500 VA |
| Maximum Mounting Height (ft) | 4 ft | Motor (Three-Phase) | 1/8 HP |
| Motor Three Phase Ranges | 1/8 HP | PIR Coverage Area (sq ft) | 980 |
| PIR Lens 2 Coverage Pattern (degrees) | 150 | Rating | General Purpose |
| Tungsten (Incandescent) Range(s) | 500 W | Tungsten Incandescent | 500 W |
| Operating Temperature Max (°C) | 55 | Operating Temperature Max (°F) | 131 |
| Operating Temperature Min (°C) | 0 | Operating Temperature Min (°F) | 32 |
| Product Depth (in) | 1.625 | Product Depth (mm) | 41 |
| Product Height (in) | 2.75 | Product Height (mm) | 70 |
| Product Width (in) | 1 7/16 | Product Width (mm) | 37 |
| Unit Carton Height (in) | 5 | Unit Carton Length (in) | 3 |
| Unit Carton Weight (lb) | 0.4 | Unit Carton Width (in) | 2.25 |
Specs
ColorWhiteInput Voltage Range(s)120 VAC, 60 Hz
Mount TypeIn-WallNeutral Connection RequiredYes
Occupancy Sensor Power TypeLine VoltageWarranty Period2-Year limited
Application CompatibilitiesCFL, Fluorescent, Incandescent, LEDSensor Switch TypeOccupancy
Sensor TechnologyPIR (Passive Infrared)Adjustable Light Level MaxDaylight
Adjustable Light Level Min30 luxAdjustable Time Delay Max30 min
Adjustable Time Delay Min15 secBallast Fluorescent500 VA
Ballast Fluorescent Ranges500 VACategoryOccupancy/Vacancy Sensors Web
Electronic Ballast LED500 VAIncludes Wall PlateYes
Inductive500 VAInductive Load Ratings Ranges500 VA
Maximum Mounting Height (ft)4 ftMotor (Three-Phase)1/8 HP
Motor Three Phase Ranges1/8 HPPIR Coverage Area (sq ft)980
PIR Lens 2 Coverage Pattern (degrees)150RatingGeneral Purpose
Tungsten (Incandescent) Range(s)500 WTungsten Incandescent500 W
Operating Temperature Max (°C)55Operating Temperature Max (°F)131
Operating Temperature Min (°C)0Operating Temperature Min (°F)32
Product Depth (in)1.625Product Depth (mm)41
Product Height (in)2.75Product Height (mm)70
Product Width (in)1 7/16Product Width (mm)37
Unit Carton Height (in)5Unit Carton Length (in)3
Unit Carton Weight (lb)0.4Unit Carton Width (in)2.25
Dimension
Product Depth (in)1.625
Product Height (in)2.75
Product Width (in)1 7/16
