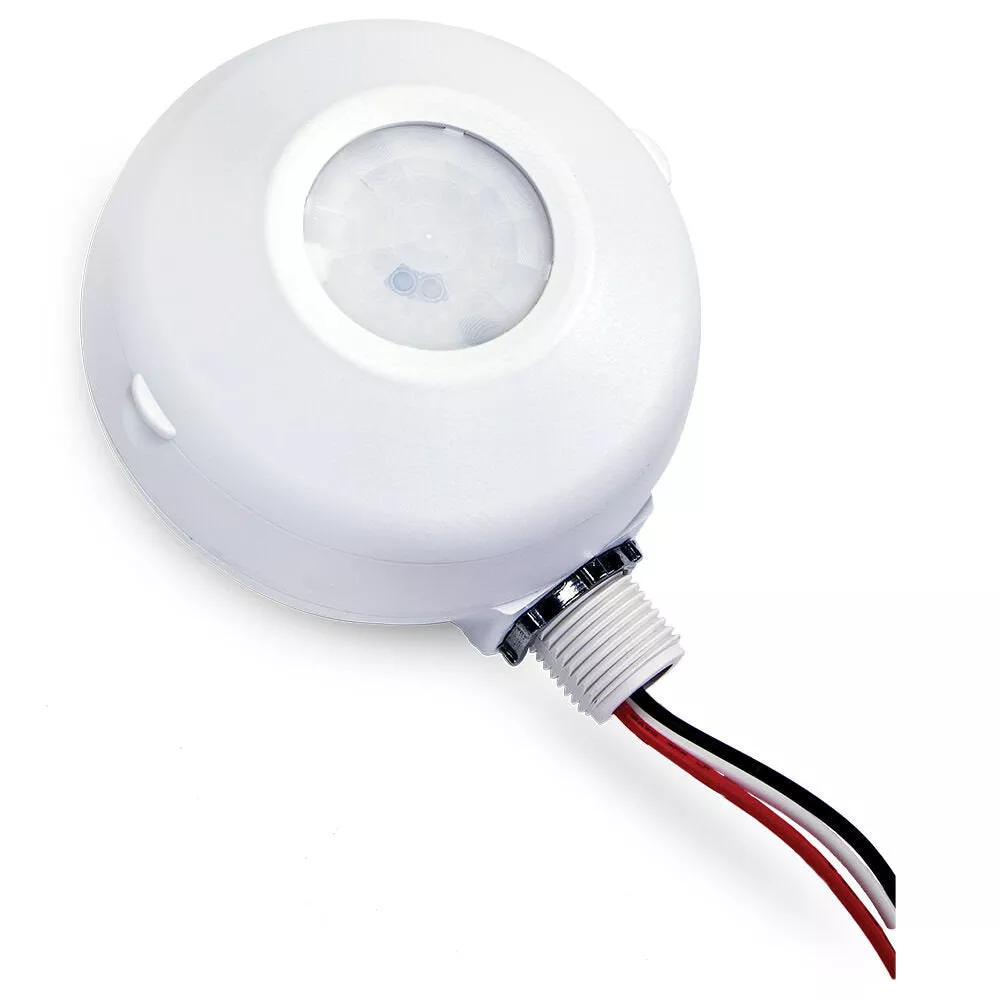

Intermatic – IOS-HB-U – Commercial Grade High Bay Ceiling Mount PIR Occupancy Sensor, White

Original price was: $18.91.Current price is: $14.11.

Sale!
SKU: IOS-HB-U Category:
Share

Spec Sheet  Install Manual

The IOS-HB-U occupancy sensor is designed for automatic lighting control in high bay applications, such as warehouses, distribution centers, gymnasiums, and areas with direct access to the lighting fixtures, specifically for indoor locations. This product contains a passive infrared sensor (PIR) and is made up of two parts: a control module and a lens.

Features:

  • Passive Infrared (PIR) sensing for presence detection
  • Two lenses included
  • Coverage: 1200 ft2 (Lens 1) or 2800 ft2 (Lens 2) when mounted at 15 to 50 ft
  • Zero-crossing technology for long life and performance
  • Adjustable ambient light sensor override
  • Incandescent/Fluorescent/CFL/LED compatible

Applications:

  • Indoor Sensing Control

Specifications:

Color White Input Voltage Range(s) 120/277 VAC, 60 Hz
Resistive 10 A, 120 VAC Mount Type Ceiling, Fixture
Resistive Load Ratings Ranges 10 A, 120 VAC Occupancy Sensor Power Type Line Voltage
Warranty Period 2-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
Sensor Switch Type Occupancy Sensor Technology PIR (Passive Infrared), Zero-crossing
Adjustable Light Level Max 150 fc Adjustable Light Level Min 10 fc
Adjustable Time Delay Max 30 min Adjustable Time Delay Min 15 sec
Category Occupancy/Vacancy Sensors Web Electronic Ballast LED 800 VA, 120 VAC; 1600 VA, 277 VAC
Maximum Mounting Height (ft) 15-50 ft Motor (Three-Phase) 1/4 HP, 120 VAC
Motor Three Phase Ranges 1/4 HP, 120 VAC PIR Coverage Area (sq ft) 1200 (Lens 1), 2800 (Lens 2)
PIR Lens 2 Coverage Pattern (degrees) 360 PIR Lens 2 Coverage Pattern (degrees) 360
Rating General Purpose Resistive Heater 10 A
Tungsten (Incandescent) Range(s) 800 W, 120 VAC Tungsten Incandescent 800 W, 120 VAC
Operating Temperature Max (°C) 55 Operating Temperature Max (°F) 131
Operating Temperature Min (°C) 0 Operating Temperature Min (°F) 32
Product Height (in) 2 3/4 Product Height (mm) 70
Unit Carton Height (in) 3.5 Unit Carton Length (in) 5
Unit Carton Weight (lb) 0.6 Unit Carton Width (in) 4.25

Specs

ColorWhiteInput Voltage Range(s)120/277 VAC, 60 Hz
Resistive10 A, 120 VACMount TypeCeiling, Fixture
Resistive Load Ratings Ranges10 A, 120 VACOccupancy Sensor Power TypeLine Voltage
Warranty Period2-Year limitedApplication CompatibilitiesCFL, Fluorescent, Incandescent, LED
Sensor Switch TypeOccupancySensor TechnologyPIR (Passive Infrared), Zero-crossing
Adjustable Light Level Max150 fcAdjustable Light Level Min10 fc
Adjustable Time Delay Max30 minAdjustable Time Delay Min15 sec
CategoryOccupancy/Vacancy Sensors WebElectronic Ballast LED800 VA, 120 VAC; 1600 VA, 277 VAC
Maximum Mounting Height (ft)15-50 ftMotor (Three-Phase)1/4 HP, 120 VAC
Motor Three Phase Ranges1/4 HP, 120 VACPIR Coverage Area (sq ft)1200 (Lens 1), 2800 (Lens 2)
PIR Lens 2 Coverage Pattern (degrees)360PIR Lens 2 Coverage Pattern (degrees)360
RatingGeneral PurposeResistive Heater10 A
Tungsten (Incandescent) Range(s)800 W, 120 VACTungsten Incandescent800 W, 120 VAC
Operating Temperature Max (°C)55Operating Temperature Max (°F)131
Operating Temperature Min (°C)0Operating Temperature Min (°F)32
Product Height (in)2 3/4Product Height (mm)70
Unit Carton Height (in)3.5Unit Carton Length (in)5
Unit Carton Weight (lb)0.6Unit Carton Width (in)4.25
