Home » Shop » hot sale » Intermatic – IOS-PP24 – Commercial Grade Low-Voltage Power Pack

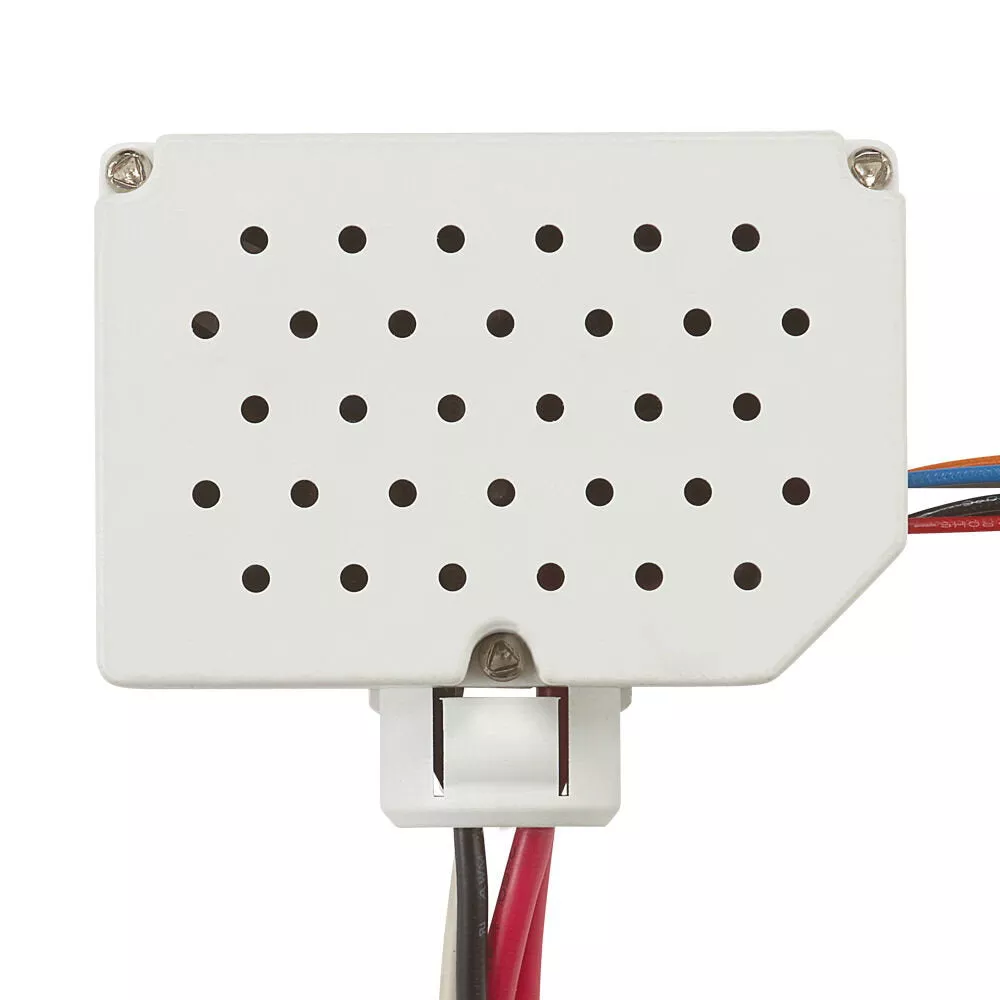

Intermatic – IOS-PP24 – Commercial Grade Low-Voltage Power Pack

Original price was: $13.91.Current price is: $9.78.

Sale!
SKU: IOS-PP24 Category:
Share

Spec Sheet  Install Manual

The IOS-PP24 Power Pack supplies low voltage lighting control system. The power pack supplies low voltage power to occupancy sensors and other control devices, switching line voltage in response to signals from control devices.

Features:

  • Powers up to 6 Intermatic Low Voltage Sensors
  • Zero-crossing technology for long life and performance
  • Incandescent/Fluorescent/CFL/LED compatible
  • 24 V Power Supply
  • Mounts directly to standard or deep 4″ junction box
  • Allows for remote switch override

Applications:

  • Indoor Sensing Control

Specifications:

Color White Input Voltage Range(s) 120/230/240/277 VAC, 50/60 Hz
Occupancy Sensor Power Type Low Voltage Warranty Period 2-Year limited
Application Compatibilities CFL, Fluorescent, Incandescent, LED Sensor Technology Zero-crossing
Ballast Fluorescent 20 A Ballast Fluorescent Ranges 20 A
Category Occupancy/Vacancy Sensors Web Electronic Ballast LED 500 W
Inductive 20 A, 120 VAC, 20 A, 240 VAC, 20 A, 277 VAC Inductive Load Ratings Ranges 20 A, 120/240/277 VAC
Maximum Mounting Height (ft) No maximum mounting height Motor (Three-Phase) 1 HP, 120 VAC, 1 HP, 240 VAC
Motor Three Phase Ranges 1 HP, 120/240 VAC PIR Coverage Area (sq ft) Depends on sensor being used
Power Supply Output 150mA @ 24VDC (with relay connected) Tungsten (Incandescent) Range(s) 15 A, 120 VAC, 50/60 Hz; 5 A, 250 VAC, 50/60 Hz
Tungsten Incandescent 15 A, 120 VAC, 50 Hz, 15 A, 120 VAC, 60 Hz, 5 A, 250 VAC, 50 Hz, 5 A, 250 VAC, 60 Hz Operating Temperature Max (°C) 55
Operating Temperature Max (°F) 131 Operating Temperature Min (°C) 0
Operating Temperature Min (°F) 32 Product Depth (in) 1 5/8
Product Depth (mm) 41 Product Height (in) 2 3/4
Product Height (mm) 70 Product Width (in) 1 15/16
Product Width (mm) 49 Unit Carton Height (in) 2.5
Unit Carton Length (in) 3.75 Unit Carton Weight (lb) 0.35
Unit Carton Width (in) 3

Specs

ColorWhiteInput Voltage Range(s)120/230/240/277 VAC, 50/60 Hz
Occupancy Sensor Power TypeLow VoltageWarranty Period2-Year limited
Application CompatibilitiesCFL, Fluorescent, Incandescent, LEDSensor TechnologyZero-crossing
Ballast Fluorescent20 ABallast Fluorescent Ranges20 A
CategoryOccupancy/Vacancy Sensors WebElectronic Ballast LED500 W
Inductive20 A, 120 VAC, 20 A, 240 VAC, 20 A, 277 VACInductive Load Ratings Ranges20 A, 120/240/277 VAC
Maximum Mounting Height (ft)No maximum mounting heightMotor (Three-Phase)1 HP, 120 VAC, 1 HP, 240 VAC
Motor Three Phase Ranges1 HP, 120/240 VACPIR Coverage Area (sq ft)Depends on sensor being used
Power Supply Output150mA @ 24VDC (with relay connected)Tungsten (Incandescent) Range(s)15 A, 120 VAC, 50/60 Hz; 5 A, 250 VAC, 50/60 Hz
Tungsten Incandescent15 A, 120 VAC, 50 Hz, 15 A, 120 VAC, 60 Hz, 5 A, 250 VAC, 50 Hz, 5 A, 250 VAC, 60 HzOperating Temperature Max (°C)55
Operating Temperature Max (°F)131Operating Temperature Min (°C)0
Operating Temperature Min (°F)32Product Depth (in)1 5/8
Product Depth (mm)41Product Height (in)2 3/4
Product Height (mm)70Product Width (in)1 15/16
Product Width (mm)49Unit Carton Height (in)2.5
Unit Carton Length (in)3.75Unit Carton Weight (lb)0.35
Unit Carton Width (in)3

Dimension

Product Depth (in)1 5/8
Product Height (in)2 3/4
Product Width (in)1 15/16
