Spec Sheet Install Manual

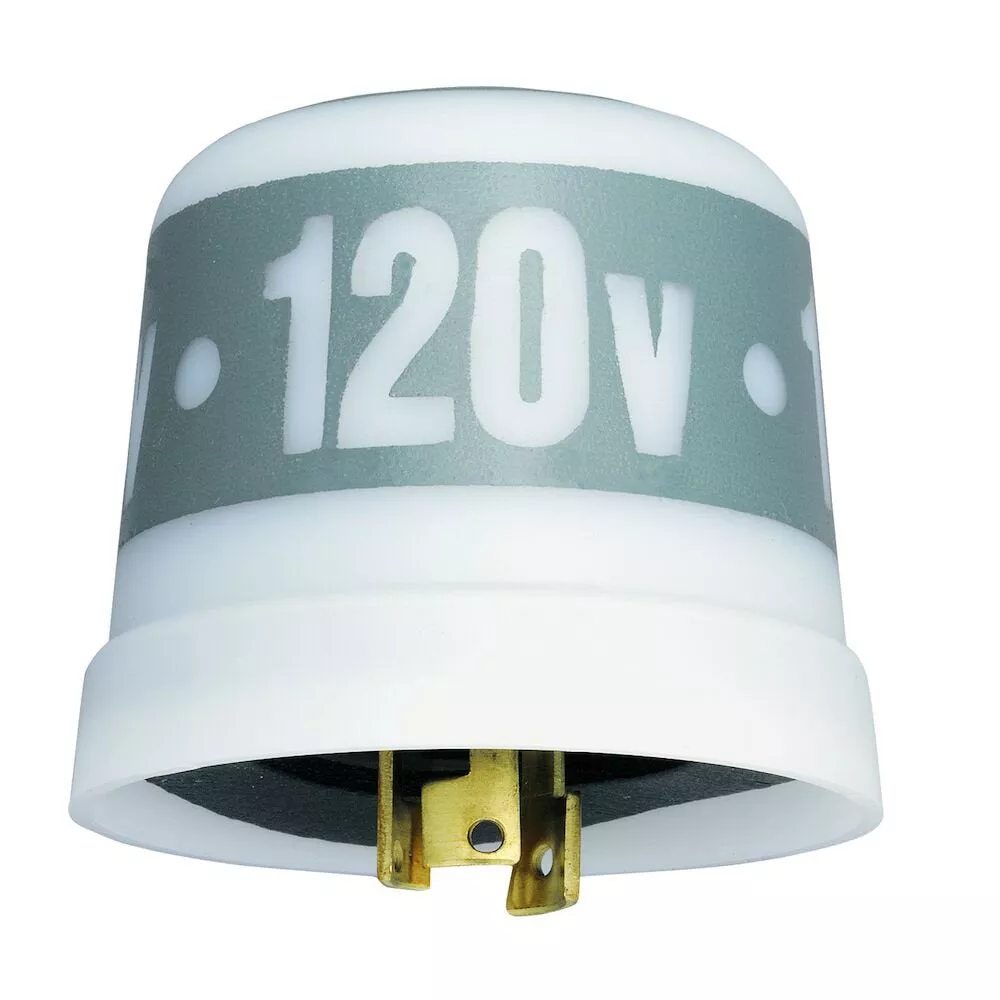

These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.
Features:
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Integral high impact thermoplastic housing
- Locking type plug for quick installation and changeover
- Delay feature prevents unwanted OFF switching
- Complies with ANSI C136.10 standard
- Tested to 3,650 ON/OFF cycles
Applications:
- Outdoor Lighting Control
Specifications:
| Input Voltage Range(s) | 480 VAC, 50/60 Hz | Usage Environments | Outdoor |
| Photocontrol Style | Locking type | Surge Protection Technology | Spark Gap Surge Arrestor |
| Warranty Period | 2-Year limited | Application Compatibilities | HID, Incandescent |
| Activation Off | 15 fc | Activation On | 5 fc |
| Category | Locking Type Thermal Photocontrols Web | Cover Color | Gray with Yellow Band |
| Fail Mode | ON | Housing Material | Polypropylene |
| Magnetic Ballast (NO) | 8.3 A, 4000 VA | Magnetic Ballast Range(s) | 8.3 A, 4000 VA |
| Photo Control Switch Type | Mechanical Bimetal | Photocell Type | Cadmium Sulfide |
| Photocontrol Sensor Location | Side | Photocontrol Type | Thermal |
| Sensor Time Delay | 30 sec to 90 sec | Tungsten (NO) | 15 A, 7200 W |
| Tungsten Range(s) | 15 A, 7200 W | Operating Temperature Max (°C) | 70 |
| Operating Temperature Max (°F) | 158 | Operating Temperature Min (°C) | -40 |
| Operating Temperature Min (°F) | -40 | Product Height (in) | 2 3/4 |
| Product Height (mm) | 69.9 | Unit Carton Height (in) | 3.131 |
| Unit Carton Length (in) | 3.131 | Unit Carton Weight (lb) | 0.2 |
| Unit Carton Width (in) | 3.131 |
Specs
Input Voltage Range(s)480 VAC, 50/60 HzUsage EnvironmentsOutdoor
Photocontrol StyleLocking typeSurge Protection TechnologySpark Gap Surge Arrestor
Warranty Period2-Year limitedApplication CompatibilitiesHID, Incandescent
Activation Off15 fcActivation On5 fc
CategoryLocking Type Thermal Photocontrols WebCover ColorGray with Yellow Band
Fail ModeONHousing MaterialPolypropylene
Magnetic Ballast (NO)8.3 A, 4000 VAMagnetic Ballast Range(s)8.3 A, 4000 VA
Photo Control Switch TypeMechanical BimetalPhotocell TypeCadmium Sulfide
Photocontrol Sensor LocationSidePhotocontrol TypeThermal
Sensor Time Delay30 sec to 90 secTungsten (NO)15 A, 7200 W
Tungsten Range(s)15 A, 7200 WOperating Temperature Max (°C)70
Operating Temperature Max (°F)158Operating Temperature Min (°C)-40
Operating Temperature Min (°F)-40Product Height (in)2 3/4
Product Height (mm)69.9Unit Carton Height (in)3.131
Unit Carton Length (in)3.131Unit Carton Weight (lb)0.2
Unit Carton Width (in)3.131
