Install Manual

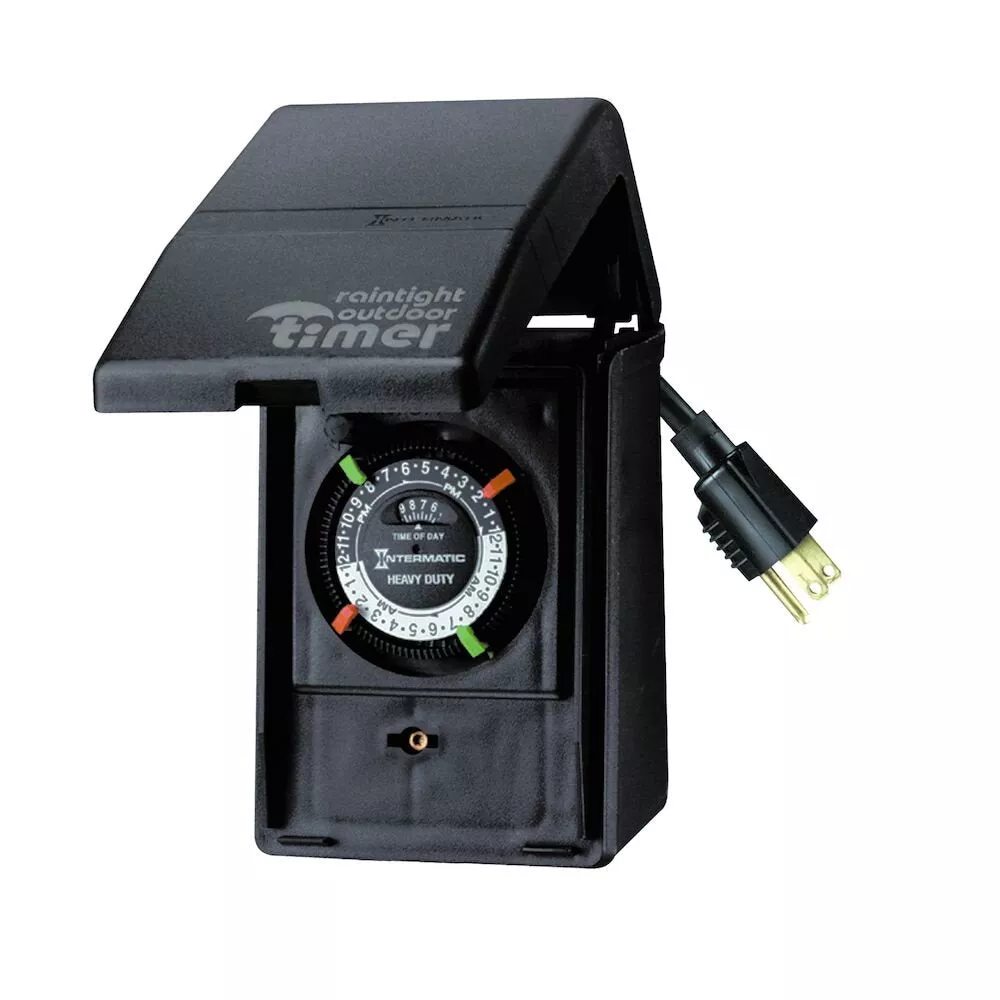

These plug-in timers are grounded and utilize a flip-open enclosure rated for outdoor use. These heavy-duty timers are great for providing timer function to pumps, landscaping or holiday lighting. 24-hour timers come with 2 On and 2 Off settings.
Features:
- 2 ON/2 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers
- Minimum 30-min ON/OFF time
- Built into outdoor rated enclosure with clear or black flip cover
- Grounded standard or locking type style NEMA plug and receptacle
- Plugs directly into wall outlet
Applications:
- Landscape Water Control
- Outdoor Lighting Control
- Outdoor Water Fountains
- Pool Pump
Specifications:
| Color | Black | Input Voltage Range(s) | 120 VAC, 60 Hz |
| Mechanism Type | Analog/Mechanical | Resistive | 15 A, 120 VAC, 60 Hz |
| Usage Environments | Outdoor | Cord Size | 13″ |
| Minimum ON/OFF Times | 30 min | Plug Configurations | 5-15 |
| ON/OFF Operations | 2 | Warranty Period | 1-Year limited |
| Application Compatibilities | Incandescent, Tungsten | Cover Color | Black |
| Incandescent Load Ratings | 1800 W, 120 VAC, 60 Hz | Motor (Three-Phase) | 1 HP, 15 FLA, 90 LRA @ 120 VAC |
| Rating | General Purpose, Weather Resistant | Tungsten (NO) | 1800 W, 120 VAC, 60 Hz |
| Product Depth (in) | 3 1/4 | Product Depth (mm) | 83 |
| Product Height (in) | 5 5/8 | Product Height (mm) | 143 |
| Product Width (in) | 3 5/8 | Product Width (mm) | 92 |
| Unit Carton Height (in) | 6.75 | Unit Carton Length (in) | 3.75 |
| Unit Carton Weight (lb) | 1.098 | Unit Carton Width (in) | 7 |
Specs
ColorBlackInput Voltage Range(s)120 VAC, 60 Hz
Mechanism TypeAnalog/MechanicalResistive15 A, 120 VAC, 60 Hz
Usage EnvironmentsOutdoorCord Size13″
Minimum ON/OFF Times30 minPlug Configurations5-15
ON/OFF Operations2Warranty Period1-Year limited
Application CompatibilitiesIncandescent, TungstenCover ColorBlack
Incandescent Load Ratings1800 W, 120 VAC, 60 HzMotor (Three-Phase)1 HP, 15 FLA, 90 LRA @ 120 VAC
RatingGeneral Purpose, Weather ResistantTungsten (NO)1800 W, 120 VAC, 60 Hz
Product Depth (in)3 1/4Product Depth (mm)83
Product Height (in)5 5/8Product Height (mm)143
Product Width (in)3 5/8Product Width (mm)92
Unit Carton Height (in)6.75Unit Carton Length (in)3.75
Unit Carton Weight (lb)1.098Unit Carton Width (in)7
Dimension
Product Depth (in)3 1/4
Product Height (in)5 5/8
Product Width (in)3 5/8
