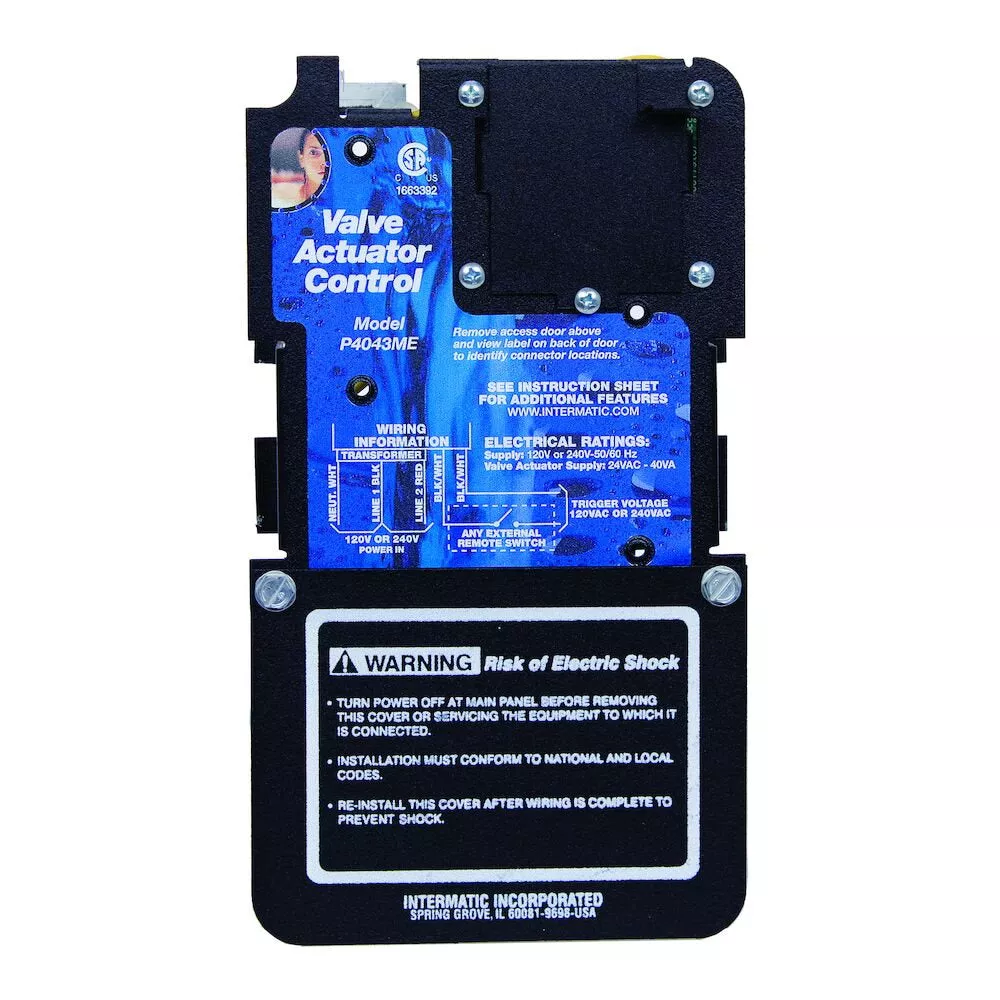

This switching device is most suited for controlling electronic valve actuators which direct the flow of water to desired equipment. It can also be used with a spring wound timer or simple switch to control fountains or other aquatic features.
Features:
- Easily snaps into most existing Intermatic enclosures with available mechanism support bracket
- Controls up to three valve actuators
- Switches heater thermostat HIGH/LOW
- Remote control capabilities
Applications:
- Valve Control
Specifications:
| Input Voltage Range(s) | 120/240 VAC, 50/60 Hz | Warranty Period | 1-Year limited |
| Actuator Supply Voltage | 24 VAC, 40 VA | Unit Carton Height (in) | 6 |
| Unit Carton Length (in) | 9.5 | Unit Carton Weight (lb) | 1.996 |
| Unit Carton Width (in) | 6.38 |
Specs
Input Voltage Range(s)120/240 VAC, 50/60 HzWarranty Period1-Year limited
Actuator Supply Voltage24 VAC, 40 VAUnit Carton Height (in)6
Unit Carton Length (in)9.5Unit Carton Weight (lb)1.996
Unit Carton Width (in)6.38
