Install Manual

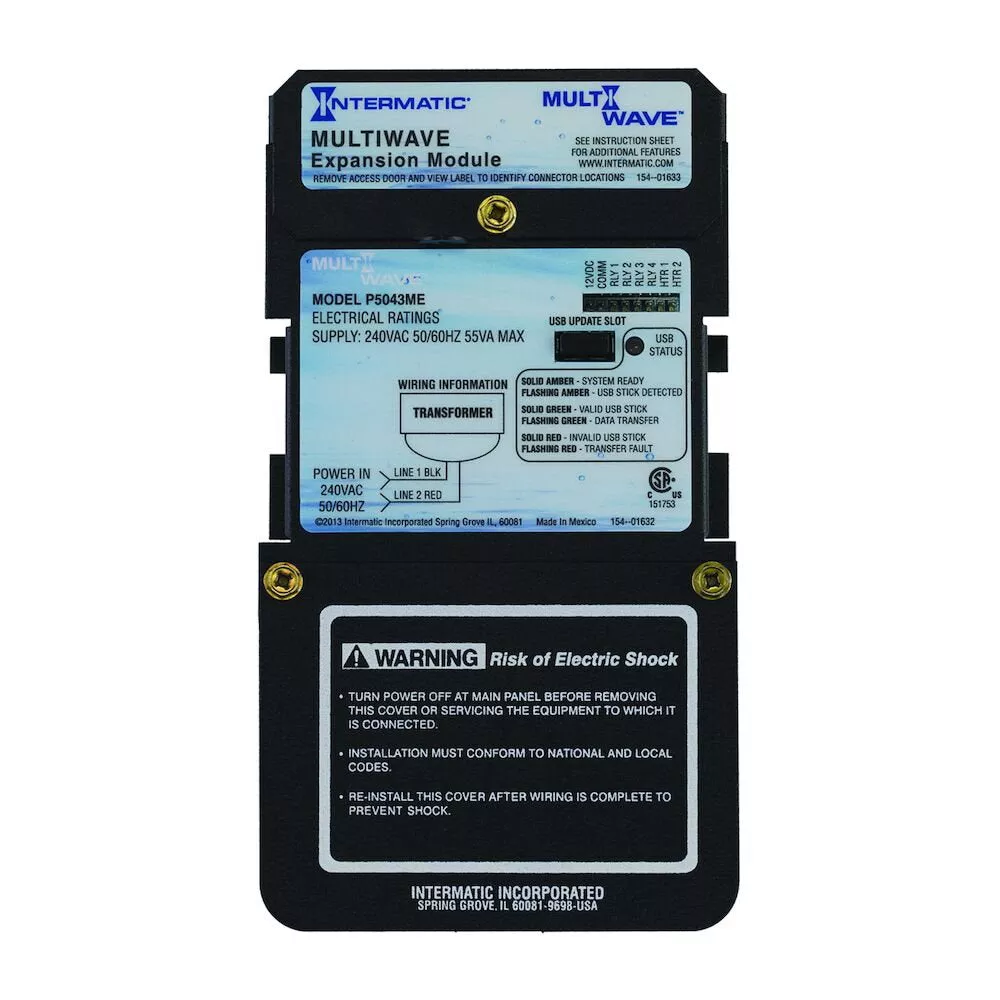

Use the Expansion Module exclusively with the MultiWave Basic system to boost overall control capacity.
Features:
- Controls most name brands of variable speed pumps
- Controls 4 actuator ports (actuators not included), 2 for pool to spa valve rotation, 1 for water feature valve rotation and 1 for solar applications
- Controls 2 heater circuits
- Remote switch for simple ON/OFF control of several components at the same time
- USB port for ease of upgrading firmware
- See MultiWave ECS and ECS Plus for complete systems
Applications:
- Valve Control
Specifications:
| Input Voltage Range(s) | 55 VA, 240 VAC, 50/60 Hz | Warranty Period | 1-Year limited |
| Actuator Supply Voltage | 24 VAC, 18 VA MAX for each actuator | Heater Control Output | 24 VAC, 1 A MAX |
| Motor Control Output | 24 VAC or 24 VDC, 500 mA | Remote Switch Output | 24 VAC, 55 mA MAX |
| Unit Carton Height (in) | 6 | Unit Carton Length (in) | 9.5 |
| Unit Carton Weight (lb) | 3 | Unit Carton Width (in) | 6.38 |
Specs
Input Voltage Range(s)55 VA, 240 VAC, 50/60 HzWarranty Period1-Year limited
Actuator Supply Voltage24 VAC, 18 VA MAX for each actuatorHeater Control Output24 VAC, 1 A MAX
Motor Control Output24 VAC or 24 VDC, 500 mARemote Switch Output24 VAC, 55 mA MAX
Unit Carton Height (in)6Unit Carton Length (in)9.5
Unit Carton Weight (lb)3Unit Carton Width (in)6.38
