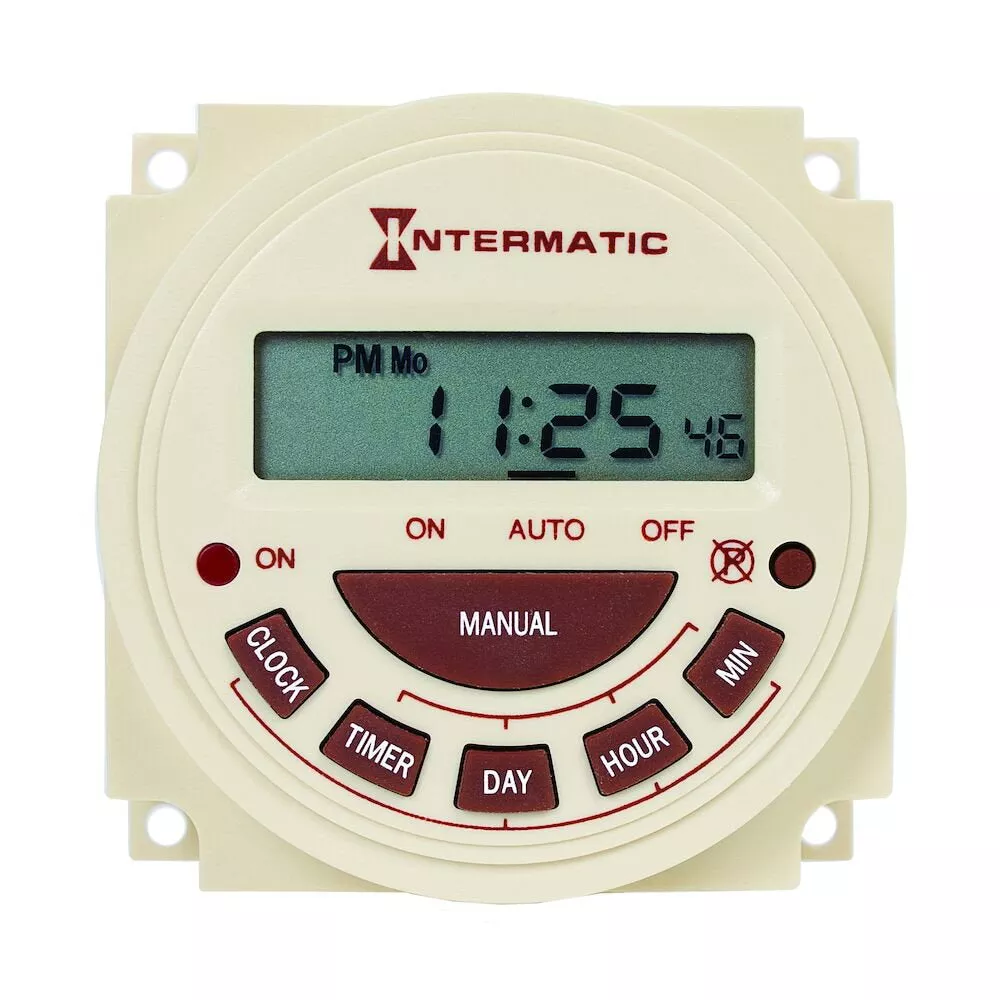

Intermatic – PB373E – 7-Day 120V Electronic Panel Mount Timer

Original price was: $12.92.Current price is: $7.20.

Sale!
SKU: PB373E Category:
Share

Install Manual

These compact Electronic Timers are specially suited for applications where equipment needs to be cycled ON and OFF up to 8 times per day, and where automatic operation of the equipment requires occasional override by someone other than a qualified service professional. They offer rugged construction, resistance to surges and humidity, operate between wide temperature extremes and come with a 5 year service life replaceable lithium battery. A light indicator illuminates when the timer is in the ON position. Select feature allows timers to be continuously ON, OFF or in AUTO mode.

Features:

  • 24-hour and 7-day models
  • Turn equipment ON/OFF up to 8 times per day
  • Select feature enables timers to be continuously in ON/OFF/AUTO mode
  • Rugged construction
  • Beige, plastic enclosure
  • 3-year service life replaceable lithium battery

Applications:

  • Motor Control
  • Pump Control

Specifications:

Backup Type Battery Input Voltage Range(s) 20 A, 120 VAC, 50/60 Hz
Operation Mode 7-day Resistive 20 A, 120 VAC, 50 Hz, 20 A, 120 VAC, 60 Hz
Switch Type SPST ON/OFF Operations 8
Resistive Load Ratings Ranges 20 A, 120 VAC, 50/60 Hz Backup Protection Time 3 years
Warranty Period 1-Year limited Battery Service Type Replaceable
Battery Type Lithium Motor (Three-Phase) 1 HP, 16 FLA @ 120 VAC, 50 Hz, 1 HP, 16 FLA @ 120 VAC, 60 Hz
Motor Three Phase Ranges 1 HP, 16 FLA @ 120 VAC, 50/60 Hz Product Depth (in) 1.0625
Product Depth (mm) 27 Product Height (in) 2.375
Product Height (mm) 60.3 Product Width (in) 2.375
Product Width (mm) 60.3 Unit Carton Height (in) 2.8
Unit Carton Length (in) 2.7 Unit Carton Weight (lb) 0.25
Unit Carton Width (in) 1.8

Specs

Backup TypeBatteryInput Voltage Range(s)20 A, 120 VAC, 50/60 Hz
Operation Mode7-dayResistive20 A, 120 VAC, 50 Hz, 20 A, 120 VAC, 60 Hz
Switch TypeSPSTON/OFF Operations8
Resistive Load Ratings Ranges20 A, 120 VAC, 50/60 HzBackup Protection Time3 years
Warranty Period1-Year limitedBattery Service TypeReplaceable
Battery TypeLithiumMotor (Three-Phase)1 HP, 16 FLA @ 120 VAC, 50 Hz, 1 HP, 16 FLA @ 120 VAC, 60 Hz
Motor Three Phase Ranges1 HP, 16 FLA @ 120 VAC, 50/60 HzProduct Depth (in)1.0625
Product Depth (mm)27Product Height (in)2.375
Product Height (mm)60.3Product Width (in)2.375
Product Width (mm)60.3Unit Carton Height (in)2.8
Unit Carton Length (in)2.7Unit Carton Weight (lb)0.25
Unit Carton Width (in)1.8

Dimension

Product Depth (in)1.0625
Product Height (in)2.375
Product Width (in)2.375
