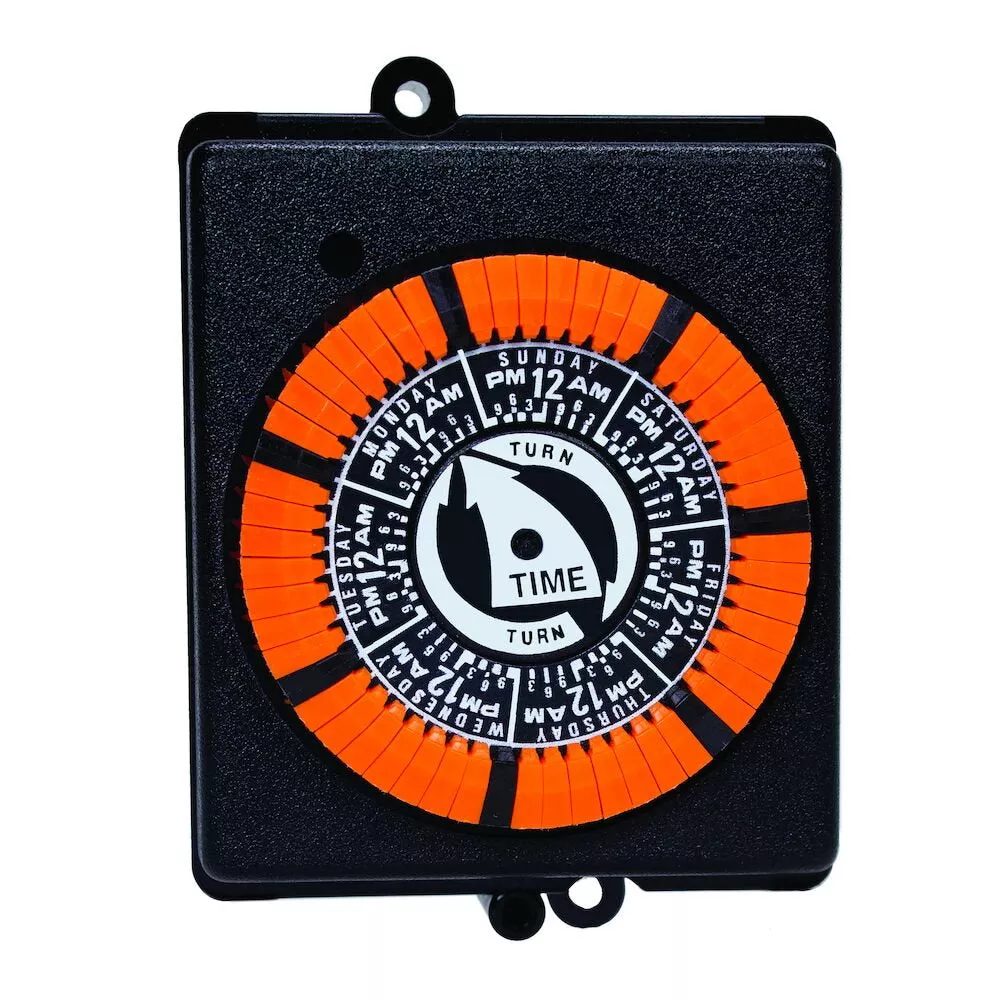

These timers provide automatic control for pumps, cleaners and other types of loads. Timers have three-way mounting; flush in round opening, raised in rectangular opening or on base. Quick connect terminals for easy installation.
Features:
- Automated control for pumps, cleaners and other types of loads
- 3 different mounting methods
- Quick connect terminals for easy installation
- 24-hour timing cycle – MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals
- 7-day timing cycle – 6 to 162-hr ON time, 3-hr intervals
Applications:
- Motor Control
- Pump Control
Specifications:
| Input Voltage Range(s) | 120 VAC, 60 Hz | Number Of Circuits | 1 |
| Operation Mode | 7-day | Resistive | 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz |
| Switch Type | SPST | Wiring Option | (4) 1/4″ male (2) for load (2) for independent clock motor, Terminals |
| Resistive Load Ratings Ranges | 20 A, 120-277 VAC, 60 Hz | Warranty Period | 1-Year limited |
| Captive Trippers | 56 | Motor (Three-Phase) | 1 HP, 16 FLA @ 120 VAC, 60 Hz, 2 HP, 12 FLA @ 240 VAC, 60 Hz |
| Pilot Duty (NO) | 360 VA, 120 VAC, 60 Hz, 360 VA, 208 VAC, 60 Hz, 360 VA, 240 VAC, 60 Hz, 360 VA, 277 VAC, 60 Hz | Pilot Duty Load Ratings Ranges | 360 VA, 120-240 VAC, 60 Hz |
| Tungsten (NO) | 1250 W, 125 VAC, 60 Hz | Product Depth (in) | 1.953 |
| Product Depth (mm) | 49.6 | Product Height (in) | 3.333 |
| Product Height (mm) | 84.6 | Product Width (in) | 2.813 |
| Product Width (mm) | 71.4 | Unit Carton Height (in) | 4 |
| Unit Carton Length (in) | 3 | Unit Carton Weight (lb) | 0.429 |
| Unit Carton Width (in) | 2.75 |
