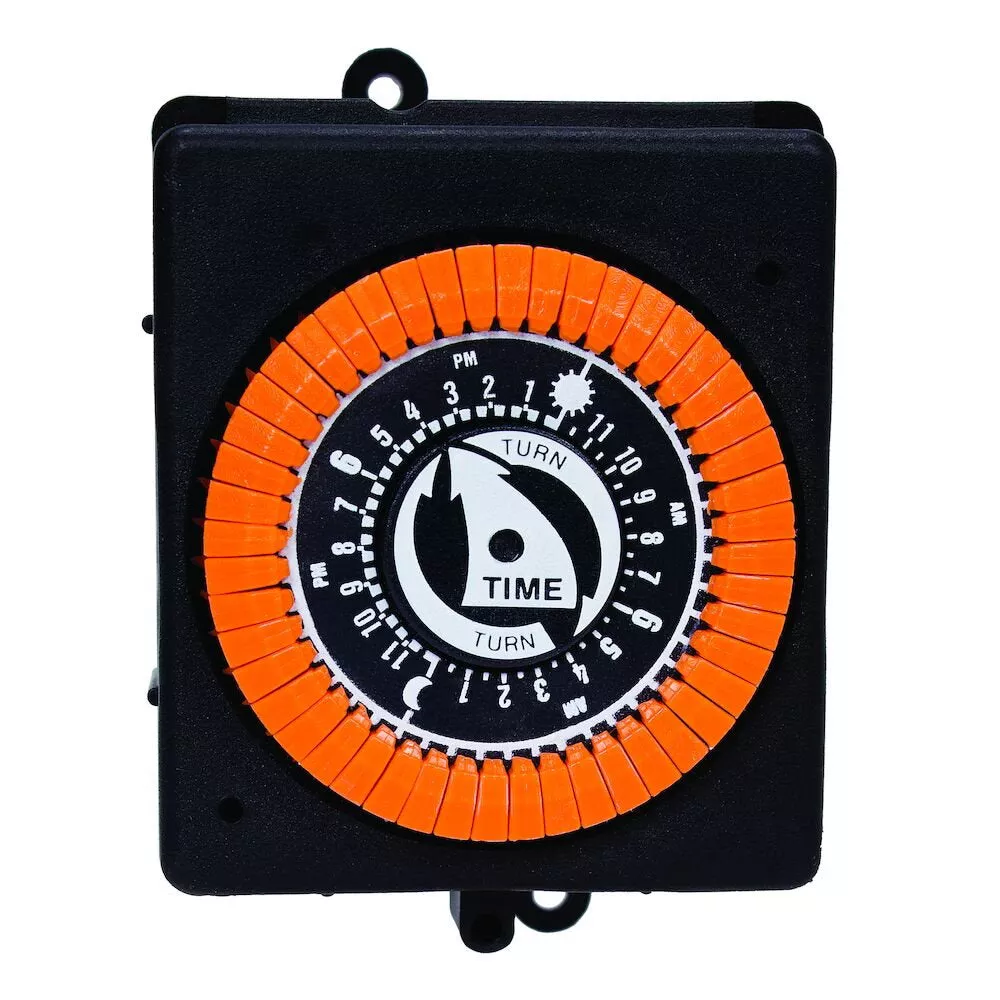

These timers provide automatic control for pumps, cleaners and other types of loads. Timers have three-way mounting; flush in round opening, raised in rectangular opening or on base. Quick connect terminals for easy installation.
Features:
- Automated control for pumps, cleaners and other types of loads
- 3 different mounting methods
- Quick connect terminals for easy installation
- 24-hour timing cycle – MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals
- 7-day timing cycle – 6 to 162-hr ON time, 3-hr intervals
Applications:
- Motor Control
- Pump Control
Specifications:
| Input Voltage Range(s) | 120 VAC, 60 Hz | Number Of Circuits | 1 |
| Operation Mode | 24 hour | Resistive | 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz |
| Switch Type | SPST | Wiring Option | (4) 1/4″ male (2) for load (2) for independent clock motor, Terminals |
| Resistive Load Ratings Ranges | 20 A, 120-277 VAC, 60 Hz | Warranty Period | 1-Year limited |
| Captive Trippers | 48 | Motor (Three-Phase) | 1 HP, 16 FLA @ 120 VAC, 60 Hz, 2 HP, 12 FLA @ 240 VAC, 60 Hz |
| Pilot Duty (NO) | 360 VA, 120 VAC, 60 Hz, 360 VA, 208 VAC, 60 Hz, 360 VA, 240 VAC, 60 Hz, 360 VA, 277 VAC, 60 Hz | Pilot Duty Load Ratings Ranges | 360 VA, 120-240 VAC, 60 Hz |
| Tungsten (NO) | 1250 W, 125 VAC, 60 Hz | Product Depth (in) | 1.953 |
| Product Depth (mm) | 49.6 | Product Height (in) | 3.333 |
| Product Height (mm) | 84.6 | Product Width (in) | 2.813 |
| Product Width (mm) | 71.4 | Unit Carton Height (in) | 4 |
| Unit Carton Length (in) | 2 | Unit Carton Weight (lb) | 0.349 |
| Unit Carton Width (in) | 2.75 |
Specs
Input Voltage Range(s)120 VAC, 60 HzNumber Of Circuits1
Operation Mode24 hourResistive20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz
Switch TypeSPSTWiring Option(4) 1/4″ male (2) for load (2) for independent clock motor, Terminals
Resistive Load Ratings Ranges20 A, 120-277 VAC, 60 HzWarranty Period1-Year limited
Captive Trippers48Motor (Three-Phase)1 HP, 16 FLA @ 120 VAC, 60 Hz, 2 HP, 12 FLA @ 240 VAC, 60 Hz
Pilot Duty (NO)360 VA, 120 VAC, 60 Hz, 360 VA, 208 VAC, 60 Hz, 360 VA, 240 VAC, 60 Hz, 360 VA, 277 VAC, 60 HzPilot Duty Load Ratings Ranges360 VA, 120-240 VAC, 60 Hz
Tungsten (NO)1250 W, 125 VAC, 60 HzProduct Depth (in)1.953
Product Depth (mm)49.6Product Height (in)3.333
Product Height (mm)84.6Product Width (in)2.813
Product Width (mm)71.4Unit Carton Height (in)4
Unit Carton Length (in)2Unit Carton Weight (lb)0.349
Unit Carton Width (in)2.75
Dimension
Product Depth (in)1.953
Product Height (in)3.333
Product Width (in)2.813
