Install Manual

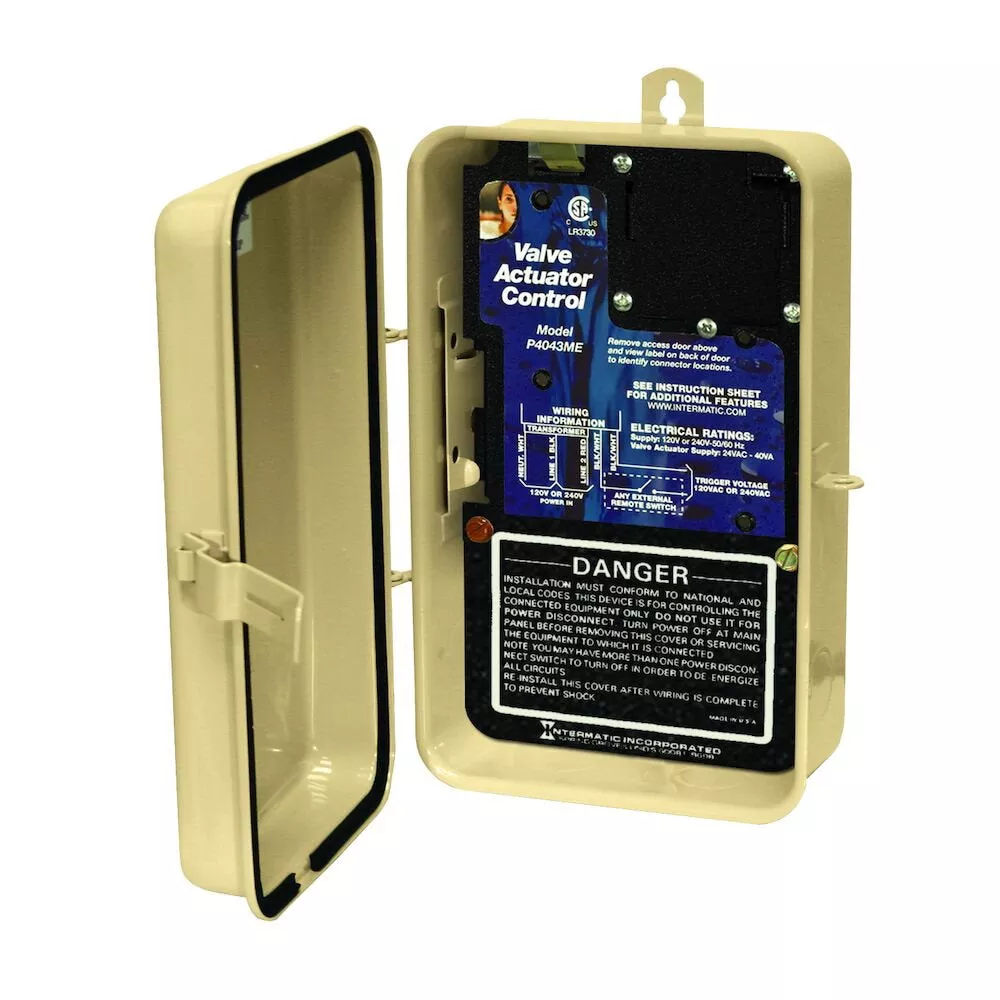

This product is perfect for controlling the direct flow of water to desired Pool and SPA applications. The output controls 24 V electronic valve actuators and the input can be wired to 120 VAC or 240 VAC. It can also be used with a spring-wound timer or simple switch to control fountains or other aquatic features.
Features:
- Easily snaps into most existing Intermatic enclosures with available mechanism support bracket
- Controls up to three valve actuators
- Switches heater thermostat HIGH/LOW
- Remote control capabilities
Applications:
- Motor Control
- Pump Control
Specifications:
| Input Voltage Range(s) | 120/240 VAC, 50/60 Hz | Enclosure Type | Indoor/outdoor type 3R metal |
| Warranty Period | 1-Year limited | Actuator Supply Voltage | 24 VAC, 40 VA |
| Product Depth (in) | 3.623 | Product Depth (mm) | 92.024 |
| Product Height (in) | 10.131 | Product Height (mm) | 257.327 |
| Product Width (in) | 6.513 | Product Width (mm) | 165.43 |
| Unit Carton Height (in) | 10 | Unit Carton Length (in) | 4 |
| Unit Carton Weight (lb) | 2.894 | Unit Carton Width (in) | 7 |
Specs
Input Voltage Range(s)120/240 VAC, 50/60 HzEnclosure TypeIndoor/outdoor type 3R metal
Warranty Period1-Year limitedActuator Supply Voltage24 VAC, 40 VA
Product Depth (in)3.623Product Depth (mm)92.024
Product Height (in)10.131Product Height (mm)257.327
Product Width (in)6.513Product Width (mm)165.43
Unit Carton Height (in)10Unit Carton Length (in)4
Unit Carton Weight (lb)2.894Unit Carton Width (in)7
Dimension
Product Depth (in)3.623
Product Height (in)10.131
Product Width (in)6.513
