Home » Shop » hot sale » Intermatic – PE153P – 24-Hour Electronic Time Control, 3-Circuit, Type 3R Plastic Enclosure

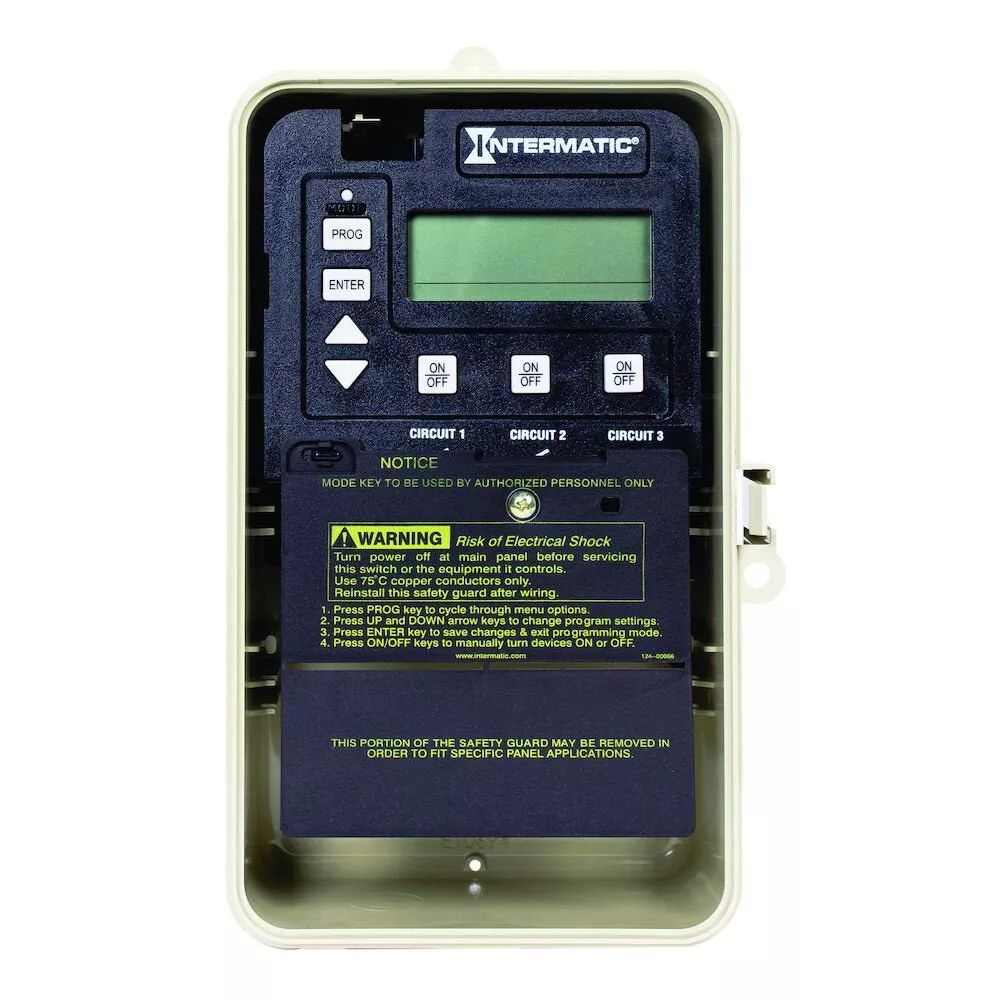

Intermatic – PE153P – 24-Hour Electronic Time Control, 3-Circuit, Type 3R Plastic Enclosure

Original price was: $89.52.Current price is: $67.82.

Sale!
SKU: PE153P Category:
Share

Install Manual

This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule. Controls single- and two-speed pumps and cleaner/booster pumps. Three ON/OFF events per circuit per day.

Features:

  • Controls single- and two-speed pumps and cleaner/booster pumps
  • Three ON/OFF events per circuit per day
  • Seven preprogrammed modes
  • Freeze and heater protection
  • LCD readout
  • Multivoltage input and output
  • Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system

Applications:

  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 120/240 VAC, 50/60 Hz Maximum ON/OFF Operations 3
Number Of Circuits 3 Operation Mode 24 hour
Resistive 17 A, 120 VAC, 50 Hz, 17 A, 120 VAC, 60 Hz, 17 A, 240 VAC, 50 Hz, 17 A, 240 VAC, 60 Hz Switch Type 3-SPST
Enclosure Type Outdoor type 3R plastic Resistive Load Ratings Ranges 17 A, 120/240 VAC, 50/60 Hz
Warranty Period 1-Year limited Motor (Three-Phase) 17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz
Motor Three Phase Ranges 80 LRA @ 120/240 VAC, 50/60 Hz; 17 FLA @ 120/240 VAC, 50/60 Hz Tungsten (NO) 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 240 VAC, 50 Hz, 5 A, 240 VAC, 60 Hz
Tungsten Range(s) 5 A, 120/240 VAC, 50/60 Hz Voltage Selection Type Multi Voltage
Product Depth (in) 3.625 Product Depth (mm) 92
Product Height (in) 9.375 Product Height (mm) 238
Product Width (in) 5.5 Product Width (mm) 140
Unit Carton Height (in) 4.251 Unit Carton Length (in) 11.751
Unit Carton Weight (lb) 2.595 Unit Carton Width (in) 7.251

Specs

Input Voltage Range(s)120/240 VAC, 50/60 HzMaximum ON/OFF Operations3
Number Of Circuits3Operation Mode24 hour
Resistive17 A, 120 VAC, 50 Hz, 17 A, 120 VAC, 60 Hz, 17 A, 240 VAC, 50 Hz, 17 A, 240 VAC, 60 HzSwitch Type3-SPST
Enclosure TypeOutdoor type 3R plasticResistive Load Ratings Ranges17 A, 120/240 VAC, 50/60 Hz
Warranty Period1-Year limitedMotor (Three-Phase)17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz
Motor Three Phase Ranges80 LRA @ 120/240 VAC, 50/60 Hz; 17 FLA @ 120/240 VAC, 50/60 HzTungsten (NO)5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 240 VAC, 50 Hz, 5 A, 240 VAC, 60 Hz
Tungsten Range(s)5 A, 120/240 VAC, 50/60 HzVoltage Selection TypeMulti Voltage
Product Depth (in)3.625Product Depth (mm)92
Product Height (in)9.375Product Height (mm)238
Product Width (in)5.5Product Width (mm)140
Unit Carton Height (in)4.251Unit Carton Length (in)11.751
Unit Carton Weight (lb)2.595Unit Carton Width (in)7.251

Dimension

Product Depth (in)3.625
Product Height (in)9.375
Product Width (in)5.5
