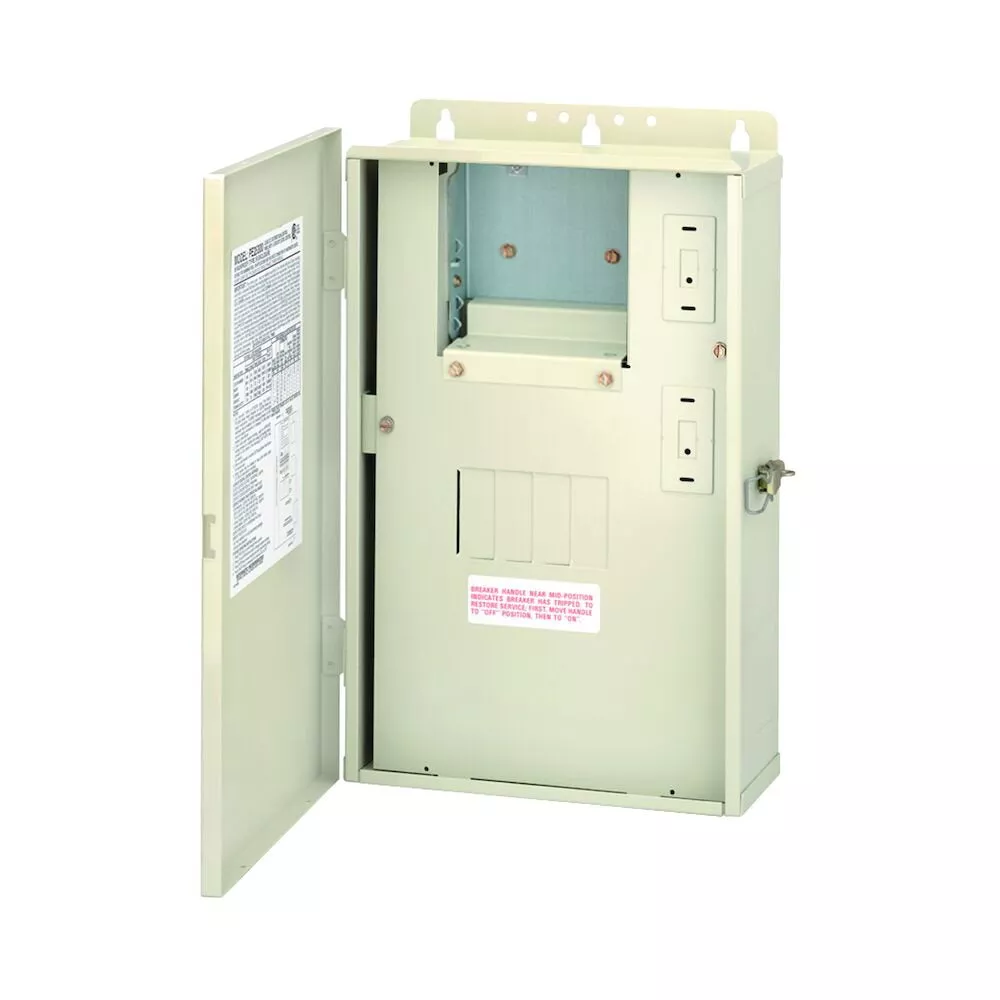

This system can be used as a load center only, or add mechanisms or wiring devices for complete control systems.
Features:
- Four breaker spaces
- 3-SPST mechanism (P1353ME) controls single- and two-speed filter pumps, cleaner/booster pumps and pool/spa landscape lighting
- Load center dead front has two knockouts for switches or GFCIs
- P1353ME and MultiWave® controllers sold separately
- Wiring devices may be installed in these load centers with the use of Standoffs, sold separately
- Also compatible with T100 Series
Applications:
- Distribution/Control Panel
Specifications:
| Warranty Period | 1-Year limited | Product Depth (in) | 4.75 |
| Product Depth (mm) | 120.7 | Product Height (in) | 16.875 |
| Product Height (mm) | 428.6 | Product Width (in) | 10.875 |
| Product Width (mm) | 276.2 | Unit Carton Height (in) | 6.001 |
| Unit Carton Length (in) | 12.251 | Unit Carton Weight (lb) | 14.27 |
| Unit Carton Width (in) | 17.251 |
Specs
Warranty Period1-Year limitedProduct Depth (in)4.75
Product Depth (mm)120.7Product Height (in)16.875
Product Height (mm)428.6Product Width (in)10.875
Product Width (mm)276.2Unit Carton Height (in)6.001
Unit Carton Length (in)12.251Unit Carton Weight (lb)14.27
Unit Carton Width (in)17.251
Dimension
Product Depth (in)4.75
Product Height (in)16.875
Product Width (in)10.875
