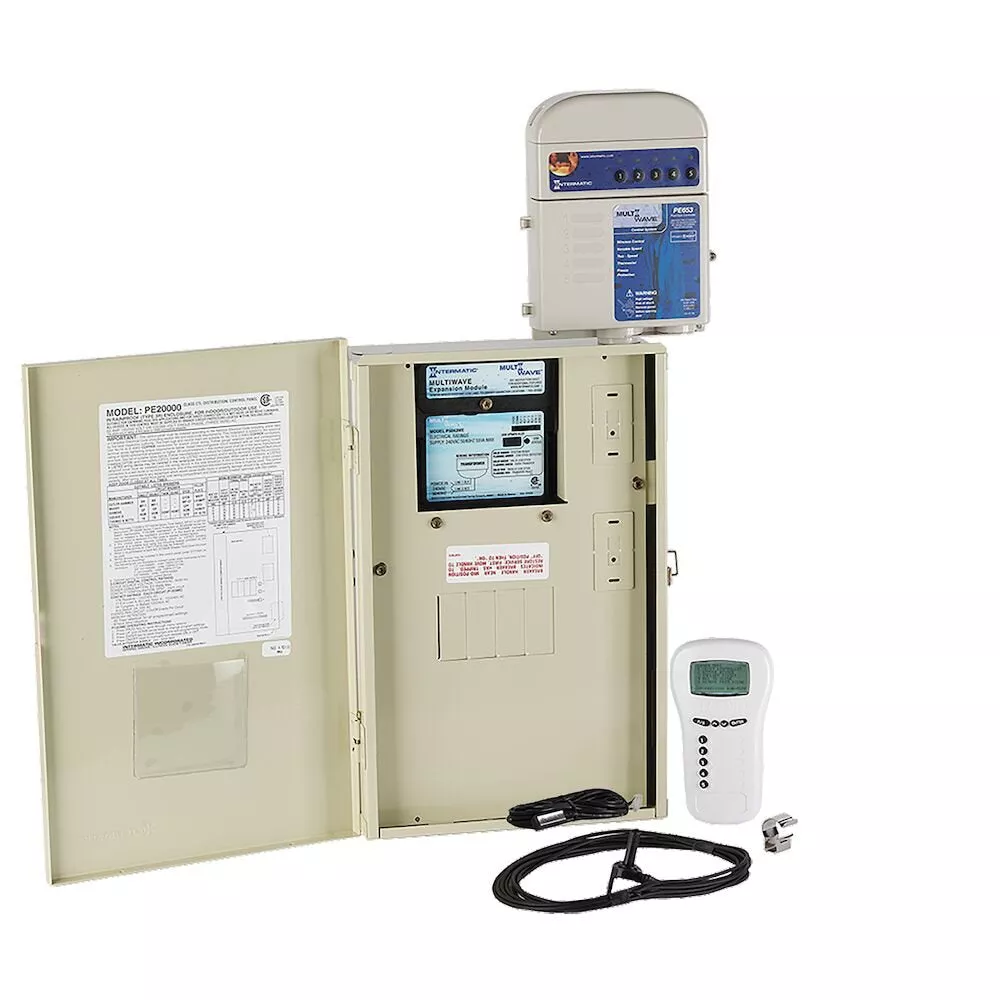

Intermatic – PE25065RC – MultiWave ECS System with 60 A Load Center, Expansion Module

Original price was: $272.82.Current price is: $163.21.

Sale!
SKU: PE25065RC Category:
Share

Install Manual

This system includes the MultiWave Basic and an Expansion Module to control up to four valve actuators, two heaters, most name brand variable speed pumps and solar heating/cooling. The Remote Switch feature provides simple ON/OFF control of several components (i.e., spa heater, spa blower, spa lights) simultaneously with the flip of a single switch.

Features:

  • Four breaker spaces
  • Controls 5 circuits
  • Controls 4 actuator ports (actuators not included), 2 for pool to spa valve rotation, 1 for water feature valve rotation, and 1 for solar applications
  • Controls 2 heater circuits
  • USB port for ease of upgrading firmware
  • Load center dead front has two knockouts for switches and GFCIs
  • Remote switch for simple ON/OFF control of several components at the same time

Applications:

  • Heater Thermostat Control
  • Motor Control
  • Pump Control

Specifications:

Number Of Circuits 5 Resistive 20 A, 120 VAC, 20 A, 240 VAC
Warranty Period 2-Year limited Circuit 1 Motor Display 80 LRA @120/240 VAC; 17 FLA @120/240 VAC
Circuit 1 Resistive Display 20 A Circuit 2 to 5 Motor Display 60 LRA @120/240 VAC; 10 FLA @120/240 VAC
Circuit 2 to 5 Resistive Display 15 A Knockout Dimensions Back (1) combination 3/4″ – 1
Knockout Dimensions Bottom (1) 1 1/8″ diameter hole, (6) combination 1/2″ – 3/4″, (3) combination 3/4″ – 1″ Knockout Dimensions Left (2) combination 1/2″ – 3/4″
Knockout Dimensions Right (1) 1 3/4″ x 2 3/4″ for mounting switches or GFCI Load Center Rating Display 60 A, 120/240 VAC or 120/208 VAC, Single Phase
Load Center Ratings 60 A, 120 VAC, 60 A, 208 VAC, Single Phase, 60 A, 240 VAC Motor (Three-Phase) 17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz
Motor Load Ratings Circuits 2 – 5 10 FLA @ 120 VAC, 50 Hz, 10 FLA @ 120 VAC, 60 Hz, 10 FLA @ 240 VAC, 50 Hz, 10 FLA @ 240 VAC, 60 Hz, 60 LRA @ 120 VAC, 50 Hz, 60 LRA @ 120 VAC, 60 Hz, 60 LRA @ 240 VAC, 50 Hz, 60 LRA @ 240 VAC, 60 Hz Resistive Load Ratings Circuits 2 – 5 15 A, 120 VAC, 15 A, 240 VAC
Tungsten (NO) 5 A Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 16.875
Product Height (mm) 428.6 Product Width (in) 10.875
Product Width (mm) 276.2 Unit Carton Height (in) 18.125
Unit Carton Length (in) 16.625 Unit Carton Weight (lb) 25.1
Unit Carton Width (in) 9.75

Specs

Number Of Circuits5Resistive20 A, 120 VAC, 20 A, 240 VAC
Warranty Period2-Year limitedCircuit 1 Motor Display80 LRA @120/240 VAC; 17 FLA @120/240 VAC
Circuit 1 Resistive Display20 ACircuit 2 to 5 Motor Display60 LRA @120/240 VAC; 10 FLA @120/240 VAC
Circuit 2 to 5 Resistive Display15 AKnockout Dimensions Back(1) combination 3/4″ – 1
Knockout Dimensions Bottom(1) 1 1/8″ diameter hole, (6) combination 1/2″ – 3/4″, (3) combination 3/4″ – 1″Knockout Dimensions Left(2) combination 1/2″ – 3/4″
Knockout Dimensions Right(1) 1 3/4″ x 2 3/4″ for mounting switches or GFCILoad Center Rating Display60 A, 120/240 VAC or 120/208 VAC, Single Phase
Load Center Ratings60 A, 120 VAC, 60 A, 208 VAC, Single Phase, 60 A, 240 VACMotor (Three-Phase)17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz
Motor Load Ratings Circuits 2 – 510 FLA @ 120 VAC, 50 Hz, 10 FLA @ 120 VAC, 60 Hz, 10 FLA @ 240 VAC, 50 Hz, 10 FLA @ 240 VAC, 60 Hz, 60 LRA @ 120 VAC, 50 Hz, 60 LRA @ 120 VAC, 60 Hz, 60 LRA @ 240 VAC, 50 Hz, 60 LRA @ 240 VAC, 60 HzResistive Load Ratings Circuits 2 – 515 A, 120 VAC, 15 A, 240 VAC
Tungsten (NO)5 AProduct Depth (in)4.75
Product Depth (mm)120.7Product Height (in)16.875
Product Height (mm)428.6Product Width (in)10.875
Product Width (mm)276.2Unit Carton Height (in)18.125
Unit Carton Length (in)16.625Unit Carton Weight (lb)25.1
Unit Carton Width (in)9.75

Dimension

Product Depth (in)4.75
Product Height (in)16.875
Product Width (in)10.875
