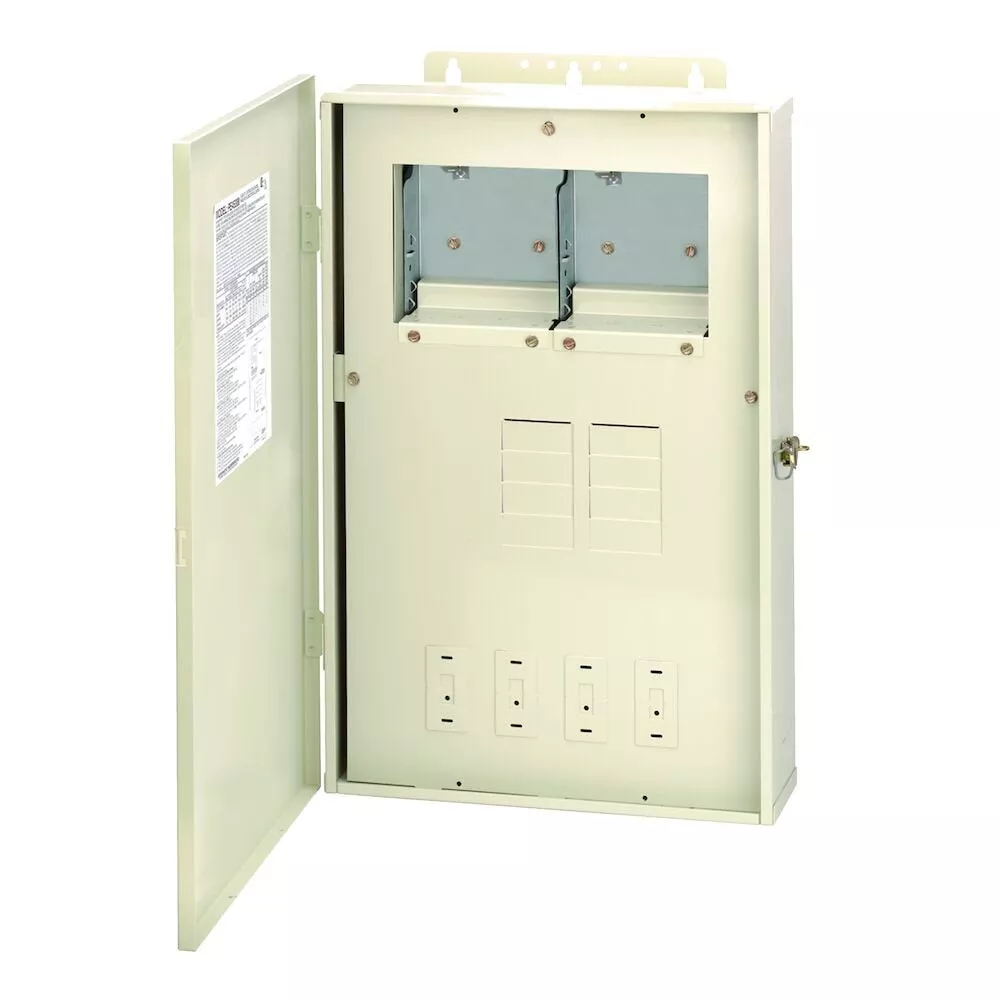

This system can be used as a load center only, or add mechanisms or wiring devices for complete control systems.
Features:
- 80 A 8-position breaker base
- 3-SPST mechanism (P1353ME) controls single and two-speed filter pumps, cleaner/booster pumps, and pool/spa landscape lighting
- P1353ME sold separately
- Load center dead front has four knockouts for switches or GFCIs
- Transformer option provides low voltage for LED lights
- Wiring devices may be installed in these load centers with the use of Standoffs, sold separately
Applications:
- Distribution/Control Panel
Specifications:
| Warranty Period | 1-Year limited | Load Center Ratings | 80 A, 120 VAC, 50 Hz, 80 A, 120 VAC, 60 Hz, 80 A, 240 VAC, 50 Hz, 80 A, 240 VAC, 60 Hz, Single Phase |
| Product Depth (in) | 4.75 | Product Depth (mm) | 120.7 |
| Product Height (in) | 22.875 | Product Height (mm) | 581 |
| Product Width (in) | 14.875 | Product Width (mm) | 377.8 |
| Unit Carton Height (in) | 5.509 | Unit Carton Length (in) | 23.509 |
| Unit Carton Weight (lb) | 24.21 | Unit Carton Width (in) | 16.009 |
Specs
Warranty Period1-Year limitedLoad Center Ratings80 A, 120 VAC, 50 Hz, 80 A, 120 VAC, 60 Hz, 80 A, 240 VAC, 50 Hz, 80 A, 240 VAC, 60 Hz, Single Phase
Product Depth (in)4.75Product Depth (mm)120.7
Product Height (in)22.875Product Height (mm)581
Product Width (in)14.875Product Width (mm)377.8
Unit Carton Height (in)5.509Unit Carton Length (in)23.509
Unit Carton Weight (lb)24.21Unit Carton Width (in)16.009
Dimension
Product Depth (in)4.75
Product Height (in)22.875
Product Width (in)14.875
