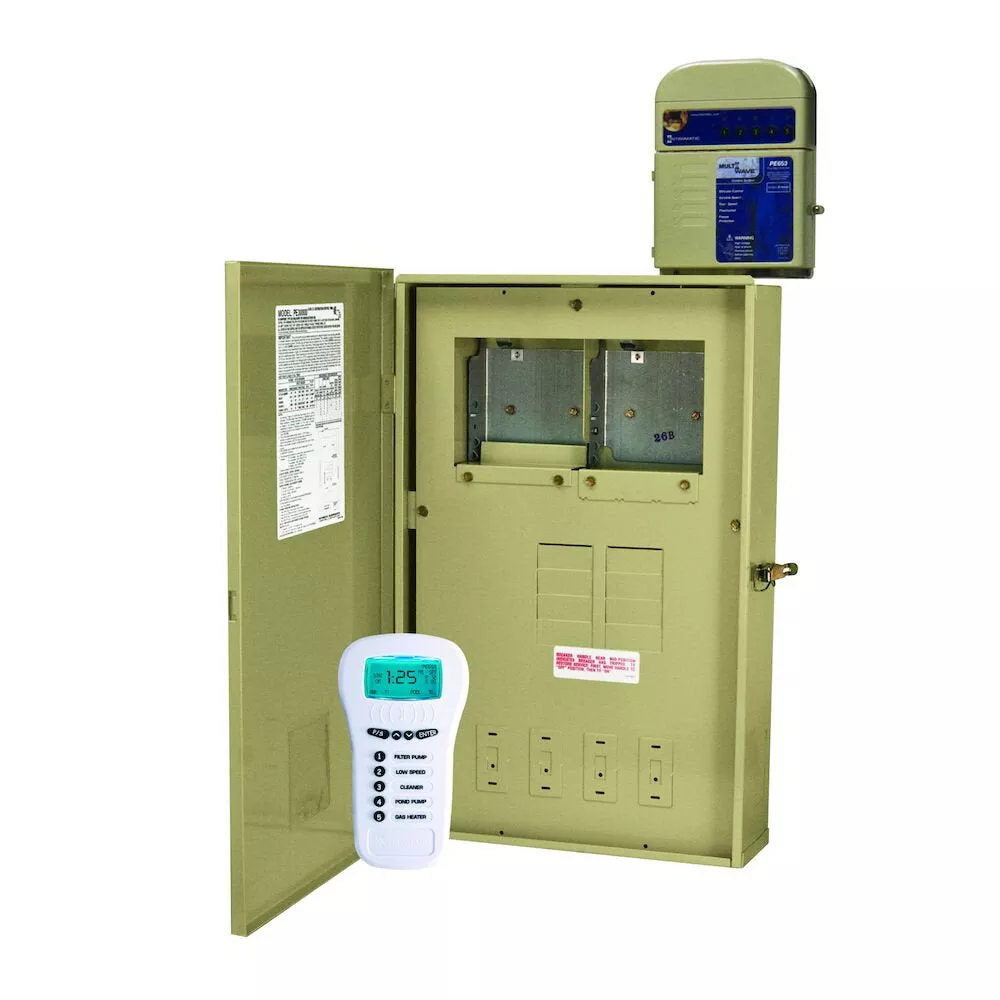

A wireless electronic controller for pool or spa automation. Retrofit existing mechanical timers or install with new construction. Has an 80 A load center.
Features:
- Eight breaker spaces
- Controls 5 circuits
- Controls pumps, lights, cleaners and heaters
- Operates single, two and Pentair® IntelliFlo® and IntelliPro® variable-speed pumps
- 24-hour timing with 3 ON/OFF events per circuit
- Includes receiver, wireless remote, water and air temperature sensors, (3) AA batteries, equipment labels, flathead screwdriver, raintight enclosure, raintight cap and mount for remote mounting antenna
- See MultiWave ECS and ECS Plus Systems for additional control options
- Type 3R indoor/outdoor metal load center
- Four knockouts for GFCIs and switches
Applications:
- Heater Thermostat Control
- Motor Control
- Pump Control
Specifications:
| Number Of Circuits | 5 | Resistive | 20 A, 120 VAC, 20 A, 240 VAC |
| Warranty Period | 2-Year limited | Circuit 1 Motor Display | 80 LRA @120/240 VAC; 17 FLA @120/240 VAC |
| Circuit 1 Resistive Display | 20 A | Circuit 2 to 5 Motor Display | 60 LRA @120/240 VAC; 10 FLA @120/240 VAC |
| Circuit 2 to 5 Resistive Display | 15 A | Knockout Dimensions Back | (4) combination 1/2″ – 3/4″, and (2) combination 3/4″ – 1″ |
| Knockout Dimensions Bottom | (1) 1 1/8″ diameter hole, (6) combination 1/2″ – 3/4″, (4) 1/2″, (2) combination 1 1/8″ – 1 3/8″ – 1 11/16″ | Knockout Dimensions Left | (2) combination 1/2″ – 3/4″ |
| Knockout Dimensions Right | (1) 1 3/4″ x 2 3/4″ for mounting switches or GFCI | Load Center Rating Display | 80 A, 120/240 VAC or 120/208 VAC, Single Phase |
| Load Center Ratings | 80 A, 120 VAC, 80 A, 208 VAC, Single Phase, 80 A, 240 VAC | Motor (Three-Phase) | 17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz |
| Motor Load Ratings Circuits 2 – 5 | 10 FLA @ 120 VAC, 50 Hz, 10 FLA @ 120 VAC, 60 Hz, 10 FLA @ 240 VAC, 50 Hz, 10 FLA @ 240 VAC, 60 Hz, 60 LRA @ 120 VAC, 50 Hz, 60 LRA @ 120 VAC, 60 Hz, 60 LRA @ 240 VAC, 50 Hz, 60 LRA @ 240 VAC, 60 Hz | Resistive Load Ratings Circuits 2 – 5 | 15 A, 120 VAC, 15 A, 240 VAC |
| Transformer Input Voltage | 120 VAC, 60 Hz | Transformer Output Voltage | 12, 13, 14 VAC |
| Tungsten (NO) | 5 A | Product Depth (in) | 4.75 |
| Product Depth (mm) | 120.7 | Product Height (in) | 22.875 |
| Product Height (mm) | 581 | Product Width (in) | 14.875 |
| Product Width (mm) | 377.8 | Unit Carton Height (in) | 13.5 |
| Unit Carton Length (in) | 26.75 | Unit Carton Weight (lb) | 33.55 |
| Unit Carton Width (in) | 19 |
Specs
Number Of Circuits5Resistive20 A, 120 VAC, 20 A, 240 VAC
Warranty Period2-Year limitedCircuit 1 Motor Display80 LRA @120/240 VAC; 17 FLA @120/240 VAC
Circuit 1 Resistive Display20 ACircuit 2 to 5 Motor Display60 LRA @120/240 VAC; 10 FLA @120/240 VAC
Circuit 2 to 5 Resistive Display15 AKnockout Dimensions Back(4) combination 1/2″ – 3/4″, and (2) combination 3/4″ – 1″
Knockout Dimensions Bottom(1) 1 1/8″ diameter hole, (6) combination 1/2″ – 3/4″, (4) 1/2″, (2) combination 1 1/8″ – 1 3/8″ – 1 11/16″Knockout Dimensions Left(2) combination 1/2″ – 3/4″
Knockout Dimensions Right(1) 1 3/4″ x 2 3/4″ for mounting switches or GFCILoad Center Rating Display80 A, 120/240 VAC or 120/208 VAC, Single Phase
Load Center Ratings80 A, 120 VAC, 80 A, 208 VAC, Single Phase, 80 A, 240 VACMotor (Three-Phase)17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz
Motor Load Ratings Circuits 2 – 510 FLA @ 120 VAC, 50 Hz, 10 FLA @ 120 VAC, 60 Hz, 10 FLA @ 240 VAC, 50 Hz, 10 FLA @ 240 VAC, 60 Hz, 60 LRA @ 120 VAC, 50 Hz, 60 LRA @ 120 VAC, 60 Hz, 60 LRA @ 240 VAC, 50 Hz, 60 LRA @ 240 VAC, 60 HzResistive Load Ratings Circuits 2 – 515 A, 120 VAC, 15 A, 240 VAC
Transformer Input Voltage120 VAC, 60 HzTransformer Output Voltage12, 13, 14 VAC
Tungsten (NO)5 AProduct Depth (in)4.75
Product Depth (mm)120.7Product Height (in)22.875
Product Height (mm)581Product Width (in)14.875
Product Width (mm)377.8Unit Carton Height (in)13.5
Unit Carton Length (in)26.75Unit Carton Weight (lb)33.55
Unit Carton Width (in)19
Dimension
Product Depth (in)4.75
Product Height (in)22.875
Product Width (in)14.875
