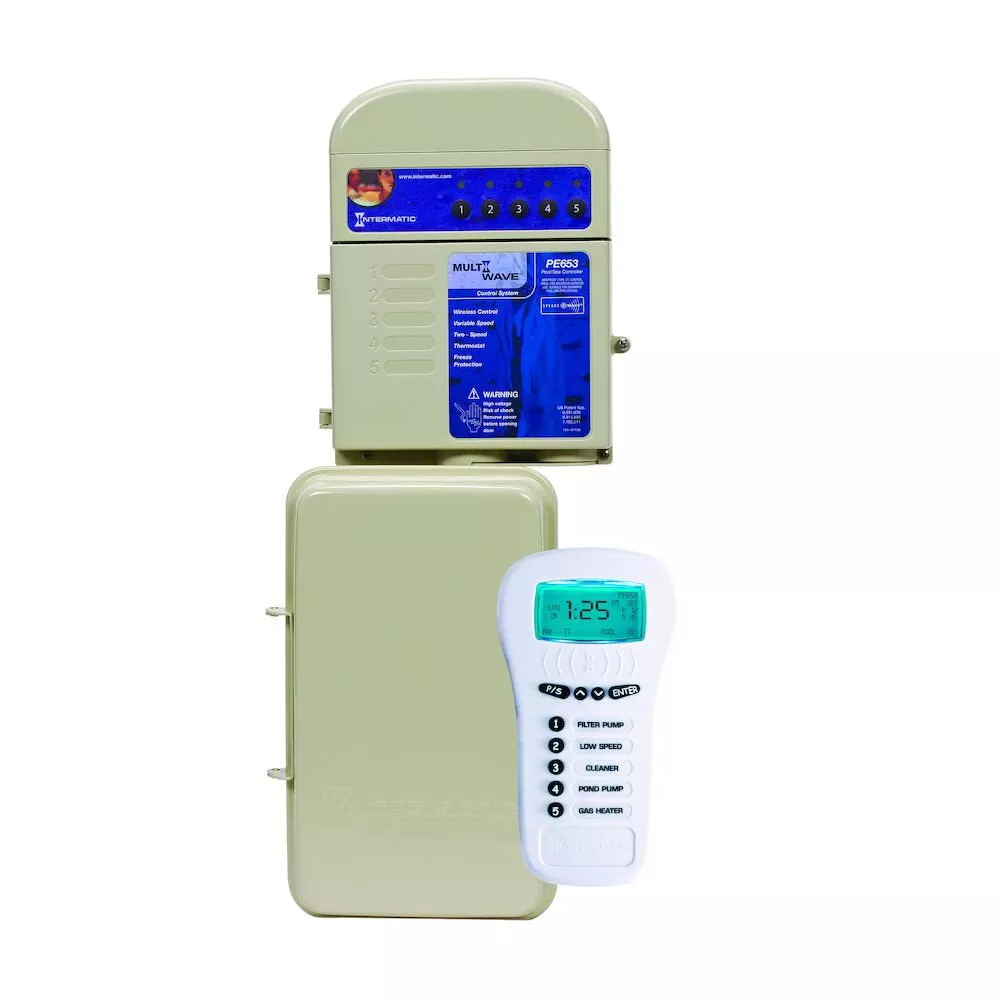

A wireless electronic controller for pool or spa automation. Retrofit existing mechanical timers or install with new construction. Integrates with home automation software that utilizes Z-Wave wireless technology.
Features:
- Controls 5 circuits
- Controls pumps, lights, cleaners and heaters
- Operates single, two and Pentair® IntelliFlo® and IntelliPro® variable-speed pumps
- 24-hour timing with 3 ON/OFF events per circuit
- Includes receiver, wireless remote, water and air temperature sensors, (3) AA batteries, equipment labels, flathead screwdriver, raintight enclosure, raintight cap and mount for remote mounting antenna
- Type 3R metal indoor/outdoor enclosure
- See MultiWave ECS and ECS Plus Systems for additional control options
Applications:
- Heater Thermostat Control
- Motor Control
- Pump Control
Specifications:
| Number Of Circuits | 5 | Resistive | 20 A, 120 VAC, 20 A, 240 VAC |
| Maximum Power Consumption (W) | 5 W | Warranty Period | 2-Year limited |
| Circuit 1 Motor Display | 80 LRA @120/240 VAC; 17 FLA @120/240 VAC | Circuit 1 Resistive Display | 20 A |
| Circuit 2 to 5 Motor Display | 60 LRA @120/240 VAC; 10 FLA @120/240 VAC | Circuit 2 to 5 Resistive Display | 15 A |
| Knockout Dimensions Back | (1) combination 1/2″ – 3/4″ | Knockout Dimensions Bottom | (2) combination 1/2″ – 3/4″ |
| Knockout Dimensions Left | (1) combination 1/2″ – 3/4″ | Knockout Dimensions Right | (1) combination 1/2″ – 3/4″ |
| Motor (Three-Phase) | 17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz | Motor Load Ratings Circuits 2 – 5 | 10 FLA @ 120 VAC, 50 Hz, 10 FLA @ 120 VAC, 60 Hz, 10 FLA @ 240 VAC, 50 Hz, 10 FLA @ 240 VAC, 60 Hz, 60 LRA @ 120 VAC, 50 Hz, 60 LRA @ 120 VAC, 60 Hz, 60 LRA @ 240 VAC, 50 Hz, 60 LRA @ 240 VAC, 60 Hz |
| Resistive Load Ratings Circuits 2 – 5 | 15 A, 120 VAC, 15 A, 240 VAC | Tungsten (NO) | 5 A |
| Product Depth (in) | 3.75 | Product Depth (mm) | 95.3 |
| Product Height (in) | 9.375 | Product Height (mm) | 238.1 |
| Product Width (in) | 5.5 | Product Width (mm) | 139.7 |
| Unit Carton Height (in) | 18 | Unit Carton Length (in) | 9.312 |
| Unit Carton Weight (lb) | 6.087 | Unit Carton Width (in) | 4.188 |
Specs
Number Of Circuits5Resistive20 A, 120 VAC, 20 A, 240 VAC
Maximum Power Consumption (W)5 WWarranty Period2-Year limited
Circuit 1 Motor Display80 LRA @120/240 VAC; 17 FLA @120/240 VACCircuit 1 Resistive Display20 A
Circuit 2 to 5 Motor Display60 LRA @120/240 VAC; 10 FLA @120/240 VACCircuit 2 to 5 Resistive Display15 A
Knockout Dimensions Back(1) combination 1/2″ – 3/4″Knockout Dimensions Bottom(2) combination 1/2″ – 3/4″
Knockout Dimensions Left(1) combination 1/2″ – 3/4″Knockout Dimensions Right(1) combination 1/2″ – 3/4″
Motor (Three-Phase)17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 HzMotor Load Ratings Circuits 2 – 510 FLA @ 120 VAC, 50 Hz, 10 FLA @ 120 VAC, 60 Hz, 10 FLA @ 240 VAC, 50 Hz, 10 FLA @ 240 VAC, 60 Hz, 60 LRA @ 120 VAC, 50 Hz, 60 LRA @ 120 VAC, 60 Hz, 60 LRA @ 240 VAC, 50 Hz, 60 LRA @ 240 VAC, 60 Hz
Resistive Load Ratings Circuits 2 – 515 A, 120 VAC, 15 A, 240 VACTungsten (NO)5 A
Product Depth (in)3.75Product Depth (mm)95.3
Product Height (in)9.375Product Height (mm)238.1
Product Width (in)5.5Product Width (mm)139.7
Unit Carton Height (in)18Unit Carton Length (in)9.312
Unit Carton Weight (lb)6.087Unit Carton Width (in)4.188
Dimension
Product Depth (in)3.75
Product Height (in)9.375
Product Width (in)5.5
